great water ph sensor supplier for water level monitoring

Great water ph sensor supplier for water level monitoring

Model:
RK 500-06
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

PRODUCT DESCRIPTION

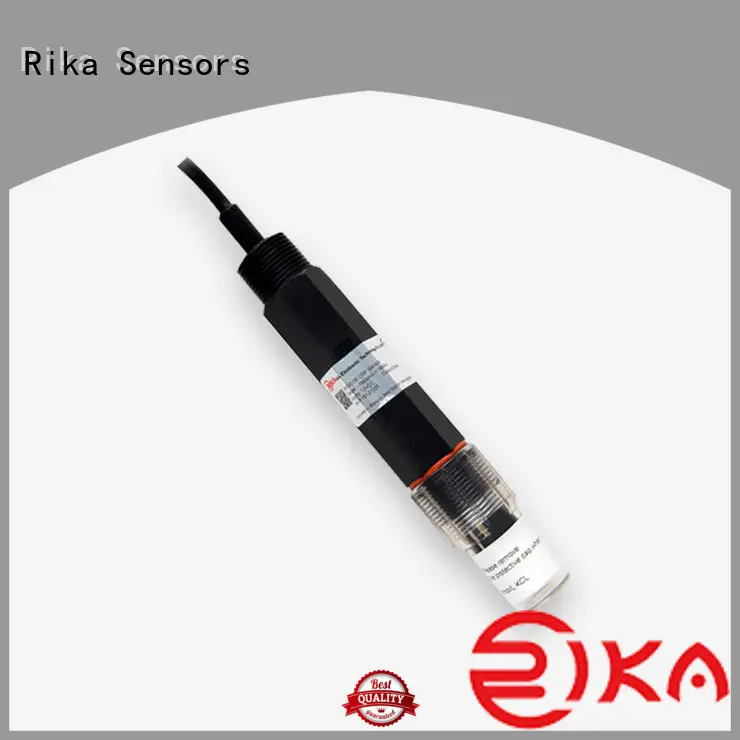

RK500-06 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.

great water ph sensor supplier for water level monitoring-1

SPECIFICATIONS

Item

Technical Specification

ORP

Temperature(only for RS485)

Measurement Principle

Electrochemical(platinum ring)

Thermal resistance

Range

-1500mV-+1500mV

0-80℃

Resolution

0.1mV

0.1℃

Accuracy

±0.5mV

±0.5℃

Supply

7-30VDC

Response time

5s

Output

4-20mA & RS485 at the same time

Operating Environment

-10-+80℃(<0.6MPa)

Stability

≤1%/year

Maintenance

Every 1 months to clean the electrode, every 6 months calibrated

Power consumption

<0.4W

Ingress Protection

IP68

Storage

10-60℃@20%-90%RH

Cable length

5m default, customizable

DIMENSION

ELECTRODE MAINTENANCE & INSTALLATION AND FIXED

PH electrode is not used at ordinary times and can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water and deionize the water or tap water with minimal plasma content.If the PH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l Hcl or NaOH solution for a few minutes and then washed with distilled water. If the PH electrode is contaminated with organic substances, it can be cleaned with alcohol or acetone and then cleaned with distilled water.(note: the protective cap before the electrode should be removed when using);

Clean the electrode with tap water every 3 months or 6 months according to the working environment.

Mounting bracket(length=1m) is optional

PRODUCT DETAILS

great water ph sensor supplier for water level monitoring-16

great water ph sensor supplier for water level monitoring-17Product Principle & Material

great water ph sensor supplier for water level monitoring-18

great water ph sensor supplier for water level monitoring-19 Product Features

PRODUCT APPLICATION



Hunan Rika Electronic Tech Co.,Ltd Have a professional team, concentrate on the quality management of materials, and strictly control the quality of water ph sensor from the source, not only that, water ph sensor After the production is completed, the quality inspection team specially established by the company will conduct inspections , to ensure its high quality and excellent quality.
Hunan Rika Electronic Tech Co.,Ltd Passed various relevant national certifications, water ph sensor produced have relevant quality inspection certificates, the quality of the products is guaranteed, and customers are more assured in purchasing.
After years of industry exploration, Hunan Rika Electronic Tech Co.,Ltd has not only accumulated rich production experience, but also mastered advanced production technology, which can realize water ph sensor good and fast production, and all water ph sensor have undergone strict quality inspections and meet national standards Quality inspection standards, quality is trustworthy.
Hunan Rika Electronic Tech Co.,Ltd There is a product research and development department with professional design talents. The structural design of each part of water ph sensor is more independent and creative. The designed product has a novel appearance and is equipped with exquisite workmanship. Carved and portrayed carefully in both places and as a whole, the final finished product is of high quality and extraordinary quality.
Hunan Rika Electronic Tech Co.,Ltd Standardized production is carried out in strict accordance with national standards, and the products are strictly tested with almost harsh quality control standards and inspection methods to ensure that the produced water ph sensor are qualified products with reliable quality.
Hunan Rika Electronic Tech Co.,Ltd According to the actual development needs of the enterprise, an effective cost control system has been established. Not only has a reasonable budget been formulated for each link of product production, but also adhere to regular monitoring and inspection of the production status of the product, and timely correction of problems found. The production cost is fundamentally controlled, so that the produced water ph sensor has a more prominent price advantage compared with similar products.
