great water quality monitoring equipment factory for temperature monitoring

Great water quality monitoring equipment factory for temperature monitoring

Model:
RK 500-06
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Details
Rika Sensors pursues excellent quality and strives for perfection in every detail during the production.Rika Sensors carefully selects quality raw materials. Production cost and product quality will be strictly controlled. This enables us to produce environmental monitoring which is more competitive than other products in the industry. It has advantages in internal performance, price, and quality.

PRODUCT DESCRIPTION

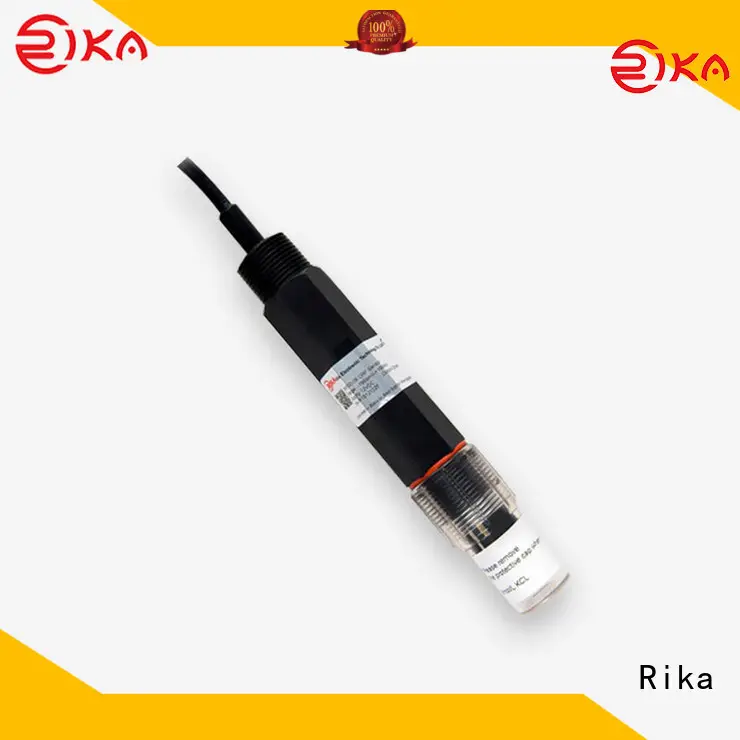

RK500-06 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.

great water quality monitoring equipment factory for temperature monitoring-1

SPECIFICATIONS

Item

Technical Specification

ORP

Temperature(only for RS485)

Measurement Principle

Electrochemical(platinum ring)

Thermal resistance

Range

-1500mV-+1500mV

0-80℃

Resolution

0.1mV

0.1℃

Accuracy

±0.5mV

±0.5℃

Supply

7-30VDC

Response time

5s

Output

4-20mA & RS485 at the same time

Operating Environment

-10-+80℃(<0.6MPa)

Stability

≤1%/year

Maintenance

Every 1 months to clean the electrode, every 6 months calibrated

Power consumption

<0.4W

Ingress Protection

IP68

Storage

10-60℃@20%-90%RH

Cable length

5m default, customizable

DIMENSION

ELECTRODE MAINTENANCE & INSTALLATION AND FIXED

PH electrode is not used at ordinary times and can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water and deionize the water or tap water with minimal plasma content.If the PH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l Hcl or NaOH solution for a few minutes and then washed with distilled water. If the PH electrode is contaminated with organic substances, it can be cleaned with alcohol or acetone and then cleaned with distilled water.(note: the protective cap before the electrode should be removed when using);

Clean the electrode with tap water every 3 months or 6 months according to the working environment.

Mounting bracket(length=1m) is optional

PRODUCT DETAILS

great water quality monitoring equipment factory for temperature monitoring-16

great water quality monitoring equipment factory for temperature monitoring-17Product Principle & Material

great water quality monitoring equipment factory for temperature monitoring-18

great water quality monitoring equipment factory for temperature monitoring-19 Product Features

PRODUCT APPLICATION



Rika Sensors water quality monitoring equipment is carefully designed by considering many factors. For example, part tolerances, size limitations, materials performance, and operational efficiency factors have been taken into considerations.
The development of Rika Sensors water quality monitoring equipment has taken different factors into consideration. They are mainly structure fabrication, mechanical parts stability, welding quality, and the whole machine efficiency.
Rika Sensors water quality monitoring equipment is carefully designed. It has been carried out by our designers who keep some important factors in mind, including wear resistance, toughness, friction force, vibrations, reliability, and fatigue.
The manufacturing process of Rika Sensors water quality monitoring equipment is of importance. The process covers mechanical structure fabrication, structure cutting, welding, coating, and parts assembly.
Rika Sensors water quality monitoring equipment undergoes a set of production processes. Its mechanical parts will be welded, stamped, burr removed and tested under pressure and temperature.
This product has great strength. The materials used for has the strength to resist externally applied loads without breaking or yielding.
