New Water Ph Sensor for Research and Laboratory Use
Product details of the water ph sensor
Quick Overview
water ph sensor has different kinds of shapes. The product has a great market prospect, great potential and with large market share. The water ph sensor produced by Rika Sensor is very popular in the market and is widely used in industry. The product achieves good results in practical applications.
Product Description
Rika Sensor's water ph sensor is processed based on advanced technology. It has excellent performances in the following details.
PRODUCT DESCRIPTION

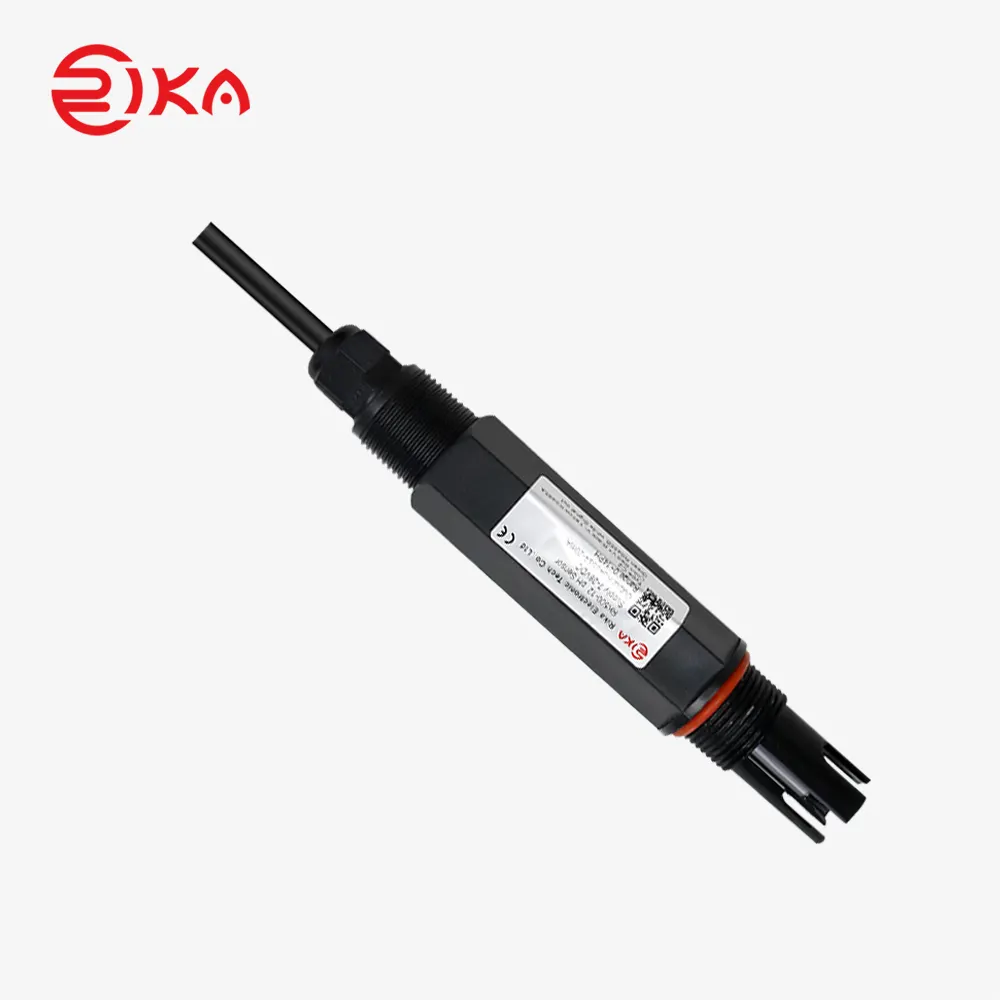

The RK500-12 C3 pH Sensor, a dedicated model developed for high-temperature environments, operates stably at temperatures exceeding 80℃ with an upper operating temperature limit of 100℃. It can withstand a working pressure of 1MPa, effortlessly coping with extreme monitoring scenarios such as high-temperature industrial processes and high-temperature wastewater treatment. Constructed with a high-quality Glass+ABS material combination, it not only exhibits excellent high-temperature stability but also possesses superior hydrolysis resistance and corrosion resistance, effectively eliminating alkali errors and ensuring long-term reliable operation in high-temperature complex liquid environments.
SPECIFICATIONS
Technical Parameter | |
Type | C3 |
Material | Glass+PPS |
Operation temperature | 0-100℃ |
Working pressure | 1MPa |
Response time | 10 seconds (98% flowing liquid) |
Electrical connection | Direct cable |
Application | High tempera-ture occasions, etc |
Thread | Upper: NPT3/4 thread,Lower: NPT3/4 thread |
Range | 0-14pH |
Resolution | 0.01pH |
Accuracy | 0.01pH |
Temperature compensation | Thermal resistance |
Power supply | 7-30VDC(< 0.15W) |
Output | RS485 & 4-20mA |
Dimensions | Φ31.0 x 180.0 |
Ingress protection | IP68 |
PRODUCT DETAILS
pH Scale
pH value | Description |
<4.5 | Strongly acidity |
4.5-5.5 | Acidity |
5.5-6.5 | Faintly acidity |
6.5-7.5 | Neutral |
7.5-8.5 | Faintly alkalinity |
8.5-9.5 | Alkalinity |
>9.5 | Strongly alkalinity |
Electrode Maintenance
When the probe is not in use, it can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water, deionized water, or tap water with very low ion content. If the pH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l HCl or sodium hydroxide solution for a few minutes, and then rinsed with distilled water.If the pH electrode is contaminated with organic matter, it can be cleaned with alcohol or acetone, and then rinsed with distilled water. (Note: When using, remove the protective cap in front of the electrode)
According to the work environment, clean the electrodes with tap water every 3 or 6 months.
Installation & Fixed
Installation bracket (Iength=1m) NPT3/4 installation thread is optional
