PRODUCT DESCRIPTION

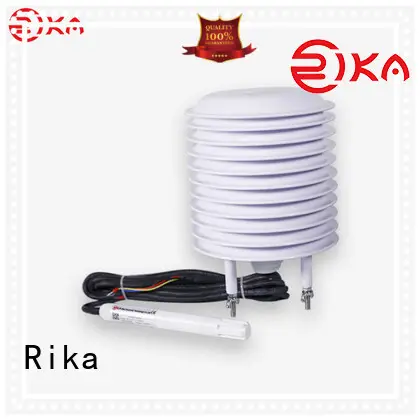

RK330-01 Atmospheric Temperature, Humidity & Pressure Sensor is a professional measurement of air temperature, relative humidity & barometric pressure. Sensors are built-in the water-proof and anti-UV shelter. It is widely used in agriculture, forestry, meteorology as well as a climate chamber, warehousing and other places.This model also can be equipped with 11 plates radiation shield(RK95-01) to protect the sensors from solar radiation and rain.

perfect temperature humidity sensor factory for atmospheric environmental quality monitoring-1

perfect temperature humidity sensor factory for atmospheric environmental quality monitoring-2

High sensitivity.

perfect temperature humidity sensor factory for atmospheric environmental quality monitoring-3

LCD display optional.

perfect temperature humidity sensor factory for atmospheric environmental quality monitoring-4

Temperature compensation.

perfect temperature humidity sensor factory for atmospheric environmental quality monitoring-5

Fast response.

perfect temperature humidity sensor factory for atmospheric environmental quality monitoring-6

Multiple signal output options.

perfect temperature humidity sensor factory for atmospheric environmental quality monitoring-7

Excellent stability.

SPECIFICATIONS

Item	SPECIFICATIONS
	Temperature	Humidity	Pressure
Range	-40-60℃	0-100%RH	10-110kPa(100-1100hPa)
Resolution	0.1℃	0.5%RH	0.1hPa
Accuracy	±0.5℃	±3%RH	±1hPa
Supply	5VDC, 12-24VDC
Output Signal	4-20mA,0-5V,0-10V,RS485(MODBUS),IIC
Current Consumption	<20mA
Operating Temperature	-40℃-+80℃
Ingress Protection	IP65
Storage	10-60℃@20%-90%RH
Weight(unpacked)	120g
Probe material	ABS
Radiation Shield(optional)	RK95-01,11 plates

* Analog output only is proper for one or two measurement parameters.

DIMENSION & MOUNTING

Unit:mm

perfect temperature humidity sensor factory for atmospheric environmental quality monitoring-8

perfect temperature humidity sensor factory for atmospheric environmental quality monitoring-9

MOUNTING

1. Install the product in stable environment area, avoid direct sunlight, away from windows air-conditioning, heating and other equipment. Otherwise it will cause measurement inaccuracies.
2.Fixing rail is optional.
3.If you use indoor, recommends clamp to install, as shown on the right picture.

PRODUCT DETAILS

PRODUCT APPLICATION

perfect temperature humidity sensor factory for atmospheric environmental quality monitoring-11

Schoolyard Weather Station

perfect temperature humidity sensor factory for atmospheric environmental quality monitoring-18

Solar radiation monitoring station
