PRODUCT DESCRIPTION

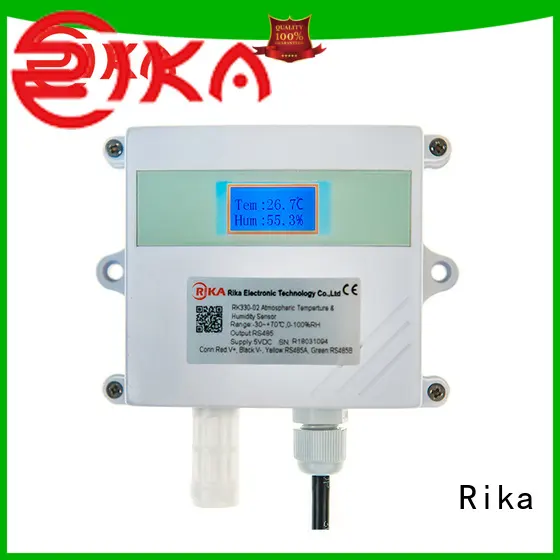

RK330-02 Atmospheric Temperature & Humidity Sensor is a professional measurement of air temperature and relative humidity . Sensor element is digital temperature and humidity IC.Sensors are built-in the water-proof and anti-UV shelter. It is widely used in agriculture, forestry, meteorology as well as a climate chamber, warehousing and other places.

perfect temperature humidity sensor supplier for air quality monitoring-1

perfect temperature humidity sensor supplier for air quality monitoring-2

LCD display optional.

perfect temperature humidity sensor supplier for air quality monitoring-3

Temperature compensation.

perfect temperature humidity sensor supplier for air quality monitoring-4

Multiple signal output options.

perfect temperature humidity sensor supplier for air quality monitoring-5

Fast response.

perfect temperature humidity sensor supplier for air quality monitoring-6

Excellent stability.

perfect temperature humidity sensor supplier for air quality monitoring-7

High sensitivity.

SPECIFICATIONS

Item	Technical Specification
	Temperature	Humidity
Range	-30-+70℃,0-50℃	0-100%RH
Accuracy	±0.3℃@25℃	±3%RH(10%-90%)
Repeatability	±0.1℃	±0.1%RH
Long-term Stability	<0.04℃/year	<0.5%RH/year
Response Time	<1s
Supply	5VDC, 12-24VDC
Output Signal	4-20mA,0-5V,RS485 MODBUS(RTU)
Display(universal)	LCD is optional
Current Consumption	<20mA
Operating Temperature	-40℃-+70℃
Ingress Protection	IP65
Storage	10-60℃@20%-90%RH
Weight(unpacked)	170g
Dimension	1178641mm
Shelter material	ABS

PRODUCT DETAILS

perfect temperature humidity sensor supplier for air quality monitoring-8

perfect temperature humidity sensor supplier for air quality monitoring-9 Product Principle

perfect temperature humidity sensor supplier for air quality monitoring-10

perfect temperature humidity sensor supplier for air quality monitoring-11 Product Material

perfect temperature humidity sensor supplier for air quality monitoring-12

perfect temperature humidity sensor supplier for air quality monitoring-13 Multiple Output Optional

perfect temperature humidity sensor supplier for air quality monitoring-14

perfect temperature humidity sensor supplier for air quality monitoring-15 Product Installation

PRODUCT APPLICATION

perfect temperature humidity sensor supplier for air quality monitoring-16

Schoolyard Weather Station

perfect temperature humidity sensor supplier for air quality monitoring-21

Forestry

perfect temperature humidity sensor supplier for air quality monitoring-22

Solar radiation monitoring station

perfect temperature humidity sensor supplier for air quality monitoring-23

Factory
