perfect ultrasonic wind sensor solution provider for industrial applications

Latest products

RK130-02 Multi-Purpose Anemometer

RK100-01B Wind Speed Sensor

RK330-01B Relative HumIdity Sensor

RK330-01B Atmospheric Temperature Sensor

Product Information
Feedback

Product Details

We are confident about the exquisite details of environmental monitoring.environmental monitoring has the following advantages: well-chosen materials, reasonable design, stable performance, excellent quality, and affordable price. Such a product is up to the market demand.

Product Comparison

Rika Sensors's weather sensors is commonly praised in the market due to good materials, fine workmanship, reliable quality, and favorable price.Compared with other products in the same category, weather sensors produced by Rika Sensors has the following advantages.

PRODUCT DESCRIPTION

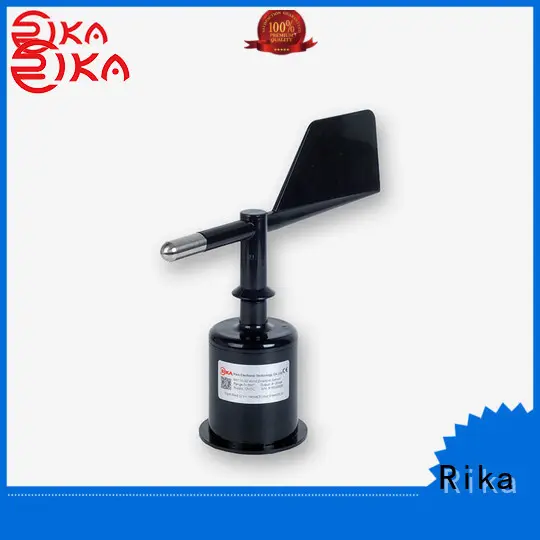

The RK110-02 wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction. High precision magnetic sensitive chips are built in the housing shell. The wind vane is constructed on low inertia light metal to show wind directions. The product is wide range, good linearity, strong anti- lightning strike, good performance.

perfect ultrasonic wind sensor solution provider for industrial applications-1

perfect ultrasonic wind sensor solution provider for industrial applications-2

Low starting threshold.

perfect ultrasonic wind sensor solution provider for industrial applications-3

Overall carbon fiber material.

perfect ultrasonic wind sensor solution provider for industrial applications-4

Strong corrosion resistant ability.

perfect ultrasonic wind sensor solution provider for industrial applications-5

Light structure.

perfect ultrasonic wind sensor solution provider for industrial applications-6

Various output signals optional.

perfect ultrasonic wind sensor solution provider for industrial applications-7

Easy Installation.

SPECIFICATIONS

Output	4-20mA	0-5V	RS485
Supply Voltage	5V,12V-24V	5V,12V,24V	5V,12V-24V
Load Capacity	<500Ω(typ 250Ω)	>1kΩ
Range	0~360°
Accuracy	±3°
Resolution	1°
Starting Threshold	<0.5m/s
Limit wind speed	50m/s
Ingress Protection	IP65
Operating Temperature	-40℃~+50℃
Cable Grade	Nominal voltage: 300V, Temperature grade: 80℃
Weight(unpacked)	195g
Dimension	Turning Radius:147mm,Height:199mm
Main material	Carbon fiber
Storage Condition	10℃-50℃@20%-90%RH

DIMENSION & MOUNTING

Flange mounted:

fix the four screws on the bracket and keep the product horizontal. There is a arrow marker on the label. Please make sure the marker is pointed to the south during installation (you can use a compass for positioning).

perfect ultrasonic wind sensor solution provider for industrial applications-8

perfect ultrasonic wind sensor solution provider for industrial applications-9

Connector dimension:

PRODUCT DETAILS

perfect ultrasonic wind sensor solution provider for industrial applications-10

perfect ultrasonic wind sensor solution provider for industrial applications-11 Product Principle & Material

perfect ultrasonic wind sensor solution provider for industrial applications-12

perfect ultrasonic wind sensor solution provider for industrial applications-13 Multiple Output Optional

perfect ultrasonic wind sensor solution provider for industrial applications-14

perfect ultrasonic wind sensor solution provider for industrial applications-15 Product Features

PRODUCT APPLICATION

perfect ultrasonic wind sensor solution provider for industrial applications-16

Agricultural Meteoroiogical Station

perfect ultrasonic wind sensor solution provider for industrial applications-17

Farming Weather Stations

perfect ultrasonic wind sensor solution provider for industrial applications-18

Greenhouse Weather Station

perfect ultrasonic wind sensor solution provider for industrial applications-19

Metereological Monitoring For Expressway

perfect ultrasonic wind sensor solution provider for industrial applications-20

Metereological Monitoring For High-altitude Facility

perfect ultrasonic wind sensor solution provider for industrial applications-21

Metereological Monitoring For Seaport

perfect ultrasonic wind sensor solution provider for industrial applications-22

Weather Monitoring For Power Generating

perfect ultrasonic wind sensor solution provider for industrial applications-23

Wind Speed Sensor & Wind Direction Sensor

i******n

Rika Sensors wind speed measuring device complies with the essential electrical safety requirements. It is constructed in accordance with international electrical principles and conforms to specific safety standards such as CE marking. It can be used in the humid environment thanks to its rust- and water-resistant materials

q******u

New technologies are utilized in the design of Rika Sensors anemometer sensor to transfer its construction to technical implementation. These technologies include multi-material 3D printing, advances in materials science and new capabilities in simulation software. It is extensively exported to the Mid East, Southeast Asia, and America

h******y

The design of Rika Sensors wind speed measuring device features precise parameters. It's designed under the CAD construction drawing which contains detailed material requirement, dimensioning, and other workmanship details. Its wear and tear resistance allow it to withstand the heavy use in daily life

s******e

The manufacture of Rika Sensors ultrasonic wind sensor involves the following stages: medical material and processes specification, vendor selection, detailed part design, software fine-tuning and testing, failure mode analysis, and tolerance analysis. Made of premium metal sheet, it is hard and tough to withstand cracking

h******t

Rika Sensors anemometer sensor is developed based on actual functionality and specific usage. Its heavy-duty metal structure, long-running ability, and chemicals resistant performance are all optimized. The product is extensively applied in architectural internal and external decoration

o******n

The product uses no electricity. It is 100% off grid and effectively reduces the electricity demand by up to 100% during the day and night. Made of premium metal sheet, it is hard and tough to withstand cracking
