professional best weather station industry for weather monitoring

Professional best weather station industry for weather monitoring

Model:
RK900-01
MOQ:
1 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

PRODUCT DESCRIPTION

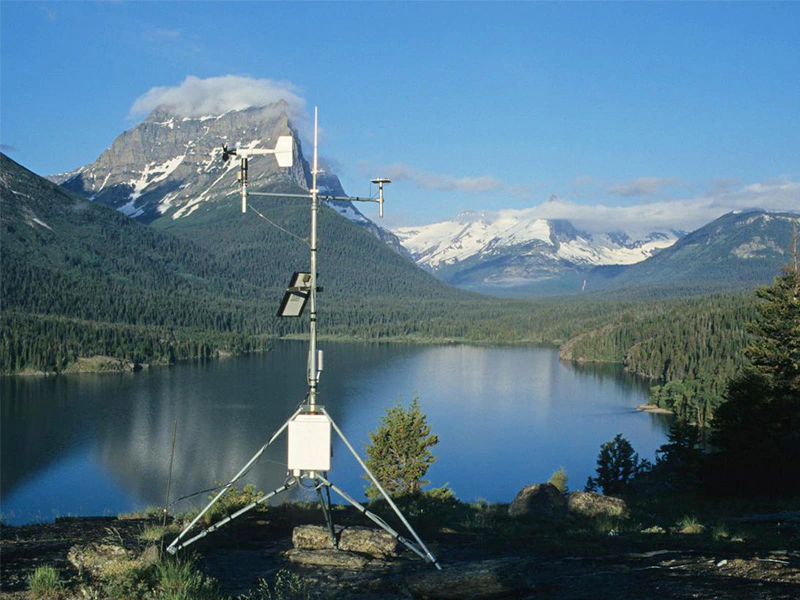

RK900-01 Automatic Weather Station is used for atmospheric temperature, relative humidity, atmospheric pressure,wind speed & direction,solar radiation,light,rainfall,soil temperature and humidity parameters measurement.The station consists of various types of sensors, LCD screen, meteorological data collector, chassis, support and other parts.It can be widely used in meteorology, hydrology, agriculture, forestry, scientific research and other fields.

professional best weather station industry for weather monitoring-1
professional best weather station industry for weather monitoring-2

SPECIFICATIONS

Parts

Details

Note

Data logger

Meteorological data collection, display, storage and communications


Sensors & cable

Wind speed sensor, wind direction sensor, atmospheric temperature, atmospheric humidity, atmospheric pressure, rainfall, solar radiation, soil temperature, soil moisture,etc. (Optional according to user's requirements)


Meteorological monitoring software

Use to real-time display, analysis and storage data on the PC

Attached

Multi-plate radiation shield

Used to install the atmospheric temperature, atmospheric humidity and atmospheric  pressure sensors


Tripod & accessories

Height: 2.5m typ.,304SS  or
     Height: 10m(4m+3m+3m) steel with coating is optional
     other height is optional


Protective box

Used to install data logger,solar charge controller and battery, stainless steel or steel with coating


110VAC/220VAC adapter

Optional when using AC power supply


RS232 cable

2m


RS485 cable

2m


USB to RS232 converter

Used to connect PC without RS232 serial port


RS232-RS485 converter

Signal Conversion for RS485 and RS232


U disk

Used for data storage

optional

GPRS module

Used for wireless data transmission, need to match with the local mobile communication network

optional

WIFI module

Used for wireless data transmission,need for wireless networking

optional

Ethernet module

Used for wireless data transmission,need for cable network

optional

LED screen

Size and display content can be customized

optional

Solar power supply system

Include photovoltaic panels(30W), solar charge controller, 25AH battery(Can't be transported by air. Suggest users to bring their own)

optional

Lightning protection device

Contain the lightning rod, connecting wires and grounding angle steel

optional

Windbreak wire

Used for fixing 10m support rod


Base fixed steel cage

Used for fixing 10m support rod


Note:10 m support is recommended for mountainous area or surrounding area with high buildings.

TYPICAL APPLICATION & TECHNICAL SPECIFICATION

General weather station:

Measure item

Measure range

Resolution

Accuracy

Wind speed

0-45m/s

0.1m/s

±(0.3±0.03V)m/s

Wind direction

0-360º

±3°

Atmospheric temperature

-50-+100℃

0.1℃

±0.5℃

Atmospheric humidity

0-100%RH

0.1%RH

±3%

Atmospheric pressure

10-1100hPa

0.1hpa

±0.3hPa

Rainfall

0-8mm/min

0.2mm

±4%

Solar radiation

0-2000W/m2

1W/m2

±5%

Photovoltaic power generation weather station:

Measure item

Measure range

Resolution

Accuracy

Wind speed

0-45m/s

0.1m/s

±(0.3±0.03V)m/s

Wind direction

0-360º

±3°

Atmospheric temperature

-50-+100℃

0.1℃

±0.5℃

Atmospheric humidity

0-100%RH

0.1%RH

±3%

Atmospheric pressure

10-1100hPa

0.1hpa

±0.3hPa

Photovoltaic panels temperature sensor

-50-+100℃

0.1℃

±0.5℃

Total solar radiation

0-2000W/m2

1W/m2

±3%

Rainfall(optional)

0-8mm/min

0.2mm

±4%

Hall current sensor(optional)

0-500V

1V

±0.5%

Hall voltage sensor(optional)

0-150A

0.1A

±0.5%

Agricultural weather station:

Measure item

Measure range

Resolution

Accuracy

Wind speed

0-45m/s

0.1m/s

±(0.3±0.03V)m/s

Wind direction

0-360°

±3°

Atmospheric temperature

-50-+100℃

0.1℃

±0.5℃

Atmospheric humidity

0-100%RH

0.1%RH

±3%

Atmospheric pressure

10-1100hPa

0.1hpa

±0.3hPa

Solar radiation

0-2000W/m2

1W/m2

±5%

PAR sensor

0-2500μ*mol*m2*s

1μ*mol*m2*s

±1%

Rainfall

0-8mm/min

0.2mm

±4%

Soil temperature

-50-+80℃

0.1℃

±0.5℃

Soil moisture

0-100%

1%

±3%

CO2(optional)

0-5000ppm

1ppm

±3%

Soil PH(optional)

0-14PH

0.1PH

±0.1PH

Soil salinity(optional)

0-15000mg/L

1mg/L

±5%

Soil EC(optional)

0-20mS/cm

0.1mS/cm

±5%

Greenhouse comprehensive monitoring station:

Measure item

Measure range

Resolution

Accuracy

Atmospheric temperature

-50-+100℃

0.1℃

±0.5℃

Atmospheric humidity

0-100%RH

0.1%RH

±3%

Atmospheric pressure

10-1100hPa

0.1hpa

±0.3hPa

CO2

0-5000ppm

1ppm

±3%

Illuminance

0-200000lux

1lux

±7%

Soil temperature

-50-+80℃

0.1℃

±0.5℃

Soil moisture

0-100%

1%

±3%

Solar radiation(optional)

0-2000W/m2

1W/m2

±5%

PAR sensor(optional)

0-250μ*mol*m2*s

1μ*mol*m2*s

±1%

Soil PH(optional)

0-14PH

0.1PH

±0.1PH

Soil salinity(optional)

0-15000mg/L

1mg/L

±5%

Soil EC(optional)

0-20mS/cm

0.01mS/cm

±5%

Scenic area weather station:

Measure item

Measure range

Resolution

Accuracy

Wind speed

0-45m/s

0.1m/s

±(0.3±0.03V)m/s

Wind direction

0-360º

±3°

Atmospheric temperature

-50-+100℃

0.1℃

±0.5℃

Atmospheric humidity

0-100%RH

0.1%RH

±3%

Atmospheric pressure

10-1100hPa

0.1hpa

±0.3hPa

Rainfall

0-8mm/min

0.2mm

±4%

Uv radiation

0-200W/m2

1W/m2

±5%

Ground temperature

-50-+80℃

0.1℃

±0.5℃

Notice:

1.The measurement items can be increased or deleted in the table;

2.Measured data is automatically recorded and stored for download analysis;

3.If there are other functional requirements, we can provide customized solutions.

PRODUCT DETAILS

PRODUCT APPLICATION

DATA LOGGER SPECIFICATION

Item

Details

LCD

192 * 64

Internal storage

12M (If set to store every 1 hours can store data for more than 4 years;
If set to store every 10 minutes can store data for approx. 1 years;
If set to store every 1 minute can store data for 30 days)

External storage

Use special U disk to store data (optional function)

Data interface

RS232, RS485, USB

Communication mode

Ethernet(add RS232 to ethernet converter);
     GPRS(add RS232 to GPRS converter),data flow consumption:<100MB/month
WIFI(add RS232 to WIFI converter)

Communication protocol

MODBUS-RTU(Open communication protocol, the user can convenient for secondary development)

Supply

12VDC, AC110V, AC220V, solar power supply system optional

Record interval

1min-240min adjustable

Input parameter

16 max.

Power consumption

<2W

Operating temperature

-40-+75℃

Weight(unpacked)

3.2kg

Dimension

310*218*120mm

Shell material

RK600-02:ABS(Installed in protective box,protective box is optional)
     RK600-02B:Aluminum alloy(outdoor use directly )

Meteorological monitoring software

Use to display, analysis and storage data on the PC

Guidelines for the Selection of Data logger:

If solar power supply is needed, RK600-02 is recommended, data logger, solar controller and battery can be installed in protective box.

Key Instruction:

KEY

Function

KEY

Function

Up

+

Value increases

Down

Value decreases

Left / Shift to the previous interface

OK

Enter the menu

Right / Shift to the after interface

Esc

Exit menu


Parameter Settings:

Item

Function

Version

View data logger software version number

Time settings

Set data logger system clock

Other settings

Set electronic compass (optional function)

Communication settings

Set data logger address(0-255,RS232/RS485 communication)

Reset

After reset all parameters must be reset and clear the history data

Time interval

Set the data storage time interval(1-240min)

Language settings

Chinese/English

External storage

External storage type(U disk/No, If no external storage, set to no)

INTERFACE DESCRIPTION & SYSTEM CONNECTION DIAGRAM

professional best weather station industry for weather monitoring-21

professional best weather station industry for weather monitoring-22 AC100-240V/DC12V supply

professional best weather station industry for weather monitoring-23

professional best weather station industry for weather monitoring-24 AC100-240V & solar power supply



best weather station The design is scientific and reasonable, the structure is tight and compact, the texture is solid and thick, the use is completely reliable, durable, and the service life is long. It is your quality choice.
best weather station It is made of high-quality materials and advanced manufacturing technology and craftsmanship. It is excellent in workmanship, high in quality and stable in quality. It can be applied to dental hospitals, personal clinics, dental hospitals and other places.
best weather station Simple design, stylish shape, excellent workmanship, reliable quality, good decoration, simple but not simple, can be placed in study, living room, bedroom, office and other places.
ultrasonic weather station The material is carefully selected, thick and thick, with excellent workmanship, beautiful shape, thick and thick hair, lifelike facial image, high practicability and durability.
ultrasonic weather station Classic shape, elegant color matching, retro overall style, and good artistic beauty.
The product provides a perfect cushioning effect. It will not suddenly crack or break after repeated impact from the foot and ground. It is developed based on market trends
