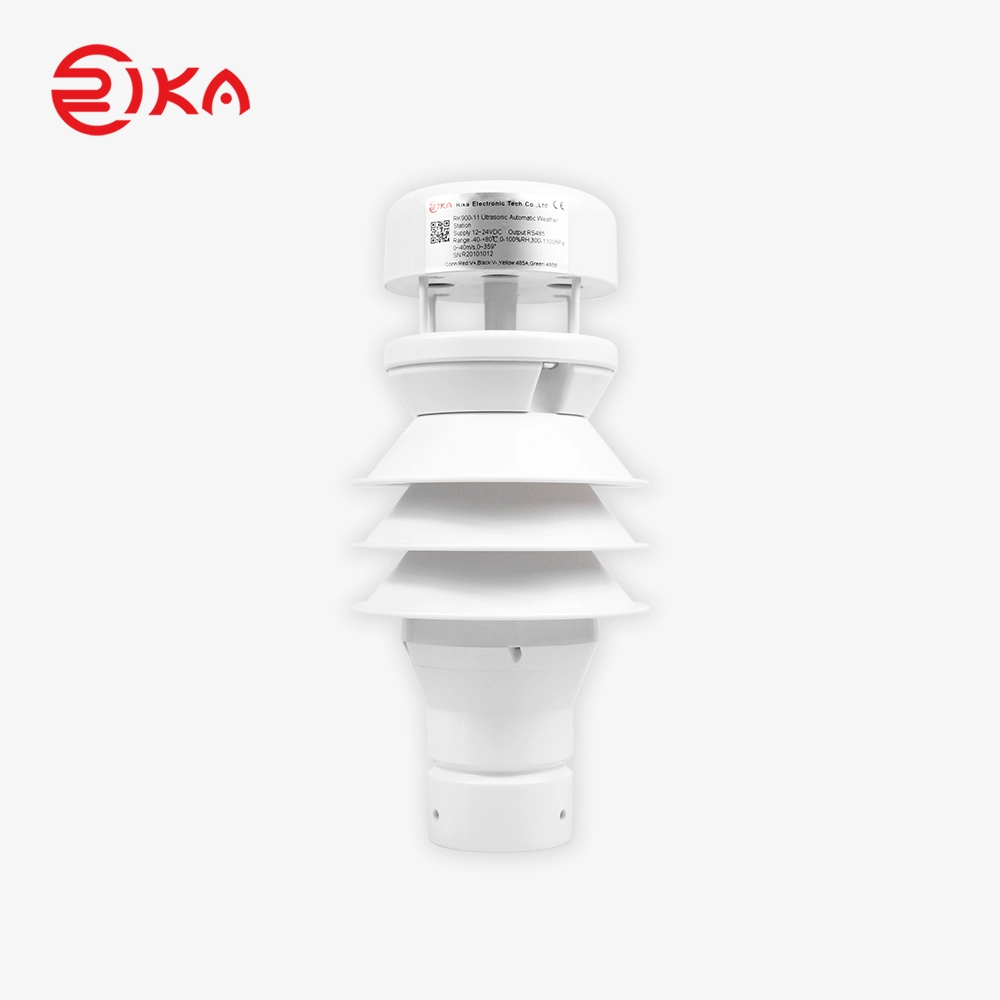

RK900-11 Automatic Weather Instrument Ultrasonic Weather Station

这里可以自定义设置

PRODUCT DESCRIPTION

RK900-11 mini automatic weather station is a civil integrated weather station independently developed by our company that can measure multiple meteorological parameters. It can simultaneously measure six major meteorological elements such as atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure and rainfall.RK900-11 user a low-power chip with a power consumption of only 1.7W, which is especially suitable for solar energy or battery-powered environment with high requirements on power consumption.As a result of the adoption of new technology and new process, the structure is more compact and compact.Solar radiation and solar illuminance detection module can also be selected, which is very suitable for supporting agricultural meteorological system.The outer shell is ABS engineering plastic, available in black and white.

High accuracy

Fast response

Auto-heating function

Radar rainfall measurement

RS485 output

Easy to install

SPECIFICATIONS

Subtitle Description

Item	Technical Specification
	Range	Resolution	Accuracy
Wind speed(Default)	0-40m/s	0.1m/s	±3%
Wind direction(Default)	0-359°	1°	±3°
Atmospheric temperature	0－100%	1%	±5％
Atmospheric pressure	150 － 1100hPa	0.1hPa	±1
Rainfall	0-200mm/hr	0.1mm	±5％（ @ wind speed≤5m/s ）
Altitude	-500m – 9000m	1m	±8％
Radiation	0-2000W/m²	0.1 W/m2	±5％（ @ Vertical irradiation）
Illumination	0-200000lux	0.1 lux	±5％（ @ Vertical irradiation）‍
UV	0-2000W/m2	0.1W/m2	±10%
PM2.5	0-2000 ug/m3	1 ug/m3	±10％
PM10	0-2000 ug/m3	1 ug/m3	±10％
Visibility	10-5000m	1m	±15%
item	Technical Specification
Power Supply	12-24VDC
Power consumption	1.7W
Output Signal	RS232/RS485(Modbus or NMEA-183), SDI-12
Operating Temperature	-20℃-+60℃
Ingress Protection	IP65
Dimension	Φ82mm×（108-240）mm (Dimensions will vary depending on the parameters)
Weight(unpacked)	0.38kg
Main material	ABS

PRODUCT DETAILS

PRODUCT APPLICATION

Subtitle Description

Automatic Weather Station

CUSTOMER TESTIMONIALS

product-Rika Sensors-RK900-11 Automatic Weather Instrument Ultrasonic Weather Station-img-6

CERTIFICATE

CE-Ultrasonic Weather Station

TUV Certificate

EMC-Automatic Weather Station

RoHS-Automatic Weather Station

ISO9001

CE-Automatic Weather Station
