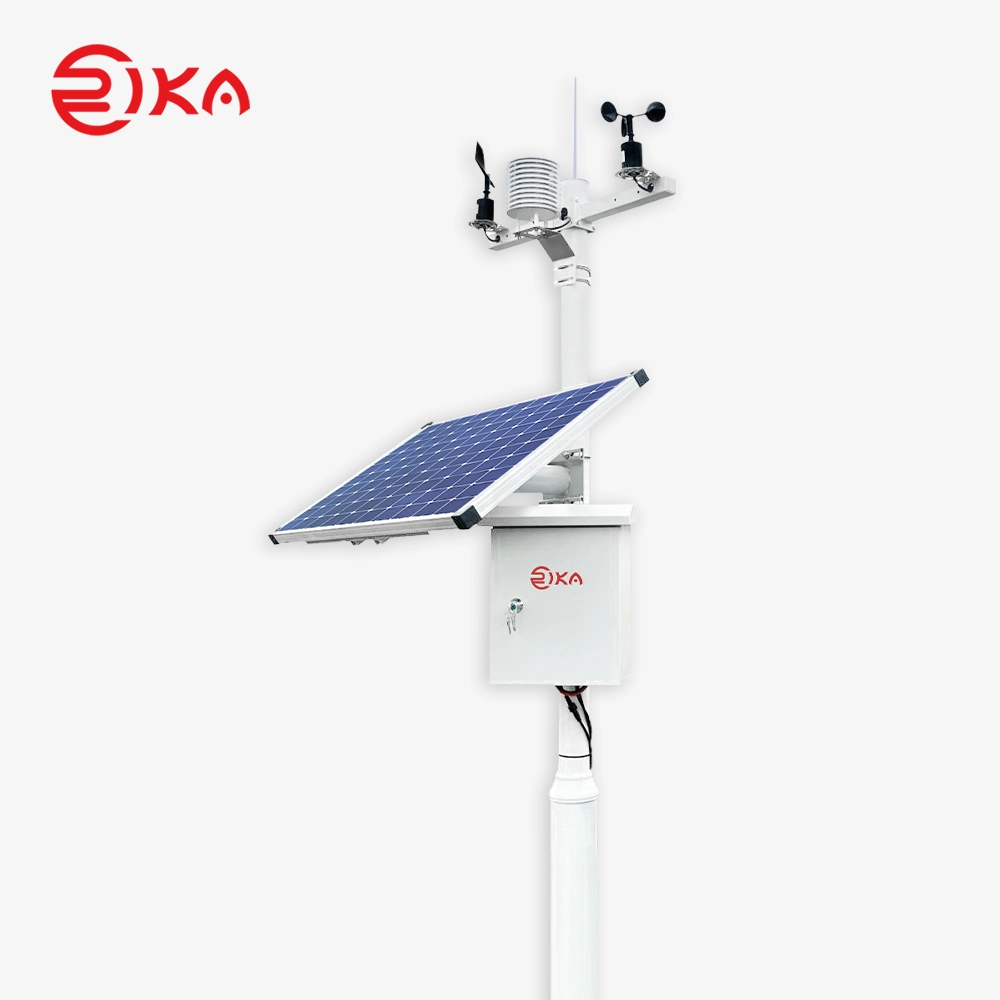

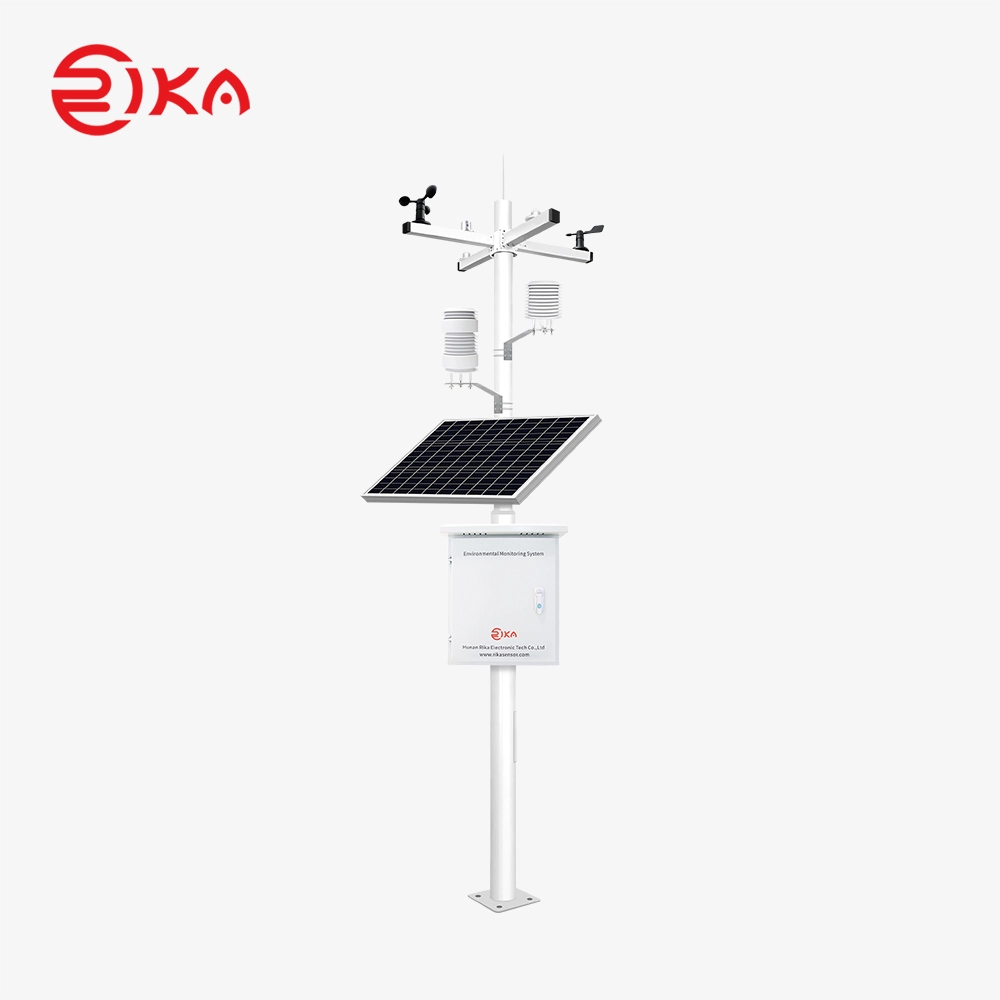

RK900-01 Agricultural Automatic Meteorological Station
PRODUCT DESCRIPTION
RK900-01 Agricultural Automatic Meteorological Station, designed for farmland, greenhouses, orchards and other agricultural scenes, aims to collect, store and transmit meteorological data in real time, provide accurate environmental monitoring support for agricultural production, help disaster warning, irrigation decision-making and crop management, and support precision agricultural management. The system has the characteristics of high precision, low power consumption, modular expansion, etc., to meet the needs of long-term and stable operation in the field, and the product has passed the testing and identification of China Agricultural Machinery Institute.
System unit
Item | Details | Remarks |
Data logger | Meteorological data acquisition, computational analysis, display, storage and communication (4G/Ethernet/WIFI), 7"LCD, Support downloading historical data locally | Either-or |
Communication gateway | Rs485 gateway, 4g gateway, wifi gateway, and ethernet gateway optional | |
Sensors and cables | Wind speed sensor, wind direction sensor, atmospheric temperature, atmospheric humidity, panel temperature, total solar radiation, scattered radiation, direct radiation, etc | Depends on user requirements |
Multilayer radiation shield (shutter box) | For install atmospheric temperature and humidity sensor | |
Protective box | For the installation of data loggers, solar charging controller, battery / power supply, etc | |
Solar energy power supply system | Including solar panels and bracket, solar charging controller, battery | Optional |
Vertical rod and mounting parts | Height: 2.5m, including lightning protection device, other height can be customized |
Main measurement parameters
Item | Range | Resolution | Accuracy | Remarks |
Wind speed | 0-45m/s | 0.1m/s | ±（0.3±0.03v）m/s | The parameters can be adjusted according to the user requirements |
Wind direction | 0-360º | 1° | ±3° | |
Air temperature | -40℃-+60℃ | 0.1℃ | ±0.5℃ | |
Air humidity | 0-100%RH | 0.1%RH | ±3% | |
Atmospheric pressure | 300-1100hpa | 0.1hpa | ±0.5hpa | |
Solar radiation | 0-2000W/m2 | 1W/m2 | ±3% | |
Illuminance | 0-200klux | 1lux | ±5% | |
Rainfall | ≤4mm/min | 0.2mm | ±4% | |
Soil temperature | -30℃-+70℃ | 0.1℃ | ±0.5℃ | |
Soil humidity | 0-100%V/V | 1% | ±3% | |
Soil conductivity | 0-10ms/cm | 0.001ms/cm | ±3% | |
CO2 concentration | 0-5000ppm | 1ppm | ±3% | |
Soil PH | 0-14ph | 0.1ph | ±0.1ph |
Data logger and gateway comparison
Item | Data logger | Gateway | ||||||
4G | Ethernet | WIFI | RS485 | |||||
RK600-07C | RK600-07C | RK600-07C | RK600-07C | RK600-17 | RK600-17 | RK600-17 | RK600-17 | |
Local display | Support | Support | Support | Support | / | / | / | / |
Ethernet | Support | Support | Support | Support | / | Support | / | / |
4G | / | Support | / | Support | Support | / | / | / |
WIFI | / | / | Support | Support | / | / | Support | / |
RS485 | Support | Support | Support | Support | / | / | / | Support |
Remote upgrade | Support | Support | Support | Support | / | / | / | / |
Average power consumption | 3w | 3w | 3w | 3w | 1w | 1w | 1w | 0.5w |
PRODUCT DETAILS
Data logger and gateway comparison
Item | Parameter |
Display | 7’LCD |
Pixel | 1024*600 |
Touch type | Resistance-type |
Screen dormancy | Support |
Backlight adjustable | Support |
Communication status indication | Support |
Store-in | 4GB |
Communication interface | 1*RS232,2*RS485 |
Network | Ethernet (standard standard), 4G/ WIFI (optional) |
Measuring parameters | 32 max. |
Storage time interval | 1-240 minutes (adjustable) |
U disk download | Support |
Relay output | Customizable |
Power protection | With surge protection, anti protection |
CE | EN55022 & EN55024 |
