 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

professional leaf wetness sensor manufacturer for humidity monitoring 1
professional leaf wetness sensor manufacturer for humidity monitoring 1

professional leaf wetness sensor manufacturer for humidity monitoring

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RK300-04
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry
Product Details
Choose Rika Sensors's environmental sensor for the following reasons.Rika Sensors provides diversified choices for customers. environmental sensor is available in a wide range of types and styles, in good quality and in reasonable price.
  • professional leaf wetness sensor manufacturer for humidity monitoring 2
Enterprise Strength
  • With a comprehensive management service system, Rika Sensors is capable of providing customers with one-stop and professional services.

PRODUCT DESCRIPTION

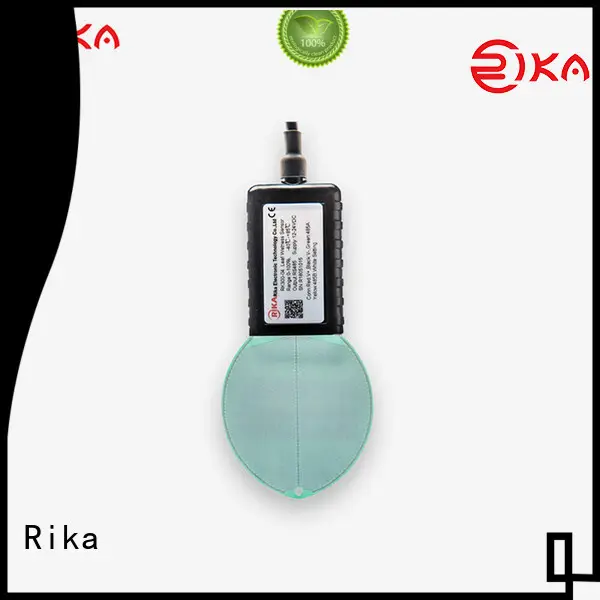

RK300-04 Leaf Wetness Sensor is an important tool for observing and studying leaf wetness, preventing pests and diseases, and spraying sprinkler control. The accurate measurement of the moisture content of the leaf surface can be used to monitor the trace moisture or ice crystal residue. The shape of the sensor is simulated by the blade, which can simulate the characteristics of the leaf surface, so that it can reflect the situation of the leaf surface more accurately. By measuring the variation of the dielectric constant of the upper surface of the blade, the mist, water vapor and ice can be measured.

professional leaf wetness sensor manufacturer for humidity monitoring 3

SPECIFICATIONS

Item

Technical Specification

Range

Wetness: 0-100%
     Temperature: -40-+80℃

Accuracy

Wetness: ±3%(0-50%),±5%(>50%)
    Temperature: ±0.5℃

Repeatability

<±3%fs

Temperature Drift

≤0.2%FS/℃

Supply

5VDC,12-24VDC

Output

4-20mA,0-5V,0-2V,RS485

IP Rating

IP65

Operating Temperature

-40℃-+80℃

Dimension

65*13*145mm

Storage

-40-70℃@20%-90%RH

DIMENSION & MOUNTING

professional leaf wetness sensor manufacturer for humidity monitoring 10

When installing the sensor to simulate the face of the grid part of the face, roughly the same angle with the surrounding surface and the ground. Such as foliar fertilization spray testing, can be installed in the plant height of different height, to ensure that the plant close to the ground effect of foliar fertilization.

PRODUCT DETAILS

professional leaf wetness sensor manufacturer for humidity monitoring 11

professional leaf wetness sensor manufacturer for humidity monitoring 12Product Principle

professional leaf wetness sensor manufacturer for humidity monitoring 13

professional leaf wetness sensor manufacturer for humidity monitoring 14 Multiple Output Optional

professional leaf wetness sensor manufacturer for humidity monitoring 15

professional leaf wetness sensor manufacturer for humidity monitoring 16RS485 Or RS232 Output

professional leaf wetness sensor manufacturer for humidity monitoring 17

professional leaf wetness sensor manufacturer for humidity monitoring 18 Product Features

PRODUCT APPLICATION



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
