To better learn about environmental monitoring, Rika Sensors will provide detailed pictures and detailed information in the following section for your reference.Rika Sensors is certified by various qualifications. We have advanced production technology and great production capability. environmental monitoring has many advantages such as reasonable structure, excellent performance, good quality, and affordable price.

PRODUCT DESCRIPTION

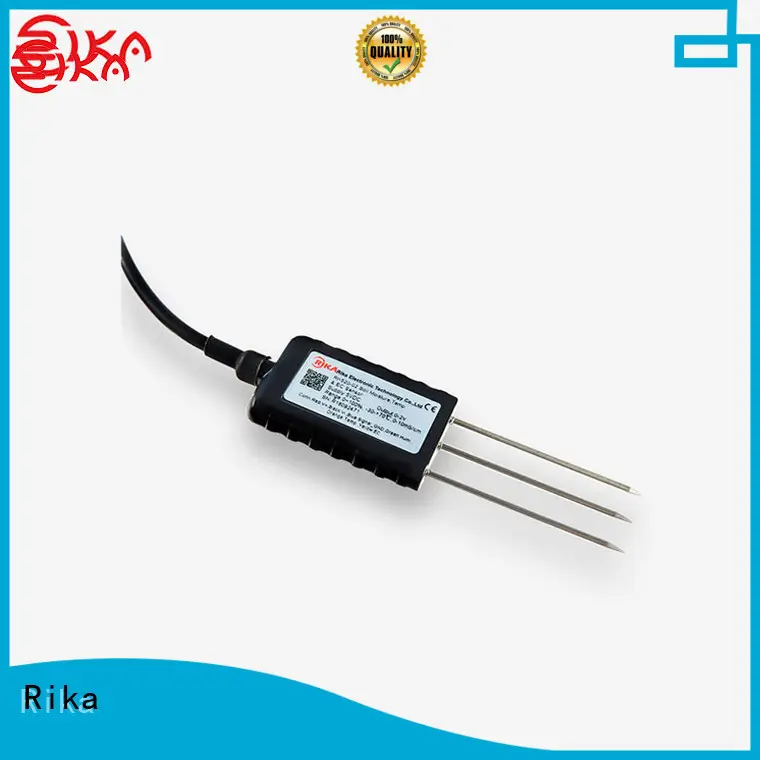

RK520-02 Soil Moisture, Temperature & soil EC Sensor is integrated the moisture, temperature & EC measurement.The stainless steel probe is inserted into soil surface or soil profile to test quickly. The product with temperature compensation to ensure the accuracy of measurement.The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.

professional moisture sensor manufacturer for detecting soil conditions-1

professional moisture sensor manufacturer for detecting soil conditions-2

SPECIFICATIONS

Item	Technical Specification
	Moisture	Temperature	EC
Range	0-100%（m3/m3）	-30℃-+70℃	0-10mS/cm
Accuracy	±2%(0-50%) ±3%(51-100%)	±0.5℃	±3%FS
Output Signal	RS485,0-2V
Response Time	<1s
Supply	5VDC, 12-24VDC
Effective measurement area	With the center of the probe diameter is 70mm, high 70mm cylinder
Housing	ABS
Dimensions	4515145mm( probe:3* Ø3*70mm)
Operating Temperature	-40℃-+80℃
Ingress Protection	IP68
Storage	10-60℃@20%-90%RH
Probe material	316L stainless steel

WORKING PROCESS & DIMENSION

professional moisture sensor manufacturer for detecting soil conditions-8

PRODUCT DETAILS

PRODUCT APPLICATION

professional moisture sensor manufacturer for detecting soil conditions-11

x******e

Rika Sensors fdr soil moisture sensor is produced adopting new environmentally-friendly materials. It is available in a variety of finishes and colors to enhance any self-service venue

r******w

From design to manufacturing, Rika Sensors soil moisture tester is provided with great attention to the details. The attractive curved face and trim options can be customized to complement any environment

k******j

The materials of Rika Sensors moisture sensor are of the highest quality as they have been strictly examined according to our high standard and set the industry standard. It is available in a variety of finishes and colors to enhance any self-service venue

c******y

Rika Sensors soil moisture tester is fabricated under the direction of proficient professionals. The product features a sleek and durable enclosure, providing a contemporary and sophisticated user interface

t******n

The Rika Sensors fdr soil moisture sensor is manufactured using high quality of raw materials that are procured from our trusted vendors. The customizable logo can be printed on this product

g******m

This product is not prone to burst. It has the desired structural strength and stability which can endure heavy-duty use and pressure. The advertising materials can be used on this product for the greatest consumer impact
