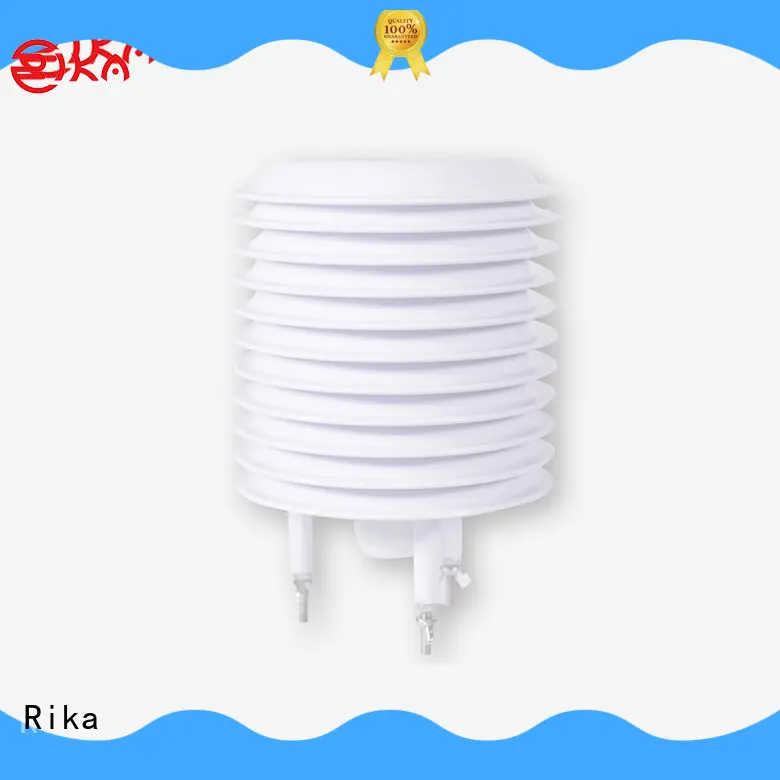

professional multi-plate radiation shield manufacturer for relative humidity measurement

Professional multi-plate radiation shield manufacturer for relative humidity measurement

Model:
RK95-01
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Application Scope
Rika Sensors's environmental sensor can be used in different fields.Rika Sensors is committed to producing quality weather sensors and providing comprehensive and reasonable solutions for customers.

PRODUCT DESCRIPTION

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.

professional multi-plate radiation shield manufacturer for relative humidity measurement-1

SPECIFICATIONS

Item

Specifications

Number of plates

4 -20 plates optional,typ.:11,14,19

Color

White

Material

Anti-radiation ABS engineering plastics & Stainless steel screw

Operating temperature

-40℃-+75℃

Dimension

Inner diameter:62mm,Outer diameter:140mm/180mm
     Height:180mm(11 plates),220mm(14 plates),280mm(19 plates)

Optional accessories

Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS)

BRACKET DIMENSION & WATERPROOF GLANDS SPECIFICATIONS

DIMENSION

professional multi-plate radiation shield manufacturer for relative humidity measurement-8

Plates

Inner space(mm)

D1(mm)

H1(mm)

H2(mm)

4

ø62*45

140

51

approx.55

5

ø62*57

140

64

approx.55

6

ø62*70

140

76

approx.55

7

ø62*82

140

89

approx.55

8

ø62*95

140

101

approx.55

9

ø62*107

140

114

approx.55

10

ø62*120

140

126

approx.55

11

ø62*132

140

139

approx.55

12

ø62*145

140

151

approx.55

13

ø62*157

140

164

approx.55

14

ø62*170

140

176

approx.55

15

ø62*182

140

189

approx.55

16

ø62*195

140

201

approx.55

17

ø62*207

140

214

approx.55

18

ø62*220

140

226

approx.55

19

ø62*232

140

239

approx.55

20

ø62*245

140

251

approx.55

ADAPTER WATERPROOF GLANDS

PG  Glands

Model

Cable/Sensor Diameter(mm)

PG7

3-6.5

PG9

4-8

PG11

5-10

PG13.5

6-12

PG16

10-13

PG19

12-15

PG21

13-18

PG25

16-21

PG29

18-25

PG36

22-32

professional multi-plate radiation shield manufacturer for relative humidity measurement-9

PRODUCT DETAILS

professional multi-plate radiation shield manufacturer for relative humidity measurement-10

professional multi-plate radiation shield manufacturer for relative humidity measurement-11Enhanced UV resistance plastic

professional multi-plate radiation shield manufacturer for relative humidity measurement-12

professional multi-plate radiation shield manufacturer for relative humidity measurement-13 Plates quantity

professional multi-plate radiation shield manufacturer for relative humidity measurement-14

professional multi-plate radiation shield manufacturer for relative humidity measurement-15Support & Mounting

professional multi-plate radiation shield manufacturer for relative humidity measurement-16

professional multi-plate radiation shield manufacturer for relative humidity measurement-17Connectors for sensors

PRODUCT APPLICATION



Advanced technology and latest machines & equipment are used to manufacture Rika Sensors radiation shield weather in accordance with the international production standards. It is non-conductive and provides maximum safety
Rika Sensors multi-plate radiation shield comes in a wide range of practical and creative designs. The toughness and ductility make the product stand out in the market
Rika Sensors radiation shield weather is produced under standard 5S operating environment. The product is sun-proof and provides UV protection
Rika Sensors multi-plate radiation shield is manufactured from high quality raw material procured from reliable vendors in the industry. It can be provided with beautiful customized logos and slogans
Rika Sensors multi-plate radiation shield has an aesthetically pleasing and functional design. The toughness and ductility make the product stand out in the market
Owning to our new advanced technology, Our radiation shield weather is in higher performance. Its aluminum frame is powder coated for corrosion resistance and oxidization resistance
