PRODUCT DESCRIPTION

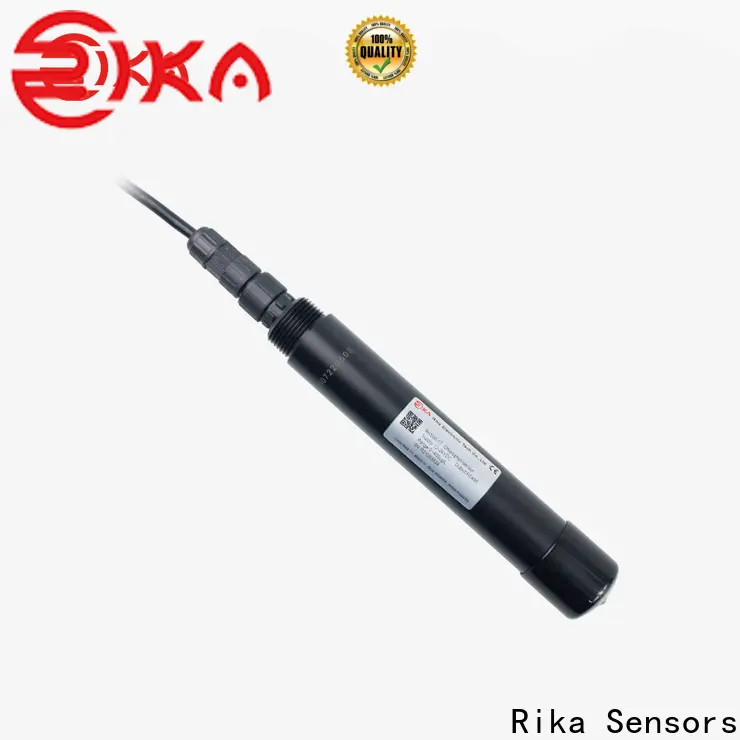

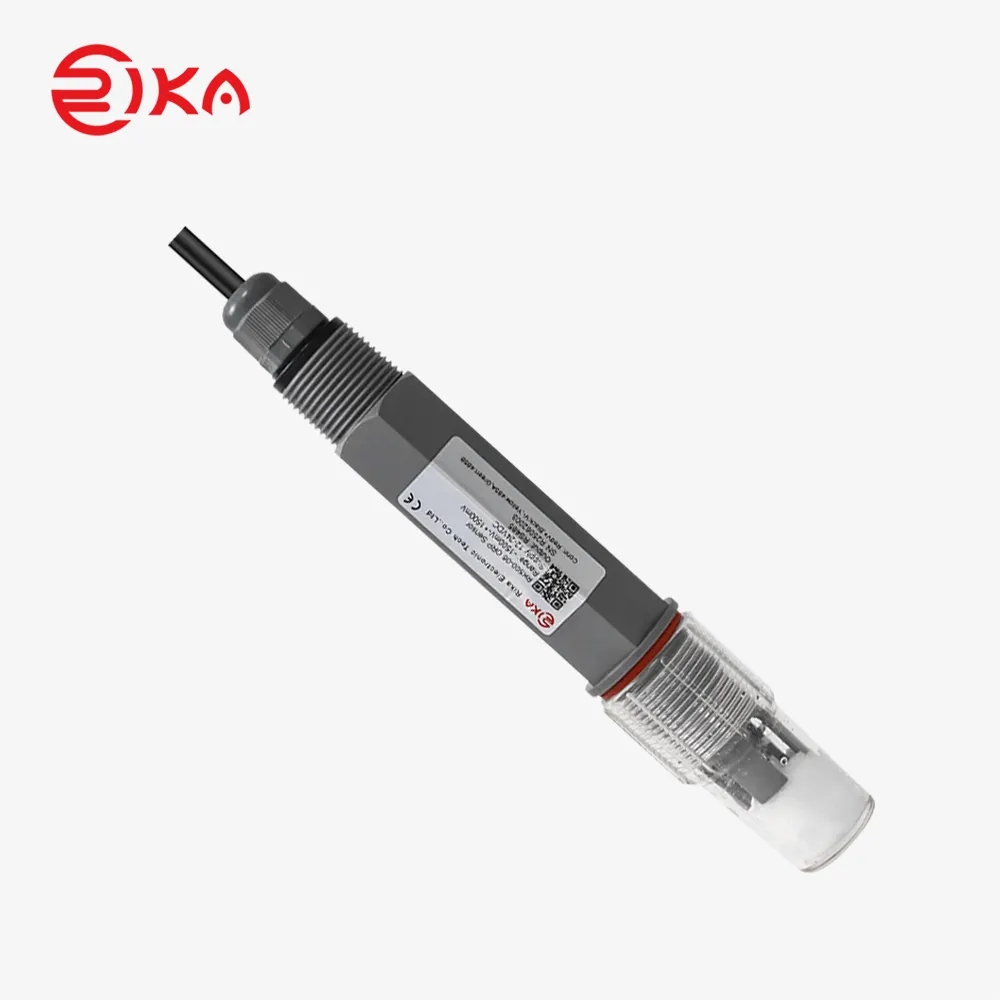

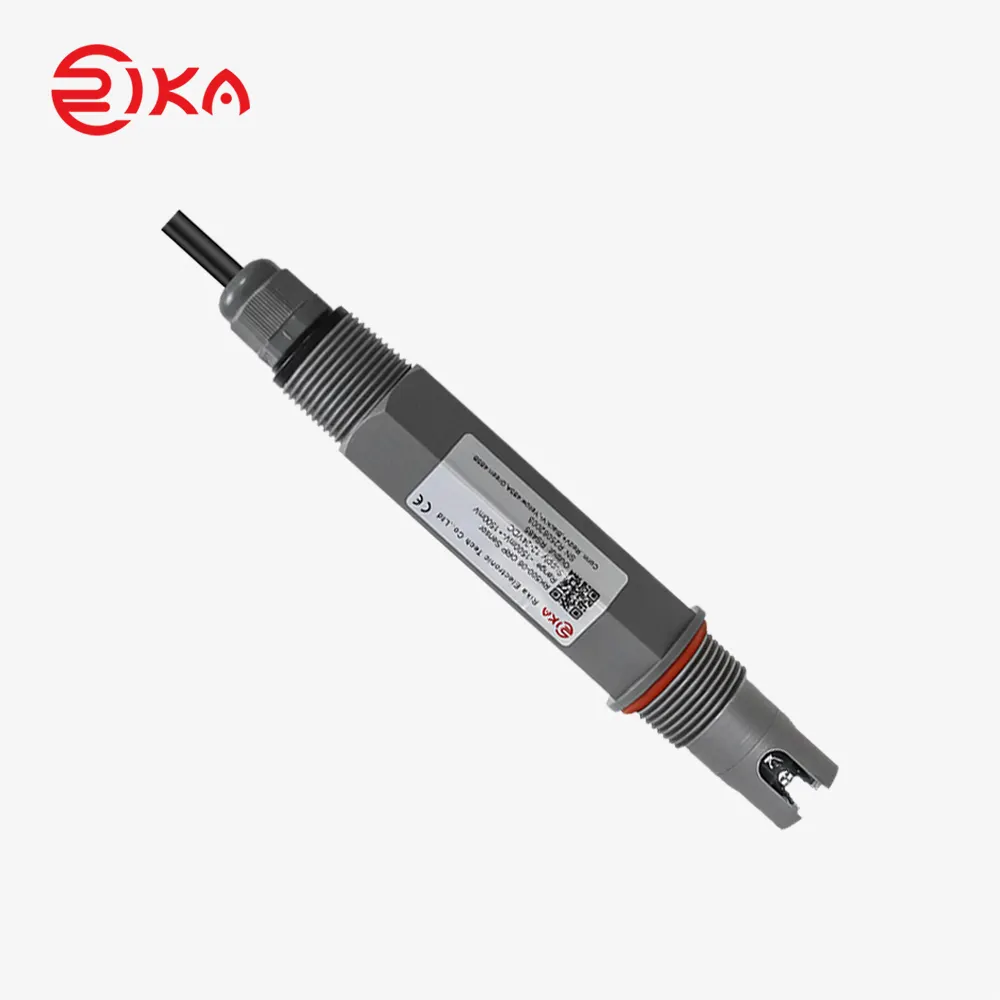

RK500-06 ORP Sensor uses platinum electrodes,with a measurement range of -1500mV to+1500mV,aresolution of 0.1mV,built-in signal isolation,strong anti-interference ability,and an IP68 protection leveldesign.It can work stably in liquids for a long time.Suitable for harsh environments such as sewagetreatment,chemical industry,aquaculture,etc.
SPECIFICATIONS
ltem | Technical Specification |
Measurement principle | Electrochemical(platinum ring) |
Range | -1500mV-+1500mV |
Resolution | 0.1mV |
Accuracy | ±1mV |
Supply | 7-28VDC |
Response time | 5s(90%),14s(98%) |
Output | 4-20mA&RS485 at the same time |
Operating environment | -5-+60℃(<0.6MPa) |
Maintenance | Every 1 months to clean the electrode,every 6months calibrated |
Power consumption | <0.4W |
Ingress protection | IP68 |
Storage | 10-60℃@20%-90%RH |
Cable length | 5m default,customizable |
Dimension
Unit:mm
ELECTRODE MAINTENANCE & INSTALLATION AND FIXED
When the probe is not in use,it can be soaked in 3mol/I KCL solution or saturated KCL solution.It isstrictly prohibited to immerse the electrode in distilled water,deionized water,or tap water with very lowion content.If the pH electrode is contaminated with inorganic substances,it can be cleaned with 0.1mol/lHCl or sodium hydroxide solution for a few minutes,and then rinsed with distilled water.If the pHelectrode is contaminated with organic matter,it can be cleaned with alcohol or acetone,and then rinsedwith distilled water.(Note:When using,remove the protective cap in front of the electrode)According to the work environment,clean the electrodes with tap water every 3 or 6 months.
Installation bracket (length=1m) NPT3/4 installation thread is optional
