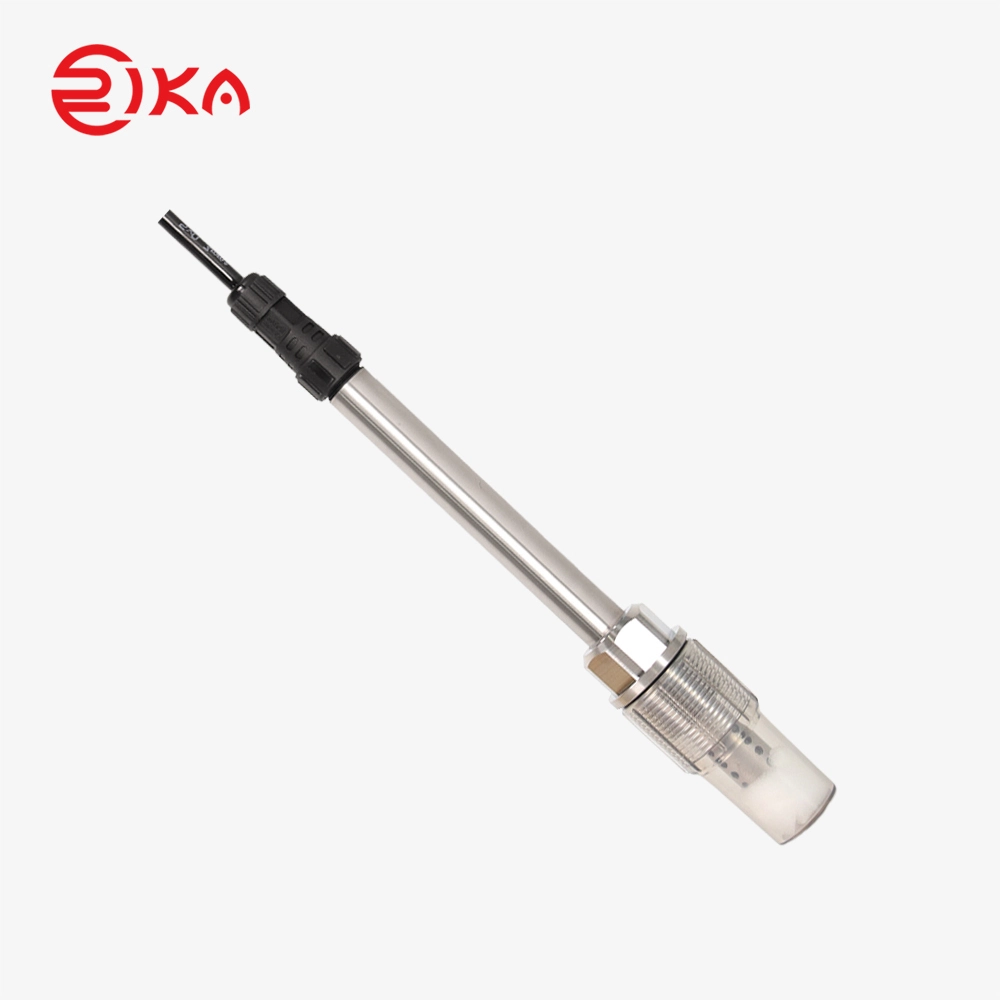

RK500-06LC (Liquid cooling) ORP Sensor-M16 connector
PRODUCT DESCRIPTION
With the rapid development of data centers, new energy vehicles, high-end manufacturing and other fields, liquid cooling technology has gradually become the mainstream heat dissipation solution for high-density equipment due to its efficient heat dissipation capability.
However, the stable operation of liquid cooling systems is highly dependent on the cleanliness of the coolant. If particulate matter, corrosion products, microbial impurities, etc. are mixed into the coolant, it will not only reduce the heat dissipation efficiency, but may also block pipelines, corrode equipment components, and cause system failures or even shutdown accidents.
Core Monitoring Indicator: Oxidation-Reduction Potential (ORP)
ORP (Oxidation-Reduction Potential) reflects the oxidation-reduction characteristics of the coolant, and once its value deviates from the normal range, it will cause a series of chain problems. Excessive oxidation can accelerate the corrosion of metal components such as pipelines and server components, causing equipment damage and leakage risks.
RK500-06LC ORP Sensor: Accurate & Reliable Monitoring
The 500-06LC ORP sensor adopts advanced glass platinum electrode technology, combined with high-precision signal processing chips, to achieve accurate measurement of ORP values. It can keenly capture subtle changes in coolant ORP values.
Both oxidizing and reducing environments can provide accurate and stable monitoring data, providing a reliable basis for the evaluation of the operating status of liquid cooling systems.
SPECIFICATIONS
Item | Technical Specification | ||
Main material | 316L+ Titanium alloy | ||
Applicable medium① | Deionized water, PG25,EG25 | ||
O-ring material | EPDM | ||
Process connection | Upper:G3/4 | Upper and lower NPT3/4 threads | 50.5 Chuck |
Sealing method | End face seal | Thread seal | Gasket |
Cable | M16 connector , Direct line | ||
Accuracy | ±1mV | ||
Resolution | 0.1mV | ||
Power consumption | <0.2W | ||
Operating temperature | 0-+60℃ | ||
Range | -1500~+1500mV | ||
Supply | 7-30VDC | ||
Output | 4-20mA&RS485 at the same time | ||
Response time | 14 seconds (98% flowing liquid) | ||
Pressure resistance | 1MPa(10Bar) | ||
Ingress protection(probe) | IP68 | ||
Storage | 10-60℃@20%-90%RH | ||
Cable length | 5m default, other cable lengths can be customized | ||
①Please verify the medium to be used before placing your order. | |||
DIMENSION
Uint:mm
