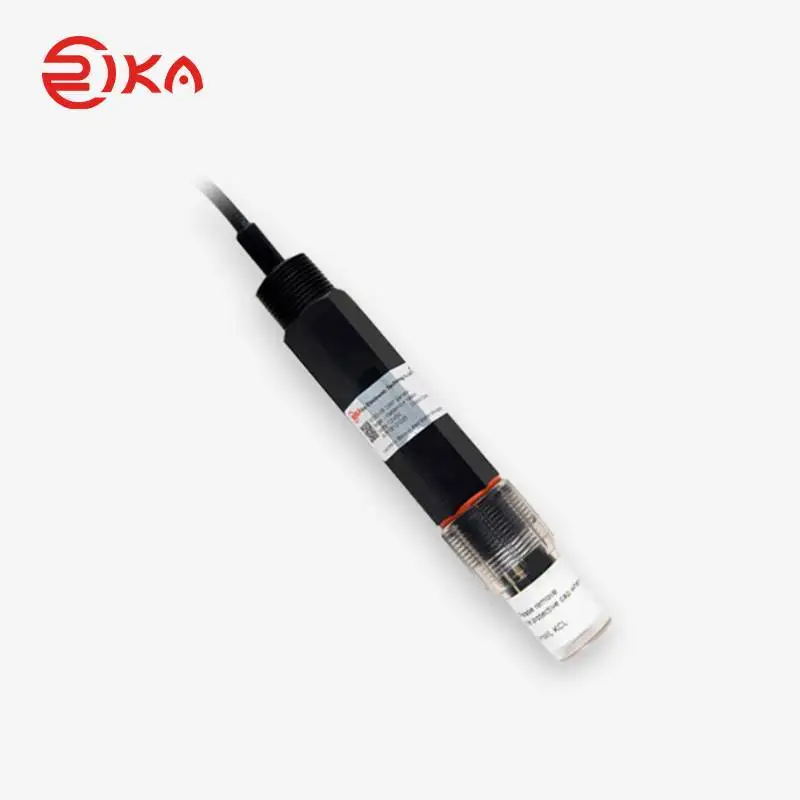

RK500-06 ORP Sensor Water Quality Monitoring Sensor

OEM/ODM:

Available

MOQ:

1 PCS

Model:

RK 500-06

Inquiry

Write a Review

PDF Download

PRODUCT DESCRIPTION

RK500-06 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.

RK500-06 ORP Sensor Water Quality Monitoring Sensor 2

RK500-06 ORP Sensor Water Quality Monitoring Sensor 3

High precision.

RK500-06 ORP Sensor Water Quality Monitoring Sensor 4

High sensitivity.

RK500-06 ORP Sensor Water Quality Monitoring Sensor 5

Fast response.

RK500-06 ORP Sensor Water Quality Monitoring Sensor 6

Widely used.

RK500-06 ORP Sensor Water Quality Monitoring Sensor 7

Excellent stability.

RK500-06 ORP Sensor Water Quality Monitoring Sensor 8

Simple operation.

SPECIFICATIONS

Item	Technical Specification
	ORP
Measurement Principle	Electrochemical(platinum ring)
Range	-1500mV-+1500mV
Resolution	0.1mV
Accuracy	±0.5mV
Supply	7-30VDC
Response time	5s
Output	4-20mA & RS485 at the same time
Operating Environment	-10-+80℃(<0.6MPa)
Stability	≤1%/year
Maintenance	Every 1 months to clean the electrode, every 6 months calibrated
Power consumption	<0.4W
Ingress Protection	IP68
Storage	10-60℃@20%-90%RH
Cable length	5m default, customizable

DIMENSION

RK500-06 ORP Sensor Water Quality Monitoring Sensor 9

Type A

Universal type ABS housing, Up and down are NPT3/4 threads

RK500-06 ORP Sensor Water Quality Monitoring Sensor 10

Type C

Standard glass type Length=120mm

RK500-06 ORP Sensor Water Quality Monitoring Sensor 11

Type B

Highly corrosion resistant PPS housing, Up and down are NPT3/4 threads

RK500-06 ORP Sensor Water Quality Monitoring Sensor 12

Unit:mm

ELECTRODE MAINTENANCE & INSTALLATION AND FIXED

PH electrode is not used at ordinary times and can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water and deionize the water or tap water with minimal plasma content.If the PH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l Hcl or NaOH solution for a few minutes and then washed with distilled water. If the PH electrode is contaminated with organic substances, it can be cleaned with alcohol or acetone and then cleaned with distilled water.(note: the protective cap before the electrode should be removed when using);

Clean the electrode with tap water every 3 months or 6 months according to the working environment.

Mounting bracket(length=1m) is optional
