With the pursuit of excellence, Rika Sensors is committed to showing you unique craftsmanship in details.Rika Sensors has the ability to meet different needs. weather sensors is available in multiple types and specifications. The quality is reliable and the price is reasonable.

PRODUCT DESCRIPTION

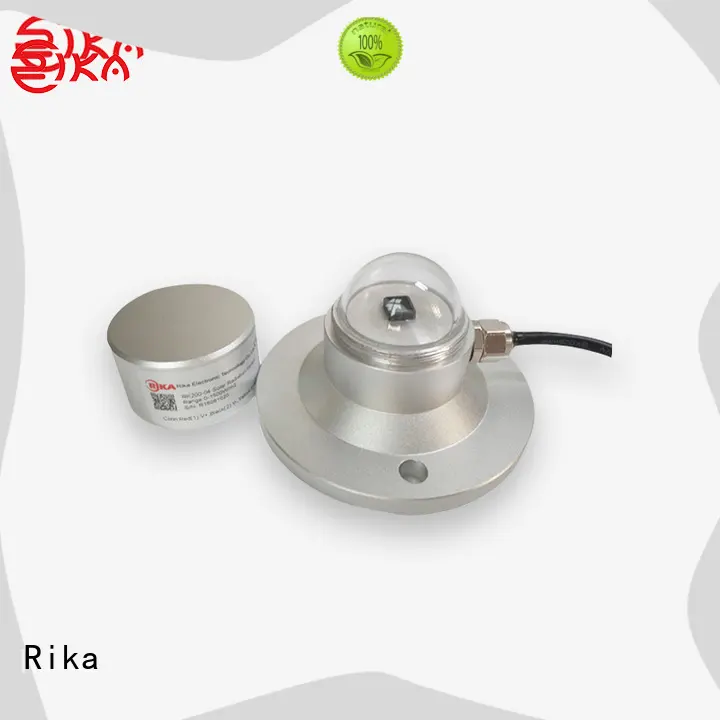

RK200-04 Solar Radiation Sensor is designed on basis of silicon-cell principle. It is mainly used for measuring solar radiation within 300-1100nm wavelength. If the sensing face is downwards, it can test the reflected radiation and solar radiation on the incident to the inclined plane. If shad is added, it can test the scattered radiation. It is widely used to monitor the solar radiation in meteorology, solar energy, agriculture, construction materials aging and atmospheric pollution and etc..

Conform to the WMO standard.

Suitable for harsh environment.

Easy installation.

Visual desiccant Window.

Low power Consumption.

High sensitivity.

SPECIFICATIONS

Item	SPECIFICATIONS
Spectral range	300～1100nm
Supply	5V,12-24VDC
Range	0-1500W/m2
Resolution	1W/m2
Output	0-5V,4-20mA,RS485
Response time	≤5s
Cosine correction	≤±10%(Solar elevation angle=10°)
Non-linear	≤±3%
Temperature effect	±0.08%/℃
Stability	≤±2%/year
Operating Temperature	-40℃-+80℃
Ingress Protection	IP65
Weight(unpacked)	420g
Shell material	Aluminum alloy
Storage Condition	10℃-60℃@20%-90%RH

* The product can be used as a sunshine time sensor Sunshine hours is the sum of time periods that the sun direct irradiance intensity to reach or exceed 120W/m2 time , hour as a unit, a decimal. Sunshine hours is also known as actual irradiance time.

DIMENSION & MOUNTING & SPECTRAL RESPONSE

DIMENSION & MOUNTING (Unit:mm)

In order to the accuracy of the measurement, please ensure that the sensor mounted horizontally as much as possible.

SPECTRAL RESPONSE

PRODUCT DETAILS

professional pyranometer supplier-11 Product Principle

professional pyranometer supplier-13 Installation

professional pyranometer supplier-15 Product Functions

professional pyranometer supplier-17 Product Material

PRODUCT APPLICATION

Schoolyard Weather Station

Solar radiation monitoring station
