PRODUCT DESCRIPTION

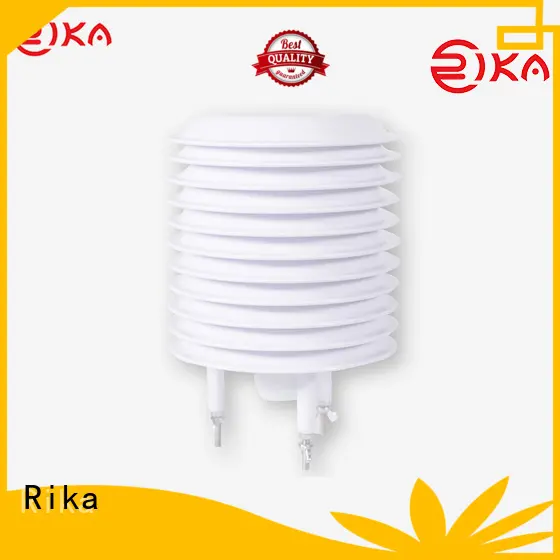

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.

professional radiation shield industry for relative humidity measurement-1

professional radiation shield industry for relative humidity measurement-2

Compact size for easy use

professional radiation shield industry for relative humidity measurement-3

Good air circulation around shield

professional radiation shield industry for relative humidity measurement-4

Excellent stability

professional radiation shield industry for relative humidity measurement-5

Simple operation screen

SPECIFICATIONS

Item	Specifications
Number of plates	4 -20 plates optional,typ.:11,14,19
Color	White
Material	Anti-radiation ABS engineering plastics & Stainless steel screw
Operating temperature	-40℃-+75℃
Dimension	Inner diameter:62mm,Outer diameter:140mm/180mm Height:180mm(11 plates),220mm(14 plates),280mm(19 plates)
Optional accessories	Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS)

BRACKET DIMENSION & WATERPROOF GLANDS SPECIFICATIONS

All 304 stainless steel material （Unit:mm）

professional radiation shield industry for relative humidity measurement-6

professional radiation shield industry for relative humidity measurement-7

Waterproof Glands Specifications

DIMENSION

professional radiation shield industry for relative humidity measurement-8

Plates	Inner space(mm)	D1(mm)	H1(mm)	H2(mm)
4	ø62*45	140	51	approx.55
5	ø62*57	140	64	approx.55
6	ø62*70	140	76	approx.55
7	ø62*82	140	89	approx.55
8	ø62*95	140	101	approx.55
9	ø62*107	140	114	approx.55
10	ø62*120	140	126	approx.55
11	ø62*132	140	139	approx.55
12	ø62*145	140	151	approx.55
13	ø62*157	140	164	approx.55
14	ø62*170	140	176	approx.55
15	ø62*182	140	189	approx.55
16	ø62*195	140	201	approx.55
17	ø62*207	140	214	approx.55
18	ø62*220	140	226	approx.55
19	ø62*232	140	239	approx.55
20	ø62*245	140	251	approx.55

ADAPTER WATERPROOF GLANDS

PG Glands
Model	Cable/Sensor Diameter(mm)
PG7	3-6.5
PG9	4-8
PG11	5-10
PG13.5	6-12
PG16	10-13
PG19	12-15
PG21	13-18
PG25	16-21
PG29	18-25
PG36	22-32

professional radiation shield industry for relative humidity measurement-9

PRODUCT DETAILS

professional radiation shield industry for relative humidity measurement-10

professional radiation shield industry for relative humidity measurement-11 Enhanced UV resistance plastic

professional radiation shield industry for relative humidity measurement-12

professional radiation shield industry for relative humidity measurement-13 Plates quantity

professional radiation shield industry for relative humidity measurement-14

professional radiation shield industry for relative humidity measurement-15 Support & Mounting

professional radiation shield industry for relative humidity measurement-16

professional radiation shield industry for relative humidity measurement-17 Connectors for sensors

PRODUCT APPLICATION

professional radiation shield industry for relative humidity measurement-18

Agriculture Weather Station

professional radiation shield industry for relative humidity measurement-19

Automatic weather station

professional radiation shield industry for relative humidity measurement-20

PV Station

professional radiation shield industry for relative humidity measurement-21

Scenic Spot

professional radiation shield industry for relative humidity measurement-22

Schoolyard Weather Station

professional radiation shield industry for relative humidity measurement-23

Weather Station
