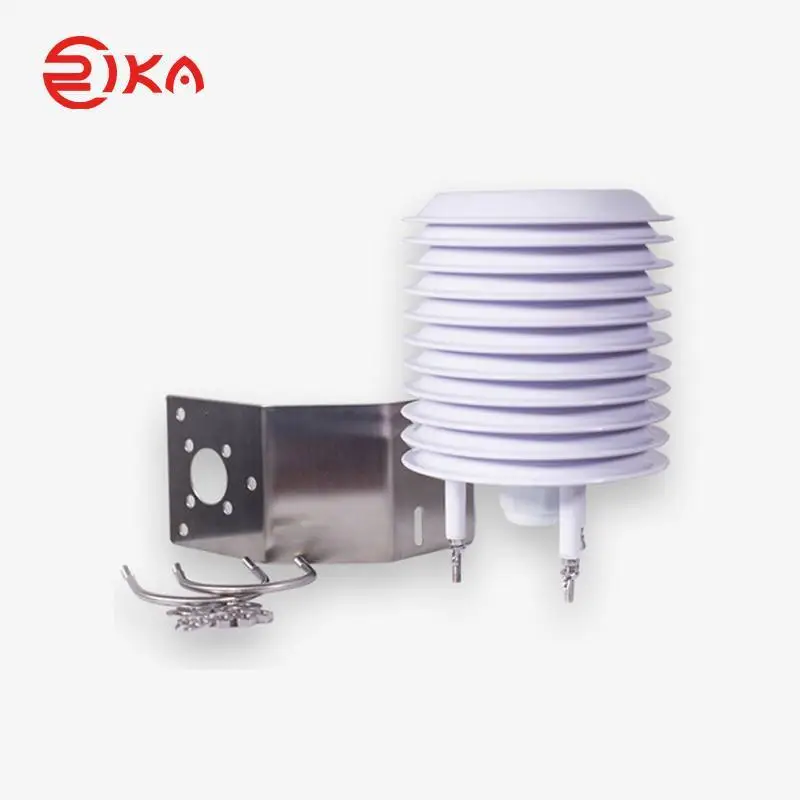

RK95-01 Multi-plate Solar Radiation Shield

OEM/ODM:

Available

MOQ:

1 PCS

Model:

RK95-01

Inquiry

Write a Review

PDF Download

PRODUCT DESCRIPTION

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.

RK95-01 Multi-plate Solar Radiation Shield 2

RK95-01 Multi-plate Solar Radiation Shield 3

Compact size for easy use

RK95-01 Multi-plate Solar Radiation Shield 4

Good air circulation around shield

RK95-01 Multi-plate Solar Radiation Shield 5

Excellent stability

RK95-01 Multi-plate Solar Radiation Shield 6

Simple operation screen

SPECIFICATIONS

Item	Specifications
Number of plates	4 -20 plates optional,typ.:11,14,19
Color	White
Material	Anti-radiation ABS engineering plastics & Stainless steel screw
Operating temperature	-40℃-+75℃
Dimension	Inner diameter:62mm,Outer diameter:140mm/180mm Height:180mm(11 plates),220mm(14 plates),280mm(19 plates)
Optional accessories	Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS)

BRACKET DIMENSION & WATERPROOF GLANDS SPECIFICATIONS

RK95-01 Multi-plate Solar Radiation Shield 7

All 304 stainless steel material （Unit:mm）

RK95-01 Multi-plate Solar Radiation Shield 8

Waterproof Glands Specifications

DIMENSION

RK95-01 Multi-plate Solar Radiation Shield 9

Plates	Inner space(mm)	D1(mm)	H1(mm)	H2(mm)
4	ø62*45	140	51	approx.55
5	ø62*57	140	64	approx.55
6	ø62*70	140	76	approx.55
7	ø62*82	140	89	approx.55
8	ø62*95	140	101	approx.55
9	ø62*107	140	114	approx.55
10	ø62*120	140	126	approx.55
11	ø62*132	140	139	approx.55
12	ø62*145	140	151	approx.55
13	ø62*157	140	164	approx.55
14	ø62*170	140	176	approx.55
15	ø62*182	140	189	approx.55
16	ø62*195	140	201	approx.55
17	ø62*207	140	214	approx.55
18	ø62*220	140	226	approx.55
19	ø62*232	140	239	approx.55
20	ø62*245	140	251	approx.55
