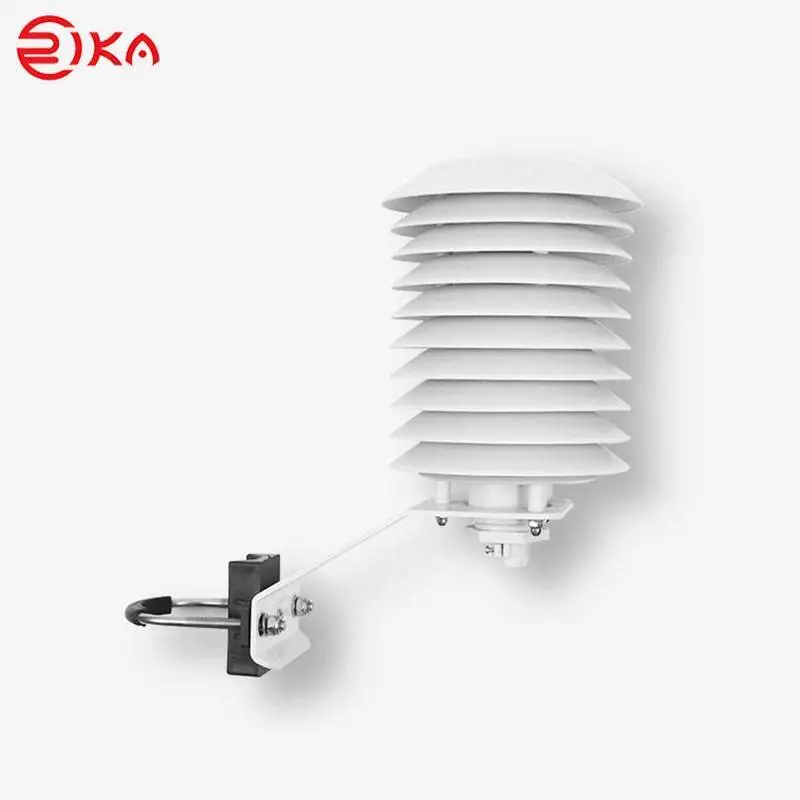

RK95-02A Multi-Plate Radiation Protective Shields
PRODUCT DESCRIPTION
The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather condition.
SPECIFICATIONS
Item | Specifications | ||
A | B | ||
Number of plates | 10 | 7 | |
Color | Pure white | ||
Dimensions( mm) | Inner diameter | 30 | 22 |
Outer diameter | 130 | 79 | |
Internal height | 135 | 80 | |
Material | Special engineering plastics against radiation & Stainless steel screw | ||
Install accessories(attached) | Stainless steel bracket | ||
Operating temperature | -40℃-+75℃ | ||
DIMENSION & MOUNTING
PRODUCT DETAILS
Installation Probes
Suitable For Outdoor Installation
Rain-proof Design
