PRODUCT DESCRIPTION

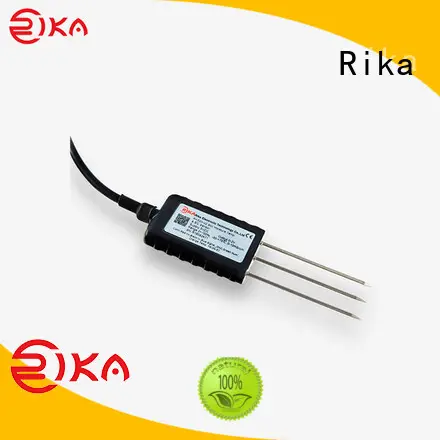

RK520-02 Soil Moisture, Temperature & soil EC Sensor is integrated the moisture, temperature & EC measurement.The stainless steel probe is inserted into soil surface or soil profile to test quickly. The product with temperature compensation to ensure the accuracy of measurement.The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.

professional soil moisture sensor manufacturer for soil monitoring-1

professional soil moisture sensor manufacturer for soil monitoring-2

SPECIFICATIONS

Item	Technical Specification
	Moisture	Temperature	EC
Range	0-100%（m3/m3）	-30℃-+70℃	0-10mS/cm
Accuracy	±2%(0-50%) ±3%(51-100%)	±0.5℃	±3%FS
Output Signal	RS485,0-2V
Response Time	<1s
Supply	5VDC, 12-24VDC
Effective measurement area	With the center of the probe diameter is 70mm, high 70mm cylinder
Housing	ABS
Dimensions	4515145mm( probe:3* Ø3*70mm)
Operating Temperature	-40℃-+80℃
Ingress Protection	IP68
Storage	10-60℃@20%-90%RH
Probe material	316L stainless steel

WORKING PROCESS & DIMENSION

PRODUCT DETAILS

PRODUCT APPLICATION

professional soil moisture sensor manufacturer for soil monitoring-11

s******z

Rika Sensors soil temperature moisture sensor has been tested in many aspects, such as user interface options, display options, additional output options, and environmental parameters. It is guaranteed with a superb crosswise and lengthways printing precision

j******h

The design of Rika Sensors soil moisture sensor has been optimized. For example, the system components including geometric stress of the parts, the flatness of section, and connection mode have been improved by our designers. The product ensures stable and reliable performance

x******f

The quality of Rika Sensors best soil moisture meter will be authenticated using professional inspection approaches, including visual inspection, non-destructive inspection, and metallographic examination. The product covers a wide range of functions

q******x

Rika Sensors best soil moisture meter meets domestic standards for mechanical devices. It is manufactured in line with requirements for different aspects of GB/T and JB/T. The product implements an eco-friendly mechanism

a******c

The design of Rika Sensors soil temperature moisture sensor is a combination of various technologies. Its design adopts automation, intelligence, sensing, computer science, and mechanical engineering technologies. The product is the fruit of continuous innovation and improvement

g******o

Adopt strict quality control system to provide strong guarantee for product quality. The product is of a firm and unbreakable structure
