Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

professional weather station radiation shield manufacturer for temperature measurement

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

2 PCS

Model:

RK95-01

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Enterprise Strength

With a comprehensive management service system, Rika Sensors is capable of providing customers with one-stop and professional services.

PRODUCT DESCRIPTION

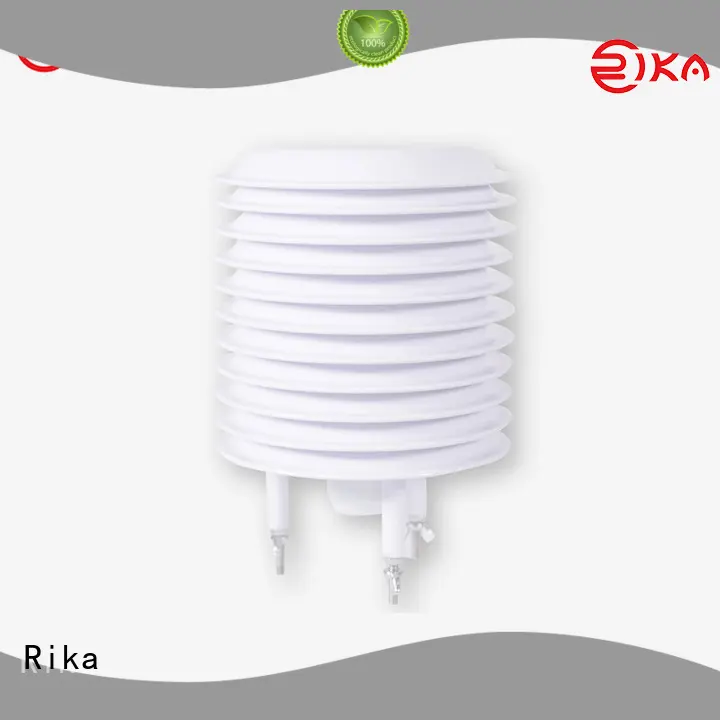

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.

professional weather station radiation shield manufacturer for temperature measurement 2

Compact size for easy use

Good air circulation around shield

Excellent stability

Simple operation screen

SPECIFICATIONS

Item	Specifications
Number of plates	4 -20 plates optional,typ.:11,14,19
Color	White
Material	Anti-radiation ABS engineering plastics & Stainless steel screw
Operating temperature	-40℃-+75℃
Dimension	Inner diameter:62mm,Outer diameter:140mm/180mm Height:180mm(11 plates),220mm(14 plates),280mm(19 plates)
Optional accessories	Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS)

BRACKET DIMENSION & WATERPROOF GLANDS SPECIFICATIONS

All 304 stainless steel material （Unit:mm）

Waterproof Glands Specifications

DIMENSION

professional weather station radiation shield manufacturer for temperature measurement 9

Plates	Inner space(mm)	D1(mm)	H1(mm)	H2(mm)
4	ø62*45	140	51	approx.55
5	ø62*57	140	64	approx.55
6	ø62*70	140	76	approx.55
7	ø62*82	140	89	approx.55
8	ø62*95	140	101	approx.55
9	ø62*107	140	114	approx.55
10	ø62*120	140	126	approx.55
11	ø62*132	140	139	approx.55
12	ø62*145	140	151	approx.55
13	ø62*157	140	164	approx.55
14	ø62*170	140	176	approx.55
15	ø62*182	140	189	approx.55
16	ø62*195	140	201	approx.55
17	ø62*207	140	214	approx.55
18	ø62*220	140	226	approx.55
19	ø62*232	140	239	approx.55
20	ø62*245	140	251	approx.55

ADAPTER WATERPROOF GLANDS

PG Glands
Model	Cable/Sensor Diameter(mm)
PG7	3-6.5
PG9	4-8
PG11	5-10
PG13.5	6-12
PG16	10-13
PG19	12-15
PG21	13-18
PG25	16-21
PG29	18-25
PG36	22-32

professional weather station radiation shield manufacturer for temperature measurement 10

PRODUCT DETAILS

professional weather station radiation shield manufacturer for temperature measurement 11

professional weather station radiation shield manufacturer for temperature measurement 12 Enhanced UV resistance plastic

professional weather station radiation shield manufacturer for temperature measurement 13

professional weather station radiation shield manufacturer for temperature measurement 14 Plates quantity

professional weather station radiation shield manufacturer for temperature measurement 15

professional weather station radiation shield manufacturer for temperature measurement 16 Support & Mounting

professional weather station radiation shield manufacturer for temperature measurement 17

professional weather station radiation shield manufacturer for temperature measurement 18 Connectors for sensors

PRODUCT APPLICATION

Agriculture Weather Station

Automatic weather station

PV Station

Scenic Spot

Schoolyard Weather Station

Weather Station

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
