Rika Sensors strives excellent quality by attaching great importance to details in the production of weather sensors.Rika Sensors carefully selects quality raw materials. Production cost and product quality will be strictly controlled. This enables us to produce weather sensors which is more competitive than other products in the industry. It has advantages in internal performance, price, and quality.

PRODUCT DESCRIPTION

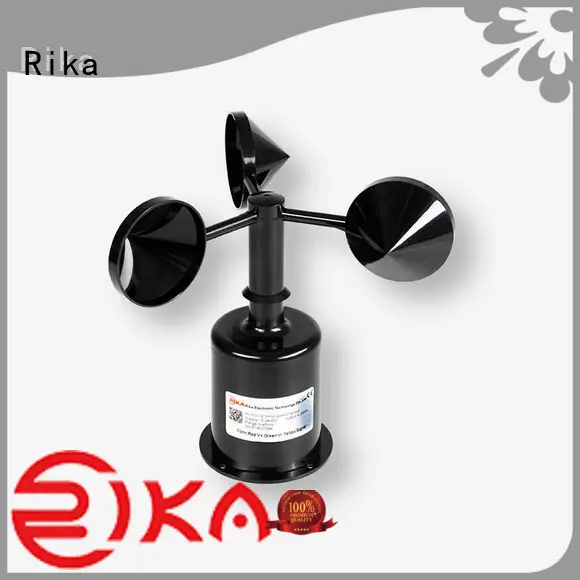

The RK100-02 Wind Speed Sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built in the housing shell. Rika RK100-02 3 cup anemometer can be widely used in meteorology, marine, environmental monitoring, airport, harbor, laboratory, industrial and agricultural areas.

professional wind sensor industry for industrial applications-1

professional wind sensor industry for industrial applications-2

Low starting threshold.

professional wind sensor industry for industrial applications-3

Overall carbon fiber material.

professional wind sensor industry for industrial applications-4

Strong corrosion resistant ability.

professional wind sensor industry for industrial applications-5

Light structure.

professional wind sensor industry for industrial applications-6

Various output signals optional.

professional wind sensor industry for industrial applications-7

Easy Installation.

SPECIFICATIONS

Rika RK100-02 wind speed sensor features

Output	Pulses	4-20mA	0-5V	RS485
Supply voltage	5V, 12V-24V	5V, 12V-24V	5V, 12V-24V	5V, 12V-24V
Load capacity	>1kΩ	<500Ω(typ 250Ω)	>1kΩ
Range	0-45m/s	0-45m/s	0-45m/s	0-45m/s
Accuracy	±(0.3+0.03V)m/s; (V is the current wind speed)
Starting threshold	<0.5m/s
Limit wind speed	50m/s
Ingress protection	IP65
Operating temperature	-40℃ ~ +50℃
Cable grade	Nominal voltage: 300V, Temperature grade: 80℃
Weight(unpacked)	170g
Dimension	Cup rotor: 179mm, Height: 160mm
Main material	Carbon fiber
Storage condition	10℃-50℃@20%-90%RH

DIMENSION & MOUNTING

Rika RK100-02 3-cup anemometer size

Flange mounted:

fix four screws on the bracket and keep the product horizontal.

professional wind sensor industry for industrial applications-8

professional wind sensor industry for industrial applications-9

Connector dimension:

PRODUCT FUNCTION

professional wind sensor industry for industrial applications-11

professional wind sensor industry for industrial applications-12

professional wind sensor industry for industrial applications-13

PRODUCT APPLICATION

professional wind sensor industry for industrial applications-14

Agricultural Meteoroiogical Station

professional wind sensor industry for industrial applications-15

Farming Weather Stations

professional wind sensor industry for industrial applications-16

Greenhouse Weather Station

professional wind sensor industry for industrial applications-17

Metereological Monitoring For Expressway

professional wind sensor industry for industrial applications-18

Metereological Monitoring For High-altitude Facility

professional wind sensor industry for industrial applications-19

Metereological Monitoring For Seaport

professional wind sensor industry for industrial applications-20

Weather Monitoring For Power Generating

professional wind sensor industry for industrial applications-21

Wind Speed Sensor & Wind Direction Sensor
