Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika best pyranometer solar radiation factory for agricultural applications

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

2 PCS

Model:

RK200-04

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Product Details

Next, Rika Sensors will present you with the specific details of environmental monitoring.Rika Sensors carefully selects quality raw materials. Production cost and product quality will be strictly controlled. This enables us to produce environmental monitoring which is more competitive than other products in the industry. It has advantages in internal performance, price, and quality.

PRODUCT DESCRIPTION

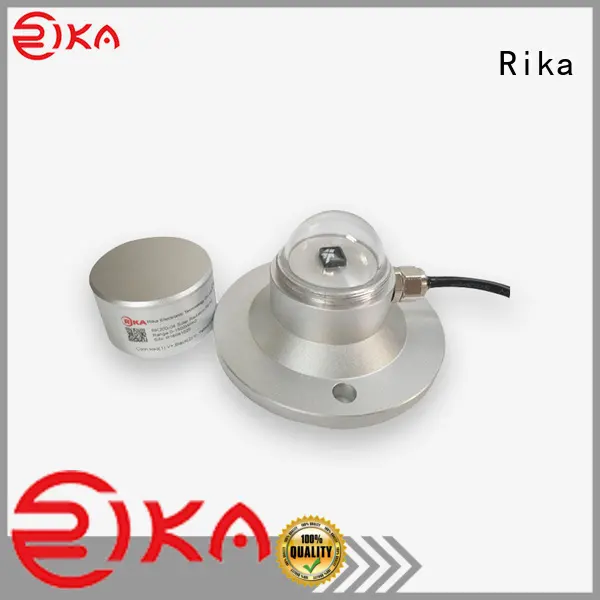

RK200-04 Solar Radiation Sensor is designed on basis of silicon-cell principle. It is mainly used for measuring solar radiation within 300-1100nm wavelength. If the sensing face is downwards, it can test the reflected radiation and solar radiation on the incident to the inclined plane. If shad is added, it can test the scattered radiation. It is widely used to monitor the solar radiation in meteorology, solar energy, agriculture, construction materials aging and atmospheric pollution and etc..

Rika best pyranometer solar radiation factory for agricultural applications 3

Conform to the WMO standard.

Suitable for harsh environment.

Easy installation.

Visual desiccant Window.

Low power Consumption.

High sensitivity.

SPECIFICATIONS

Item	SPECIFICATIONS
Spectral range	300～1100nm
Supply	5V,12-24VDC
Range	0-1500W/m2
Resolution	1W/m2
Output	0-5V,4-20mA,RS485
Response time	≤5s
Cosine correction	≤±10%(Solar elevation angle=10°)
Non-linear	≤±3%
Temperature effect	±0.08%/℃
Stability	≤±2%/year
Operating Temperature	-40℃-+80℃
Ingress Protection	IP65
Weight(unpacked)	420g
Shell material	Aluminum alloy
Storage Condition	10℃-60℃@20%-90%RH

* The product can be used as a sunshine time sensor Sunshine hours is the sum of time periods that the sun direct irradiance intensity to reach or exceed 120W/m2 time , hour as a unit, a decimal. Sunshine hours is also known as actual irradiance time.

DIMENSION & MOUNTING & SPECTRAL RESPONSE

DIMENSION & MOUNTING (Unit:mm)

In order to the accuracy of the measurement, please ensure that the sensor mounted horizontally as much as possible.

SPECTRAL RESPONSE

PRODUCT DETAILS

Rika best pyranometer solar radiation factory for agricultural applications 12

Rika best pyranometer solar radiation factory for agricultural applications 13 Product Principle

Rika best pyranometer solar radiation factory for agricultural applications 14

Rika best pyranometer solar radiation factory for agricultural applications 15 Installation

Rika best pyranometer solar radiation factory for agricultural applications 16

Rika best pyranometer solar radiation factory for agricultural applications 17 Product Functions

Rika best pyranometer solar radiation factory for agricultural applications 18

Rika best pyranometer solar radiation factory for agricultural applications 19 Product Material

PRODUCT APPLICATION

Schoolyard Weather Station

Solar radiation monitoring station

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
