Rika best rain and temperature gauge manufacturer

Rika best rain and temperature gauge manufacturer

Model:
RK400-01
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika best rain and temperature gauge manufacturer
Product Comparison
Rika Sensors is certified by various qualifications. We have advanced production technology and great production capability. environmental monitoring has many advantages such as reasonable structure, excellent performance, good quality, and affordable price.Rika Sensors's environmental monitoring has been further improved based on advanced technology, as reflected in the following aspects.
  • news-Rika best rain and temperature gauge manufacturer-Rika Sensors-img
    news-Rika Sensors-Rika best rain and temperature gauge manufacturer-img

PRODUCT DESCRIPTION

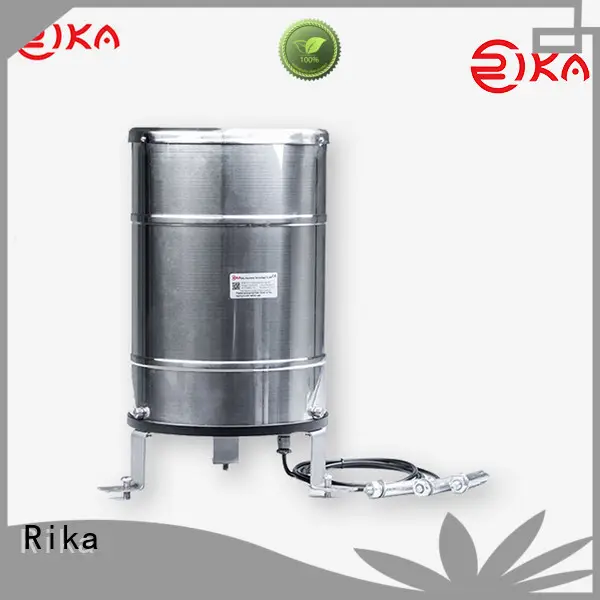

The RK400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.

Rika best rain and temperature gauge manufacturer-1

SPECIFICATIONS

Item

Specification

Rainfall collector

Diameter :φ200mm, height: 350mm

Measured rainfall intensity

Max: 4mm/min

Allow rainfall intensity

Max: 10mm/min

Resolution

0.1mm, 0.2mm

Accuracy(2mm/min)

±4%

Maximum load voltage

30VDC(pulse output)

Maximum load current

20mA(pulse output)

Output

Reed switch pulses,RS485(12-24VDC supply)

Operating temperature(no freeze)

-20-+80℃

Main material

Collector:304SS,tipping bucket:ABS

Tipping bucket

Single

Heating(optional)

Heating power: approx.350W
     Heating voltage:220VAC

Collector filter

Removable filter (prevent leaves and sundries)optional

Weight(unpacked)

3.5kg

WORKING PROCESS & DIMENSION

PRODUCT DETAILS

Rika best rain and temperature gauge manufacturer-10

Rika best rain and temperature gauge manufacturer-11Product Principle & Material

Rika best rain and temperature gauge manufacturer-12

Rika best rain and temperature gauge manufacturer-13 Product Feature

Rika best rain and temperature gauge manufacturer-14

Rika best rain and temperature gauge manufacturer-15Product Feature

PRODUCT APPLICATION
