Rika best ultrasonic wind industry for meteorology field

Rika best ultrasonic wind industry for meteorology field

Model:
RK110-02
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika best ultrasonic wind industry for meteorology field

PRODUCT DESCRIPTION

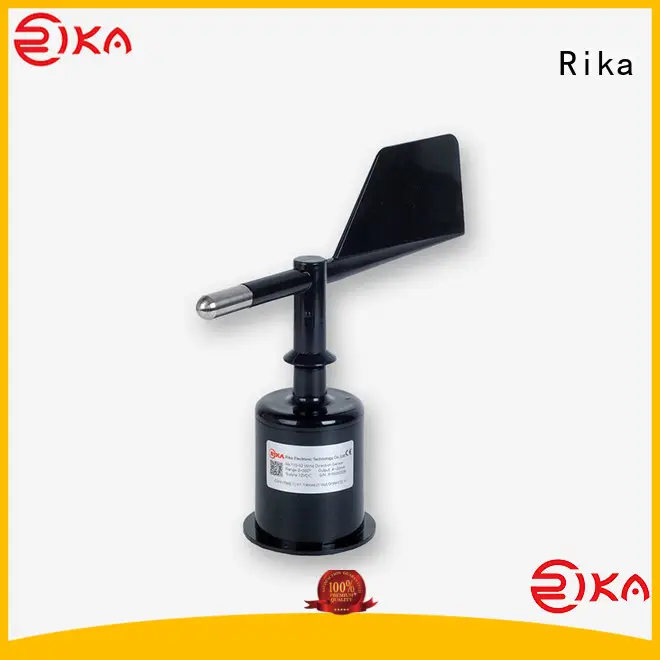

The RK110-02 wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction. High precision magnetic sensitive chips are built in the housing shell. The wind vane is constructed on low inertia light metal to show wind directions. The product is wide range, good linearity, strong anti- lightning strike, good performance.

Rika best ultrasonic wind industry for meteorology field-1

SPECIFICATIONS

Output

4-20mA

0-5V

RS485

Supply Voltage

5V,12V-24V

5V,12V,24V

5V,12V-24V

Load Capacity

<500Ω(typ 250Ω)

>1kΩ


Range

0~360°

Accuracy

±3°

Resolution

Starting Threshold

<0.5m/s

Limit wind speed

50m/s

Ingress Protection

IP65

Operating Temperature

-40℃~+50℃

Cable Grade

Nominal voltage: 300V, Temperature grade: 80℃

Weight(unpacked)

195g

Dimension

Turning Radius:147mm,Height:199mm

Main material

Carbon fiber

Storage Condition

10℃-50℃@20%-90%RH

DIMENSION & MOUNTING

PRODUCT DETAILS

Rika best ultrasonic wind industry for meteorology field-10

Rika best ultrasonic wind industry for meteorology field-11Product Principle & Material

Rika best ultrasonic wind industry for meteorology field-12

Rika best ultrasonic wind industry for meteorology field-13 Multiple Output Optional

Rika best ultrasonic wind industry for meteorology field-14

Rika best ultrasonic wind industry for meteorology field-15Product Features

PRODUCT APPLICATION
