Rika Sensor is a sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika Sensors  >  AI - Page Sitemap  >  Rika great data recorder factory for environmental applications
Rika great data recorder factory for environmental applications

Rika great data recorder factory for environmental applications

Model:
RK600-07
MOQ:
1PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika great data recorder factory for environmental applications
Product Comparison
Rika Sensors carries out strict quality monitoring and cost control on each production link of environmental monitoring, from raw material purchase, production and processing and finished product delivery to packaging and transportation. This effectively ensures the product has better quality and more favorable price than other products in the industry.Compared with other products in the same category, environmental monitoring has the following competitive advantages.
  • Rika great data recorder factory for environmental applications-Rika Sensors-img
    news-Rika Sensors-img

PRODUCT DESCRIPTION

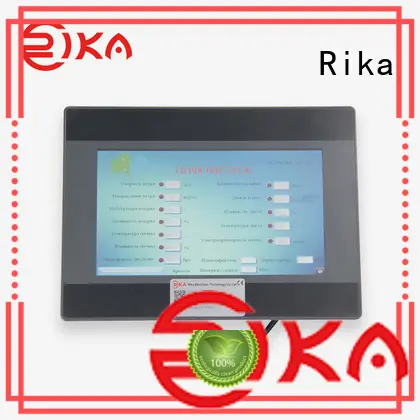

RK600-07 Data Logger with data acquisition, storage, transmission and management, and other functions, is the core component of automatic weather station, which can connect 32 parameter at the same time, has the settings and color LCD display, can communication with PC via cable or wireless connection, provide communication protocol, convenient for secondary development.


Rika great data recorder factory for environmental applications-1

SPECIFICATIONS

Item

Technical Specification

Display

3.5” TFT true color LCD display, 320 * 240 resolution, high-definition LED back-light, three side close to zero point of view

Input channels

1-18 optional(signal type can be configured)

Input signal

Current:4-20mA,0-10mA,0-20mA

Voltage:0-5V,0-10V,1-5V

Thermocouple:B,E,J,K,S,T,R,N

Thermal resistance:Cu50,PT100

Other signals can be customized

Accuracy

0.2%FS

Internal storage capacity

48M

External storage

U-disk(attached)

Supply

AC220V,DC24V

Power consumption

20VA(max.)

Operating temperature

-10-+55℃@10-85%RH

Storage condition

-20-+60℃@5-95%RH

Communication mode

RS485(MODBUS-RTU),RS232(add external module)

Output capability

3.6W(24V@150mA)

Sample Period
1s
Power-drop protection

Data stored in the internal flash, historical data and configuration parameters will not be lost when power supply drop



Alarm outputMax.4 channels relay NO,250V/2A

Dimension96*96*100mm(hole size:92*92mm)

Installation of panel thickness1.5-6mm

Weight(unpacked)370g



SYSTEM CONNECTION DIAGRAMCO

PRODUCT DETAILS

Rika great data recorder factory for environmental applications-9

Rika great data recorder factory for environmental applications-10LCD display

Rika great data recorder factory for environmental applications-11

Rika great data recorder factory for environmental applications-12 Product feature

Rika great data recorder factory for environmental applications-13

Rika great data recorder factory for environmental applications-14Product function
