PRODUCT DESCRIPTION

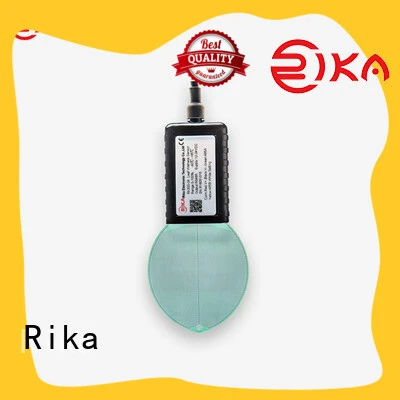

RK300-04 Leaf Wetness Sensor is an important tool for observing and studying leaf wetness, preventing pests and diseases, and spraying sprinkler control. The accurate measurement of the moisture content of the leaf surface can be used to monitor the trace moisture or ice crystal residue. The shape of the sensor is simulated by the blade, which can simulate the characteristics of the leaf surface, so that it can reflect the situation of the leaf surface more accurately. By measuring the variation of the dielectric constant of the upper surface of the blade, the mist, water vapor and ice can be measured.

Rika perfect ambient sensor industry for dust monitoring 2

High sensitivity.

LCD display optional.

Temperature compensation.

Fast response.

Multiple signal output options.

Excellent stability.

SPECIFICATIONS

Item	Technical Specification
Range	Wetness: 0-100% Temperature: -40-+80℃
Accuracy	Wetness: ±3%(0-50%),±5%(>50%) Temperature: ±0.5℃
Repeatability	<±3%fs
Temperature Drift	≤0.2%FS/℃
Supply	5VDC,12-24VDC
Output	4-20mA,0-5V,0-2V,RS485
IP Rating	IP65
Operating Temperature	-40℃-+80℃
Dimension	6513145mm
Storage	-40-70℃@20%-90%RH

DIMENSION & MOUNTING

Rika perfect ambient sensor industry for dust monitoring 9

When installing the sensor to simulate the face of the grid part of the face, roughly the same angle with the surrounding surface and the ground. Such as foliar fertilization spray testing, can be installed in the plant height of different height, to ensure that the plant close to the ground effect of foliar fertilization.

PRODUCT DETAILS

Rika perfect ambient sensor industry for dust monitoring 10

Rika perfect ambient sensor industry for dust monitoring 11 Product Principle

Rika perfect ambient sensor industry for dust monitoring 12

Rika perfect ambient sensor industry for dust monitoring 13 Multiple Output Optional

Rika perfect ambient sensor industry for dust monitoring 14

Rika perfect ambient sensor industry for dust monitoring 15 RS485 Or RS232 Output

Rika perfect ambient sensor industry for dust monitoring 16

Rika perfect ambient sensor industry for dust monitoring 17 Product Features

PRODUCT APPLICATION

Leaf wetness monitoring

Agriculture irrigation

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
