Rika perfect professional rain gauge manufacturer for measuring rainfall amount

Rika perfect professional rain gauge manufacturer for measuring rainfall amount

Model:
RK400-01
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika perfect professional rain gauge manufacturer for measuring rainfall amount
Application Scope
The weather sensors produced by Rika Sensors is very popular in the market and is widely used in Manufacturing Environmental Protection Waste Treatment Environmental Products industry.Rika Sensors has professional engineers and technicians, so we are able to provide one-stop and comprehensive solutions for customers.

PRODUCT DESCRIPTION

The RK400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.

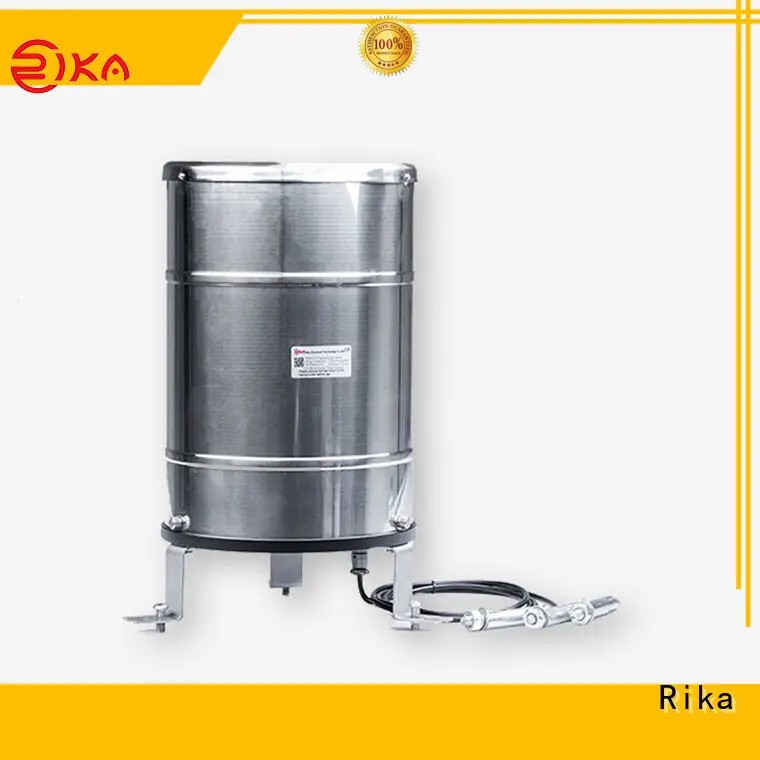

Rika perfect professional rain gauge manufacturer for measuring rainfall amount-1

SPECIFICATIONS

Item

Specification

Rainfall collector

Diameter :φ200mm, height: 350mm

Measured rainfall intensity

Max: 4mm/min

Allow rainfall intensity

Max: 10mm/min

Resolution

0.1mm, 0.2mm

Accuracy(2mm/min)

±4%

Maximum load voltage

30VDC(pulse output)

Maximum load current

20mA(pulse output)

Output

Reed switch pulses,RS485(12-24VDC supply)

Operating temperature(no freeze)

-20-+80℃

Main material

Collector:304SS,tipping bucket:ABS

Tipping bucket

Single

Heating(optional)

Heating power: approx.350W
     Heating voltage:220VAC

Collector filter

Removable filter (prevent leaves and sundries)optional

Weight(unpacked)

3.5kg

WORKING PROCESS & DIMENSION

PRODUCT DETAILS

Rika perfect professional rain gauge manufacturer for measuring rainfall amount-10

Rika perfect professional rain gauge manufacturer for measuring rainfall amount-11Product Principle & Material

Rika perfect professional rain gauge manufacturer for measuring rainfall amount-12

Rika perfect professional rain gauge manufacturer for measuring rainfall amount-13 Product Feature

Rika perfect professional rain gauge manufacturer for measuring rainfall amount-14

Rika perfect professional rain gauge manufacturer for measuring rainfall amount-15Product Feature

PRODUCT APPLICATION
