Rika professional ultrasonic anemometer factory for industrial applications

Rika professional ultrasonic anemometer factory for industrial applications

Model:
RK100-02
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika professional ultrasonic anemometer factory for industrial applications
Product Details
With a focus on product quality, Rika Sensors pursues perfection in every detail.Rika Sensors pays great attention to integrity and business reputation. We strictly control the quality and production cost in the production. All these guarantee environmental sensor to be quality-reliable and price-favorable.
  • Rika professional ultrasonic anemometer factory for industrial applications-Rika Sensors-img

PRODUCT DESCRIPTION

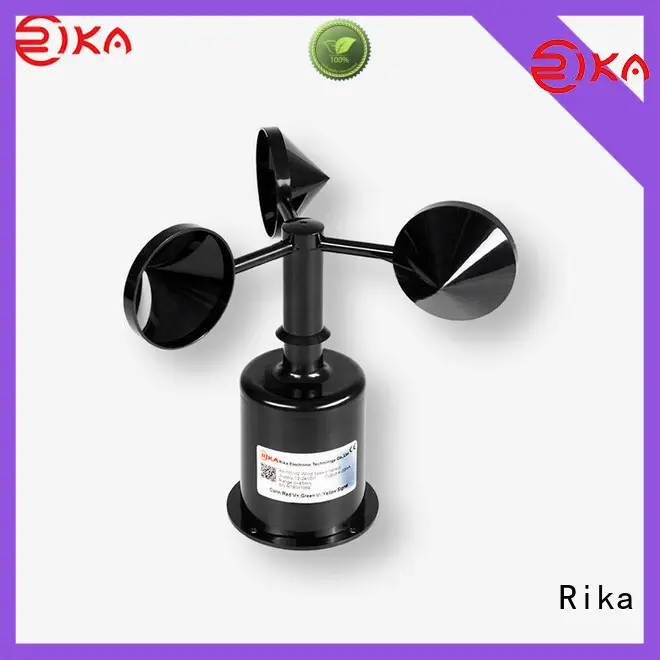

The RK100-02 Wind Speed Sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built in the housing shell. Rika RK100-02 3 cup anemometer can be widely used in meteorology, marine, environmental monitoring, airport, harbor, laboratory, industrial and agricultural areas.

Rika professional ultrasonic anemometer factory for industrial applications-1

SPECIFICATIONS

Rika RK100-02 wind speed sensor features

Output

Pulses

4-20mA

0-5V

RS485

Supply voltage

5V, 12V-24V

5V, 12V-24V

5V, 12V-24V

5V, 12V-24V

Load capacity

>1kΩ

<500Ω(typ 250Ω)

>1kΩ


Range

0-45m/s

0-45m/s

0-45m/s

0-45m/s

Accuracy

±(0.3+0.03V)m/s; (V is the current wind speed)

Starting threshold

<0.5m/s

Limit wind speed

50m/s

Ingress protection

IP65

Operating temperature

-40℃ ~ +50℃

Cable grade

Nominal voltage: 300V, Temperature grade: 80℃

Weight(unpacked)

170g

Dimension

Cup rotor: 179mm, Height: 160mm

Main material

Carbon fiber

Storage condition

10℃-50℃@20%-90%RH

DIMENSION & MOUNTING

Rika RK100-02 3-cup anemometer size

PRODUCT FUNCTION

Rika professional ultrasonic anemometer factory for industrial applications-11
Rika professional ultrasonic anemometer factory for industrial applications-12
Rika professional ultrasonic anemometer factory for industrial applications-13

PRODUCT APPLICATION
