PRODUCT DESCRIPTION

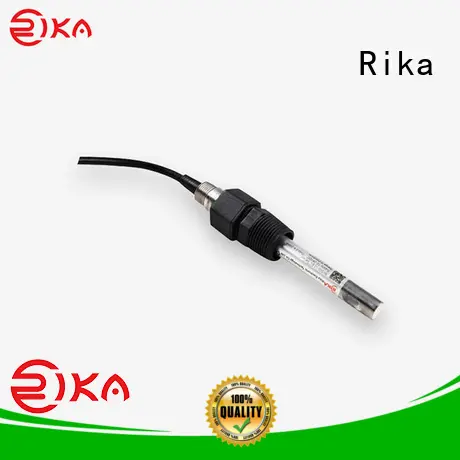

RK500-13 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.

Rika professional water quality measurement supplier for conductivity monitoring 2

SPECIFICATIONS

Item	Technical Specification
	EC	Salinity
Measuring medium	Liquid
Principle	Frequency conversion method
Range	0～500us/cm, 0～5000us/cm, 0～10000us/cm, 0～200000us/cm(any range of 0-300ms/cm can be customized, 1ms/cm = 1000us/cm)	0～100000ppm(mg/L) 1ppm(mg/L)=1000ppb(ug/L)=1000000ppt(ng/L)
Supply	7-30VDC(power consumption<0.2W)
Accuracy	±1%
Response time	1s
Output Signal	4-20mA & RS485 at the same time
Electrode	Titanium alloy
Temperature compensation		Automatic compensation
Drift	≤0.3%FS/24h
Operating Temperature	-20℃-+80℃
Probe material	316L or ABS(Strongly corrosive liquids)
Ingress Protection	IP68
Storage	10-60℃@20%-90%RH
Cable length	Default:5m

DIMENSION

Dimension （Unit：mm）

Installation & Usage

Directly into the liquid
Adopt submersible mounting bracket(show in the below figure)

PRODUCT DETAILS

Rika professional water quality measurement supplier for conductivity monitoring 11

Rika professional water quality measurement supplier for conductivity monitoring 12 Product Principle & Material

Rika professional water quality measurement supplier for conductivity monitoring 13

Rika professional water quality measurement supplier for conductivity monitoring 14 Temperature Compensated

Rika professional water quality measurement supplier for conductivity monitoring 15

Rika professional water quality measurement supplier for conductivity monitoring 16 Installation

PRODUCT APPLICATION

Agricultural Irrigation

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
