Rika Sensors solar irradiance sensor price solution provider

Rika Sensors solar irradiance sensor price solution provider

Model:
RK95-08
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika Sensors solar irradiance sensor price solution provider

Company Advantages
1. Rika Sensors solar irradiance sensor price represents the finest workmanship in the market as it is manufactured using the leading technology. This product is available in various output signals
2. The product presented by us is highly acclaimed amid the crowd of customers. This product allows for an easy installation
3. The product has strong material strength. The pipeline of this product has been tested during production and the result proved that it still keeps stable and not subject to crack after 1,000 times of folding. This product is highly resistant to sand and hail
4. The product is safe and non-toxic. Its metals ingredients such as lead and mercury do not exceed the safety limit. This product has the advantage of vibration resistance
5. The product has the advantage of electrical safety. During its operation, it poses no electrical hazards such as shock, fire, or explosion. This product is a great detection helper for many engineers

Company Features
1. The strong R&D team is a power to promote our growth. They all have excellent educational backgrounds. With knowledge and deep industry know-how, they are always able to offer customers satisfying product solutions.
2.  The decisive determination of Rika Sensors is to supply the best customer service. Welcome to visit our factory!


PRODUCT DESCRIPTION

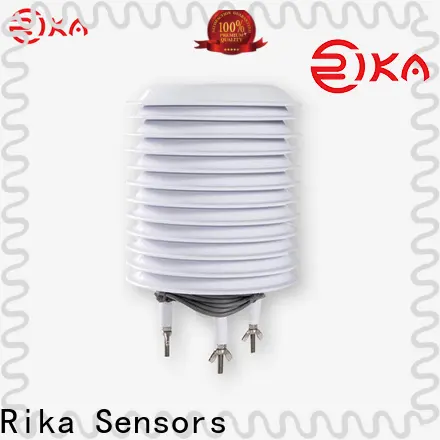

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.The product with breathing fan, make sure the screen inside and outside environment difference is minimal.

Rika Sensors solar irradiance sensor price solution provider-1

SPECIFICATIONS

Item

Specifications

Number of plates

7-20 plates optional,typ.:11,14,19

Color

White

Material

Anti-radiation engineering plastics & Stainless steel screw

Supply of fan

7-13.8VDC(typ.12VDC)

Rated power

1W

Operating temperature

-40℃-+75℃

Dimension

Inner diameter:62mm,Outer diameter:140mm/180mm
     Height:180mm(11 plates),220mm(14 plates),280mm(19 plates)

Optional accessories

Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS)

BRACKET DIMENSION & WATERPROOF GLANDS SPECIFICATIONS

DIMENSION

Rika Sensors solar irradiance sensor price solution provider-8

Plates

Inner space(mm)

D1(mm)

H1(mm)

H2(mm)

7

ø62*50

140

89

approx.63

8

ø62*63

140

101

approx.63

9

ø62*75

140

114

approx.63

10

ø62*88

140

126

approx.63

11

ø62*100

140

139

approx.63

12

ø62*113

140

151

approx.63

13

ø62*125

140

164

approx.63

14

ø62*138

140

176

approx.63

15

ø62*150

140

189

approx.63

16

ø62*163

140

201

approx.63

17

ø62*175

140

214

approx.63

18

ø62*198

140

226

approx.63

19

ø62*200

140

239

approx.63

20

ø62*213

140

251

approx.63

ADAPTER WATERPROOF GLANDS

PG  Glands

Model

Cable/Sensor Diameter(mm)

PG7

3-6.5

PG9

4-8

PG11

5-10

PG13.5

6-12

PG16

10-13

PG19

12-15

PG21

13-18

PG25

16-21

PG29

18-25

PG36

22-32

Rika Sensors solar irradiance sensor price solution provider-9

PRODUCT DETAILS

Rika Sensors solar irradiance sensor price solution provider-10

Rika Sensors solar irradiance sensor price solution provider-11Material

Rika Sensors solar irradiance sensor price solution provider-12

Rika Sensors solar irradiance sensor price solution provider-13 Multiple output optional

Rika Sensors solar irradiance sensor price solution provider-14

Rika Sensors solar irradiance sensor price solution provider-15Product features
