PRODUCT DESCRIPTION

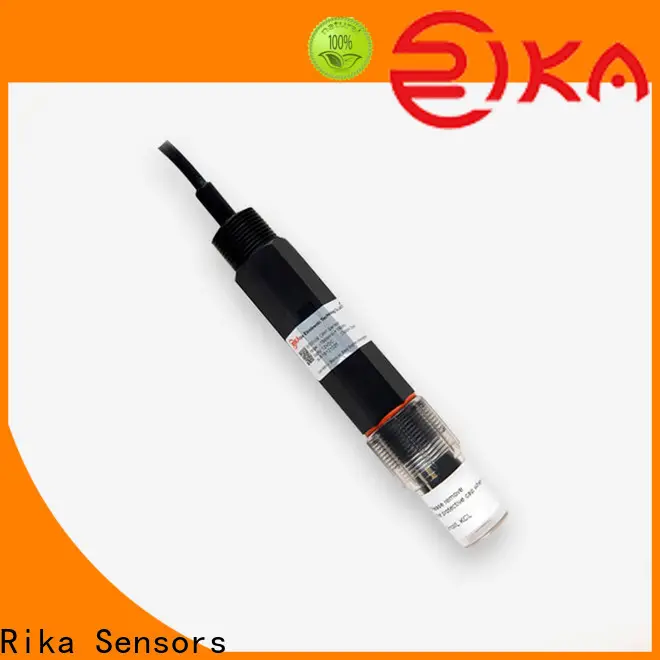

RK500-06 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.

Rika Sensors top rated water ph sensor supplier for dissolved oxygen, SS,ORP/Redox monitoring 2

SPECIFICATIONS

Item	Technical Specification
	ORP	Temperature(only for RS485)
Measurement Principle	Electrochemical(platinum ring)	Thermal resistance
Range	-1500mV-+1500mV	0-80℃
Resolution	0.1mV	0.1℃
Accuracy	±0.5mV	±0.5℃
Supply	7-30VDC
Response time	5s
Output	4-20mA & RS485 at the same time
Operating Environment	-10-+80℃(<0.6MPa)
Stability	≤1%/year
Maintenance	Every 1 months to clean the electrode, every 6 months calibrated
Power consumption	<0.4W
Ingress Protection	IP68
Storage	10-60℃@20%-90%RH
Cable length	5m default, customizable

DIMENSION

Type A

Universal type ABS housing, Up and down are NPT3/4 threads

Type C

Standard glass type Length=120mm

Type B

Highly corrosion resistant PPS housing, Up and down are NPT3/4 threads

Unit:mm

ELECTRODE MAINTENANCE & INSTALLATION AND FIXED

PH electrode is not used at ordinary times and can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water and deionize the water or tap water with minimal plasma content.If the PH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l Hcl or NaOH solution for a few minutes and then washed with distilled water. If the PH electrode is contaminated with organic substances, it can be cleaned with alcohol or acetone and then cleaned with distilled water.(note: the protective cap before the electrode should be removed when using);

Clean the electrode with tap water every 3 months or 6 months according to the working environment.

Mounting bracket(length=1m) is optional

Rika Sensors top rated water ph sensor supplier for dissolved oxygen, SS,ORP/Redox monitoring 13

Rika Sensors top rated water ph sensor supplier for dissolved oxygen, SS,ORP/Redox monitoring 14

Rika Sensors top rated water ph sensor supplier for dissolved oxygen, SS,ORP/Redox monitoring 15

Rika Sensors top rated water ph sensor supplier for dissolved oxygen, SS,ORP/Redox monitoring 16

PRODUCT DETAILS

Rika Sensors top rated water ph sensor supplier for dissolved oxygen, SS,ORP/Redox monitoring 17

Rika Sensors top rated water ph sensor supplier for dissolved oxygen, SS,ORP/Redox monitoring 18 Product Principle & Material

Rika Sensors top rated water ph sensor supplier for dissolved oxygen, SS,ORP/Redox monitoring 19

Rika Sensors top rated water ph sensor supplier for dissolved oxygen, SS,ORP/Redox monitoring 20 Product Features

PRODUCT APPLICATION

Agricultural Irrigation
