Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika snow sensor supplier

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

2 PCS

Model:

RK400-04

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Product Comparison

environmental sensor has the following advantages: well-chosen materials, reasonable design, stable performance, excellent quality, and affordable price. Such a product is up to the market demand.Compared with products in the same category,Rika Sensors's environmental sensor's outstanding advantages are as follows.

PRODUCT DESCRIPTION

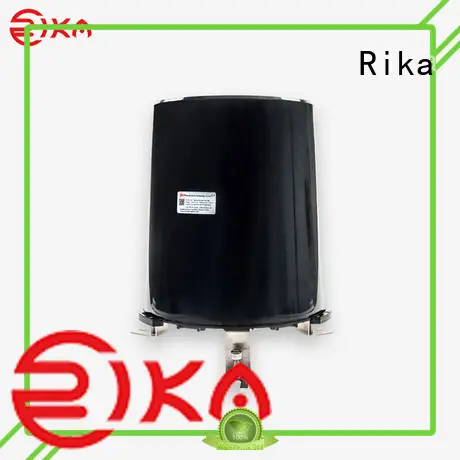

RK400-04 Economical Tipping Bucket Rainfall Sensor is a hydrology, meteorological instrument used to measure the nature of rainfall, and it converts the precipitation into a pulse signal output. Designed with insect-proof nets, free blocking nozzle and built-in leveller. The model can be used in meteorology, hydrology, agriculture, forestry, field monitoring stations and other industries. Combined with rainfall recorder can be used to measure measure precipitation, precipitation intensity, precipitation time.

Compact size for easy use.

Auto-heating function.

High accuracy.

Stainless steel Construction.

Outlet with insect-proof.

SPECIFICATIONS

Item	Specification
Collector	Diameter :φ200mm, height: 271mm
Measured rainfall intensity	Max: 4mm/min
Allow rainfall intensity	Max: 8mm/min
Resolution	0.2mm
Accuracy(2mm/min)	±4%
Maximum load voltage	30VDC(pulse output)
Maximum load current	20mA
Output	Pulses(@10kΩ&0.01uF),RS485(12-24VDC supply)
Operating temperature	0-60℃@0%-100%RH
Weight(unpacked)	Rainfall collector & tipping bucket: ABS, Supporting leg:304SS
Weight(unpacked)	2kg

WORKING PROCESS DIMENSION & MOUNTING

DIMENSION & MOUNTING

Adjust the balance foot screws to ensure that it is in a horizontal position.Using three fastening screws to fix this three support legs at the platform to keep the entire apparatus at an optimum level , which ensure the accuracy of rainfall data.

WORKING PROCESS

Rainfall is captured in the 200mm diameter collector funnel and is directed through a delivery pipe to fill a divided ABS injection molded tipping bucket device.The bucket is pivoted through its center and has a preset calibration to tip for 0.2 mm of rainfall. When the bucket is “full”, it pivots and empties - this action magnetically closes and opens a reed switch, sending a pulse signal to the data logger or electronic counter. Through this tipping “seesaw” action, the other side of the bucket is aligned to receive the flow from the delivery pipe. This recording and tipping cycle continues with rainfall.

PRODUCT DETAILS

Rika snow sensor supplier 13 Product Principle

Rika snow sensor supplier 15 Material

Rika snow sensor supplier 17 Leaf Filter

Rika snow sensor supplier 19 Horizontal Adjustment

PRODUCT APPLICATION

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
