Rika soil humidity sensor industry for detecting soil conditions

Rika soil humidity sensor industry for detecting soil conditions

Model:
RK520-02
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika soil humidity sensor industry for detecting soil conditions
Application Scope
environmental sensor produced by Rika Sensors is applied to the following industries.Rika Sensors could customize comprehensive and efficient solutions according to customers' different needs.
  • Rika soil humidity sensor industry for detecting soil conditions-Rika Sensors-img

PRODUCT DESCRIPTION

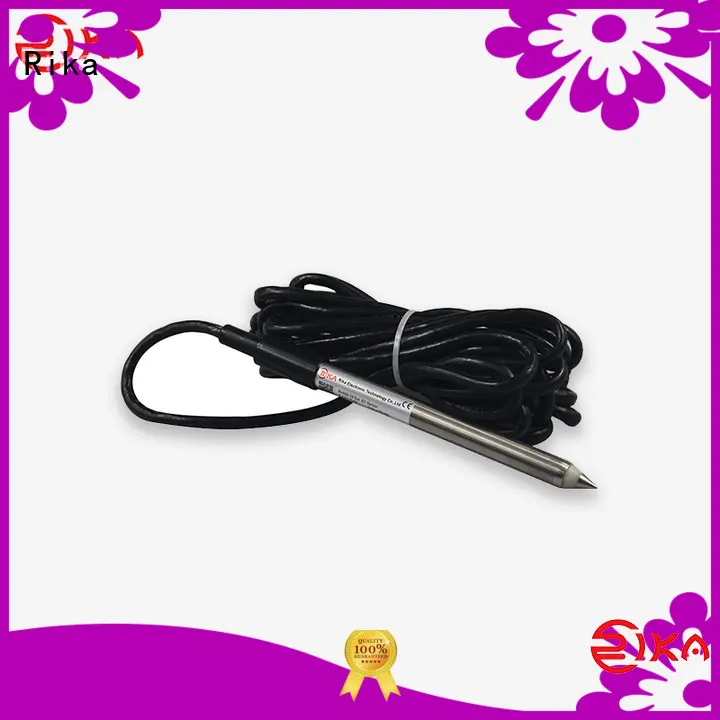

RK520-02 Soil Moisture, Temperature & soil EC Sensor is integrated the moisture, temperature & EC measurement.The stainless steel probe is inserted into soil surface or soil profile to test quickly. The product with temperature compensation to ensure the accuracy of measurement.The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.

Rika soil humidity sensor industry for detecting soil conditions-1

SPECIFICATIONS

Item

Technical Specification

Moisture

Temperature

EC

Range

0-100%(m3/m3)

-30℃-+70℃

0-10mS/cm

Accuracy

±2%(0-50%)

±3%(51-100%)

±0.5℃

±3%FS

Output Signal

RS485,0-2V

Response Time

<1s

Supply

5VDC, 12-24VDC

Effective measurement area

With the center of the probe diameter is 70mm, high 70mm cylinder

Housing

ABS

Dimensions

45*15*145mm( probe:3* Ø3*70mm)

Operating Temperature

-40℃-+80℃

Ingress Protection

IP68

Storage

10-60℃@20%-90%RH

Probe material

316L  stainless steel

WORKING PROCESS & DIMENSION

PRODUCT DETAILS

PRODUCT APPLICATION
