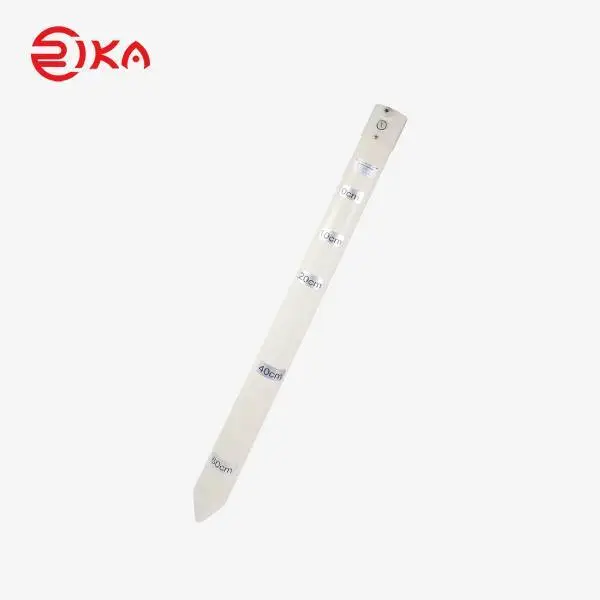

RK520-04 Multilayer Conduit Type Soil Temperature and Humidity Sensor

Payment:

T/T, L/C or Paypal

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Write a Review

PDF Download

PRODUCT DESCRIPTION

The soil temperature and humidity sensor based on FDR (Frequancy Domain Reflection) principle, using the FDR layered tube type soil moisture measuring method, according to the frequency change of the electromagnetic wave emitted by the detector in different dielectric coefficient material, calculated from the measured soil moisture. Capable of simultaneous measurement of different depth of soil moisture and soil temperature. This series of products can be widely used in drought monitoring, soil research, intelligent irrigation, agricultural production prediction and landslides.

RK520-04 Multilayer Conduit Type Soil Temperature and Humidity Sensor 7

RK520-04 Multilayer Conduit Type Soil Temperature and Humidity Sensor 8

Fast response.

RK520-04 Multilayer Conduit Type Soil Temperature and Humidity Sensor 9

Excellent stability.

RK520-04 Multilayer Conduit Type Soil Temperature and Humidity Sensor 10

Widely used.

RK520-04 Multilayer Conduit Type Soil Temperature and Humidity Sensor 11

High precision.

RK520-04 Multilayer Conduit Type Soil Temperature and Humidity Sensor 12

High sensitivity.

RK520-04 Multilayer Conduit Type Soil Temperature and Humidity Sensor 13

Simple operation.

SPECIFICATIONS

Item	Technical Specification
	Moisture		Temperature
Range	0-100%（m3/m3）		-20℃-+60℃
Accuracy	±3%(0-50%)		±0.5℃
Output Signal	RS485
Measurement level	3	4	8	10
Dimensions	Ø63*730mm	Ø63*865mm	Ø63*1200mm	Ø63*1520mm
Response Time	<1s
Supply	12-24VDC
Power consumption	<40mA @24VDC
MTTF	2500h
Housing	PVC
Operating Temperature	-40℃-+80℃
Ingress Protection	IP68(underground)
Storage	10-60℃@20%-90%RH
