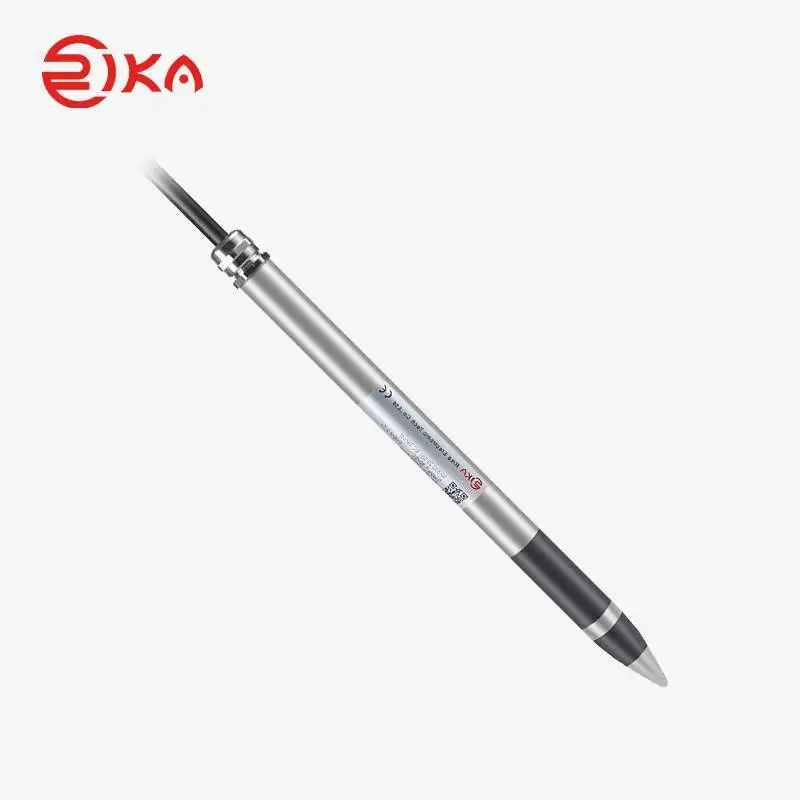

RK500-23 Soil EC Sensor & Soil Salinity Sensor

这里可以自定义设置
RK500-23 Soil EC Sensor & Soil Salinity Sensor
  • RK500-23 Soil EC Sensor & Soil Salinity Sensor
  • RK500-23主图4.jpg
  • RK500-23主图2.jpg
  • RK500-23主图6.jpg
  • RK500-23主图5.jpg
  • RK500-23主图3.jpg
RK500-23 Soil EC Sensor & Soil Salinity Sensor
B站不支持收货地址
B站不支持库存规格
Model:
RK520-02
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

B站不支持产品保障
暂无分享
该产品后台详情无内容
这里可以自定义设置

PRODUCT DESCRIPTION

The probe of RK500-23 EC/Salinity sensor is made of titanium alloy inner electrode, using tetrafluoroethylene lining,outerelectrode is 316L stainless steel, it has the characteristics of stable performance, high sensitivity and wide application range.RK500-23 is simple in structure, stable in performance and easy to operate. It is used for on-site monitoring of soil water-saltdynamics. lt is an ideal observation instrument for studying the occurrence, evolution and improvement of saline-alkaline soil.

SPECIFICATIONS

Item

Technical Specification

EC

Salinity

Measuring medium

Soil or similar to soil

Principle

Frequency conversion method

Range

 0~1000us/cm, 0~2000us/cm,0~5000us/cm,0~10000us/cm,0~200ms/cm,(any range of 0-300ms/cm can be customized, 1ms/cm = 1000us/cm)

0~100000ppm(mg/L)
     1ppm(mg/L)=1000ppb(ug/L)=1000000ppt(ng/L)

Supply

7-30VDC(power consumption<0.2W)

Accuracy

±1%

Response time

1s

Output signal

4-20mA & RS485 at the same time

Electrode

Titanium alloy



Temperature compensation



Automatic compensation

Drift

≤0.3%FS/24h

Operating temperature

-20℃-+80℃

Probe material

316L

Probe dimension

Φ13*175mm

Ingress protection

IP68

Storage

10-60℃@20%-90%RH

Cable length

Default:5m
