 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika solar radiation shield solution provider for temperature measurement2 1
Rika solar radiation shield solution provider for temperature measurement2 1

Rika solar radiation shield solution provider for temperature measurement2

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RK95-02A
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry

PRODUCT DESCRIPTION

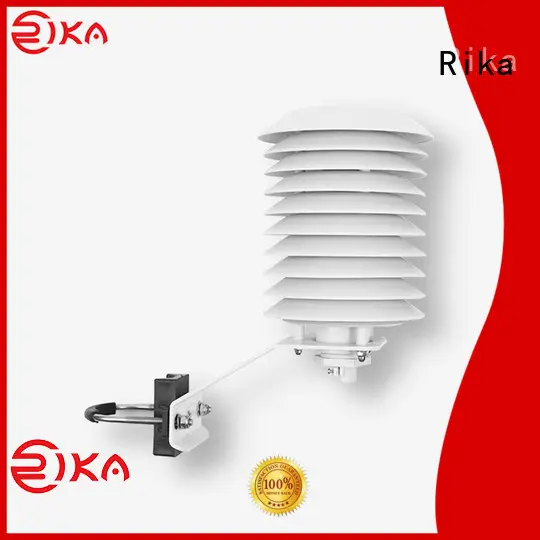

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather condition.

Rika solar radiation shield solution provider for temperature measurement2 2

SPECIFICATIONS

Item

Specifications

A

B

Number of plates

10

7

Color

Pure white

Dimensions( mm)

Inner diameter

30

22

Outer diameter

130

79

Internal height

135

80

Material

Special engineering plastics against radiation & Stainless steel screw

Install accessories(attached)

Stainless steel bracket

Operating temperature

-40℃-+75℃

DIMENSION & MOUNTING

Rika solar radiation shield solution provider for temperature measurement2 7
Rika solar radiation shield solution provider for temperature measurement2 8

PRODUCT DETAILS

Rika solar radiation shield solution provider for temperature measurement2 9

Rika solar radiation shield solution provider for temperature measurement2 10Installation Probes

Rika solar radiation shield solution provider for temperature measurement2 11

Rika solar radiation shield solution provider for temperature measurement2 12 Suitable For Outdoor Installation

Rika solar radiation shield solution provider for temperature measurement2 13

Rika solar radiation shield solution provider for temperature measurement2 14Rain-proof Design

PRODUCT APPLICATION



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
