Model:

RKL-01

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Enterprise Strength

Rika Sensors insists on combining standardized services with personalized services to meet customers' different needs. This contributes to the brand image building of our company's quality service.

Application Scope

With wide application, environmental monitoring is suitable for various industries. Here are a few application scenes for you.Rika Sensors always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.

PRODUCT DESCRIPTION

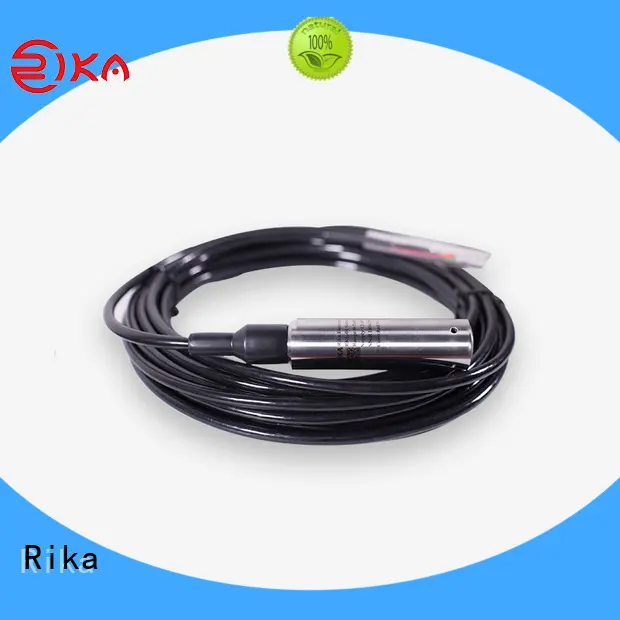

RKL-01 Submersible Liquid Level Transmitter is with stainless steel isolation diaphragm diffusion silicon pressure core body, the pressure core body adopts the process of laser trimming resistor for a wide temperature range of zero and sensitivity temperature compensation. Special cable for air-venting conduit and waterproof technology ensures water tightness, and ventilation between inside and outside, so as to acquire accurate and stable measuring data.

Rika top rated industrial level sensor factory for detecting liquid level 3

High accuracy

Fast response

Excellent stability

Anti-corrosion material optional

Strong resistance to interference

Wide temperature range compensation

SPECIFICATIONS

Item	Technical specifications
Range	0 ~ 0.5m…200mH2O or 0 ~ 5KPa…2MPa
Output	4-20mA,0-5V,0-10V,RS485
Supply Voltage	10-30VDC,24V typ.
Over Pressure	2×FS
Measuring Medium	The liquid(not sticky ) compatible with 316 stainless steel
Total Accuracy	0.1%FS,0.3%FS(0.25%FS),0.5%FS
Long-term Stability	0.1%FS/year typ.,0.2%FS/year max.
Ingress Protection	IP68
Operating Temperature	-40℃~ +80℃
Compensating Temperature	-10℃~ 70℃
Temperature Drifting	0.03%FS/℃ typ.,0.05%FS/℃
Cycle Life	1*10^8 @25℃
Main Material	Sensor:316L,housing:304SS(316L is optional)
Cable	Outer material：PUR,Atmospheric pressure compensation cable, Polymer waterproof plug at cable end
Power Consumption	Current output:(U0.02)W, Voltage output:(U0.008)W, Digital output:(U*0.015)W
Load Capacity	Current output:≤(U-7)/0.02Ω, Voltage output:≥100kΩ
Weight(probe unpacked)	Approx. 230g
Storage Condition	10℃-50℃@20%-90%RH

DIMENSION & FIXED BRACKET(OPTIONAL)

Unit:mm

The default diameter is 27 mm. 19 mm or 13 mm external diameter is customizable.

Fixed Bracket(Optional)

MOUNTING

As shown in picture 1,when the sensor is installed in static water such as in poos,water towers,probe is immersed into the bottom and should be as far as possible away from the pump or valves.The terminal box should keep above water surface and prevent water penetrating into cables.Please make sure the airway not be blocked.
As shown in picture 2,when the sensor is installed in dynamic water such as dams or rivers,probe should be inserted into a steel pipe(inner dia is around 45mm),burrowing several holes at different height on the pipe side wall which is opposite to the water flow direction.The terminal box should keep above water surface and prevent water penetrating into cables.Please make sure the airway not be blocked.

Rika top rated industrial level sensor factory for detecting liquid level 12

Rika top rated industrial level sensor factory for detecting liquid level 13

PRODUCT DETAILS

Rika top rated industrial level sensor factory for detecting liquid level 14

Rika top rated industrial level sensor factory for detecting liquid level 15 Product inner part

Rika top rated industrial level sensor factory for detecting liquid level 16

Rika top rated industrial level sensor factory for detecting liquid level 17 Product accuracy and material

Rika top rated industrial level sensor factory for detecting liquid level 18

Rika top rated industrial level sensor factory for detecting liquid level 19 PUR cable

Rika top rated industrial level sensor factory for detecting liquid level 20

Rika top rated industrial level sensor factory for detecting liquid level 21 IP68 waterproof design

PRODUCT APPLICATION

Agricultural Irrigation
