Product Details

With the pursuit of excellence, Rika Sensors is committed to showing you unique craftsmanship in details.Rika Sensors's environmental monitoring is commonly praised in the market due to good materials, fine workmanship, reliable quality, and favorable price.

Application Scope

environmental sensor developed and produced by Rika Sensors is widely used. The following are several application scenes presented for you.Rika Sensors has professional engineers and technicians, so we are able to provide one-stop and comprehensive solutions for customers.

PRODUCT DESCRIPTION

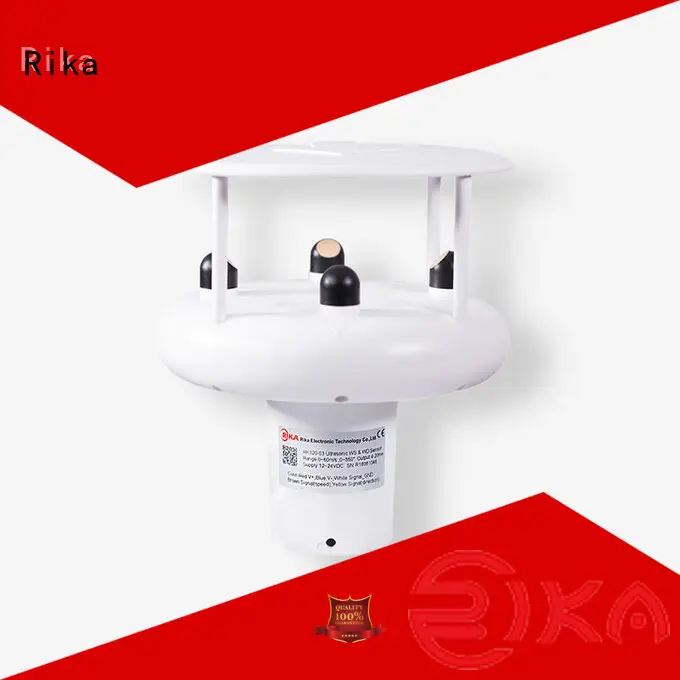

rk120-03 Economical Ultrasonic Wind Sensor is a fully digital detector, high-precision sensors, integrated by the ultrasonic wind speed and direction sensors. it can accurately and quickly detect the wind speed, wind direction; built-in signal processing unit can output a corresponding signal in response to user needs, with the structure lightweight and compact, no moving parts, high-strength structural design can be accurately detected in the harsh climatic conditions,made the accurate and stable elements, low maintenance, an open communications protocol and so on.It can be widely used in meteorology, oceanography, environment, airports, ports, laboratories, industry and agriculture, and transportation and other fields.

Rika ultrasonic wind solution provider for wind spped monitoring1 4

Low starting threshold.

Overall carbon fiber material.

Strong corrosion resistant ability.

Light structure.

Various output signals optional.

Easy Installation.

SPECIFICATIONS

Item	Technical Specification
Power Supply	12-24VDC
Power consumption	<1W(Heating not activated); <3W(Heating activated)
Output Signal	RS232/RS485(Modbus/NMEA-0183),4-20mA(only for wind speed & direction) optional
Operating Temperature	-30℃-+70℃
Ingress Protection	IP66
Heating power	3W max.
Electronic compass	optional
Atmospheric pressure	optional
Dimension	Ф145*138mm
Weight(unpacked)	0.8kg
Main material	Anti-radiation ABS Engineering plastic

Item	Technical Specification
Item	Wind speed	Wind direction	Atmospheric pressure
Range	0-45m/s,0-60m/s	0-360°	150-1100hPa
Resolution	0.01m/s	1°	0.1hPa
Accuracy	≤10m/s：±0.2m/s ＞10m/s：＜±2% the current value	±3°	±1 hPa
Starting Threshold	0.1m/s	0.1m/s
Extreme Wind Speed	60m/s

DIMENSION & MOUNTING

There is rotary adjustable mounting holes at the bottom of the senor, when mounting the sensor, to ensure the indicator on on the sensor comply with the geographic north.

Rika ultrasonic wind solution provider for wind spped monitoring1 11

Unit：mm

PRODUCT DETAILS

Rika ultrasonic wind solution provider for wind spped monitoring1 13

Rika ultrasonic wind solution provider for wind spped monitoring1 14 Ultrasonic Pavilion Reflection Principle

Rika ultrasonic wind solution provider for wind spped monitoring1 15

Rika ultrasonic wind solution provider for wind spped monitoring1 16 Suitable For Harsh Environment

Rika ultrasonic wind solution provider for wind spped monitoring1 17

Rika ultrasonic wind solution provider for wind spped monitoring1 18 Auto-Locate The Installation Position

Rika ultrasonic wind solution provider for wind spped monitoring1 19

Rika ultrasonic wind solution provider for wind spped monitoring1 20 Connectors and installation

PRODUCT APPLICATION

Automatic Weather Station
