Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika water quality monitoring sensors manufacturer for water level monitoring

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

2 PCS

Model:

RK500-13

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Product Comparison

Rika Sensors provides diversified choices for customers. weather sensors is available in a wide range of types and styles, in good quality and in reasonable price.Compared with other products in the same category, weather sensors produced by Rika Sensors has the following advantages.

Application Scope

The environmental sensor of Rika Sensors is applicable to the following areas.With a focus on customers, Rika Sensors analyzes problems from the perspective of customers and provides comprehensive, professional and excellent solutions.

PRODUCT DESCRIPTION

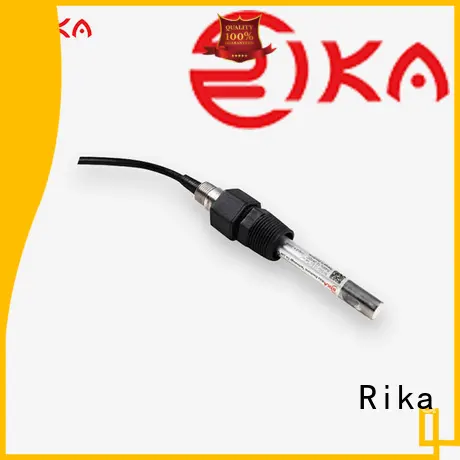

RK500-13 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.

Rika water quality monitoring sensors manufacturer for water level monitoring 5

SPECIFICATIONS

Item	Technical Specification
	EC	Salinity
Measuring medium	Liquid
Principle	Frequency conversion method
Range	0～500us/cm, 0～5000us/cm, 0～10000us/cm, 0～200000us/cm(any range of 0-300ms/cm can be customized, 1ms/cm = 1000us/cm)	0～100000ppm(mg/L) 1ppm(mg/L)=1000ppb(ug/L)=1000000ppt(ng/L)
Supply	7-30VDC(power consumption<0.2W)
Accuracy	±1%
Response time	1s
Output Signal	4-20mA & RS485 at the same time
Electrode	Titanium alloy
Temperature compensation		Automatic compensation
Drift	≤0.3%FS/24h
Operating Temperature	-20℃-+80℃
Probe material	316L or ABS(Strongly corrosive liquids)
Ingress Protection	IP68
Storage	10-60℃@20%-90%RH
Cable length	Default:5m

DIMENSION

Dimension （Unit：mm）

Installation & Usage

Directly into the liquid
Adopt submersible mounting bracket(show in the below figure)

PRODUCT DETAILS

Rika water quality monitoring sensors manufacturer for water level monitoring 14

Rika water quality monitoring sensors manufacturer for water level monitoring 15 Product Principle & Material

Rika water quality monitoring sensors manufacturer for water level monitoring 16

Rika water quality monitoring sensors manufacturer for water level monitoring 17 Temperature Compensated

Rika water quality monitoring sensors manufacturer for water level monitoring 18

Rika water quality monitoring sensors manufacturer for water level monitoring 19 Installation

PRODUCT APPLICATION

Agricultural Irrigation

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
