Rika weather station radiation shield factory

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

2 PCS

Model:

RK95-08

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Application Scope

environmental sensor has a wide range of applications.While providing quality products, Rika Sensors is dedicated to providing personalized solutions for customers according to their needs and actual situations.

PRODUCT DESCRIPTION

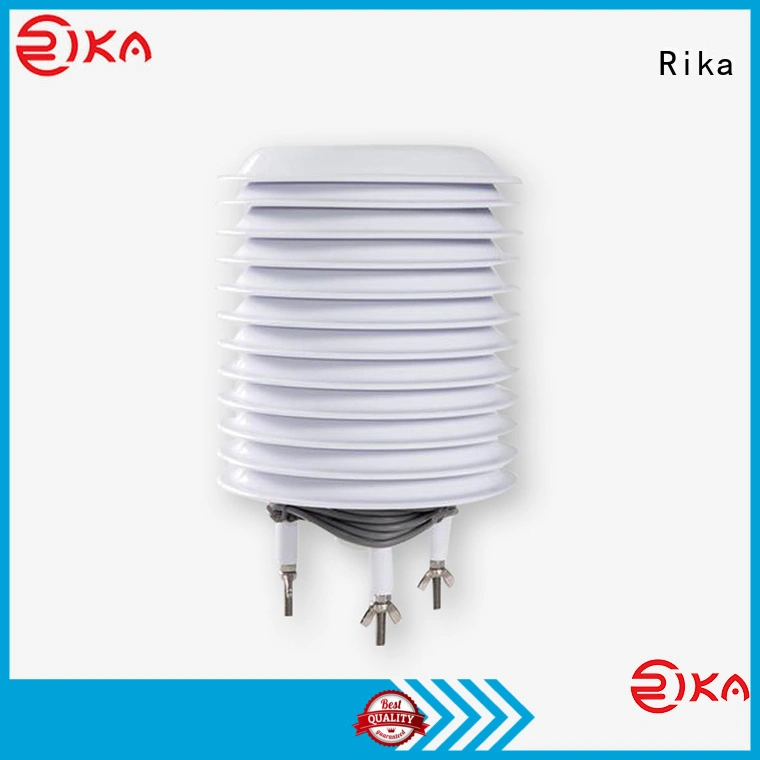

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.The product with breathing fan, make sure the screen inside and outside environment difference is minimal.

Rika weather station radiation shield factory 3

Compact size for easy use

Good air circulation around shield

Excellent stability

Simple operation screen

SPECIFICATIONS

Item	Specifications
Number of plates	7-20 plates optional,typ.:11,14,19
Color	White
Material	Anti-radiation engineering plastics & Stainless steel screw
Supply of fan	7-13.8VDC(typ.12VDC)
Rated power	1W
Operating temperature	-40℃-+75℃
Dimension	Inner diameter:62mm,Outer diameter:140mm/180mm Height:180mm(11 plates),220mm(14 plates),280mm(19 plates)
Optional accessories	Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS)

BRACKET DIMENSION & WATERPROOF GLANDS SPECIFICATIONS

All 304 stainless steel material （Unit:mm）

Waterproof Glands Specifications

DIMENSION

Rika weather station radiation shield factory 10

Plates	Inner space(mm)	D1(mm)	H1(mm)	H2(mm)
7	ø62*50	140	89	approx.63
8	ø62*63	140	101	approx.63
9	ø62*75	140	114	approx.63
10	ø62*88	140	126	approx.63
11	ø62*100	140	139	approx.63
12	ø62*113	140	151	approx.63
13	ø62*125	140	164	approx.63
14	ø62*138	140	176	approx.63
15	ø62*150	140	189	approx.63
16	ø62*163	140	201	approx.63
17	ø62*175	140	214	approx.63
18	ø62*198	140	226	approx.63
19	ø62*200	140	239	approx.63
20	ø62*213	140	251	approx.63

ADAPTER WATERPROOF GLANDS

PG Glands
Model	Cable/Sensor Diameter(mm)
PG7	3-6.5
PG9	4-8
PG11	5-10
PG13.5	6-12
PG16	10-13
PG19	12-15
PG21	13-18
PG25	16-21
PG29	18-25
PG36	22-32

Rika weather station radiation shield factory 11

PRODUCT DETAILS

Rika weather station radiation shield factory 12

Rika weather station radiation shield factory 13 Material

Rika weather station radiation shield factory 14

Rika weather station radiation shield factory 15 Multiple output optional

Rika weather station radiation shield factory 16

Rika weather station radiation shield factory 17 Product features

PRODUCT APPLICATION

Agriculture Weather Station

Automatic weather station

PV Station

Scenic Spot

Schoolyard Weather Station

Weather Station

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
