 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

RK100-02 Customized Wind Speed Sensor 1
RK100-02 Customized Wind Speed Sensor 2
RK100-02 Customized Wind Speed Sensor 3
RK100-02 Customized Wind Speed Sensor 4
RK100-02 Customized Wind Speed Sensor 1
RK100-02 Customized Wind Speed Sensor 2
RK100-02 Customized Wind Speed Sensor 3
RK100-02 Customized Wind Speed Sensor 4

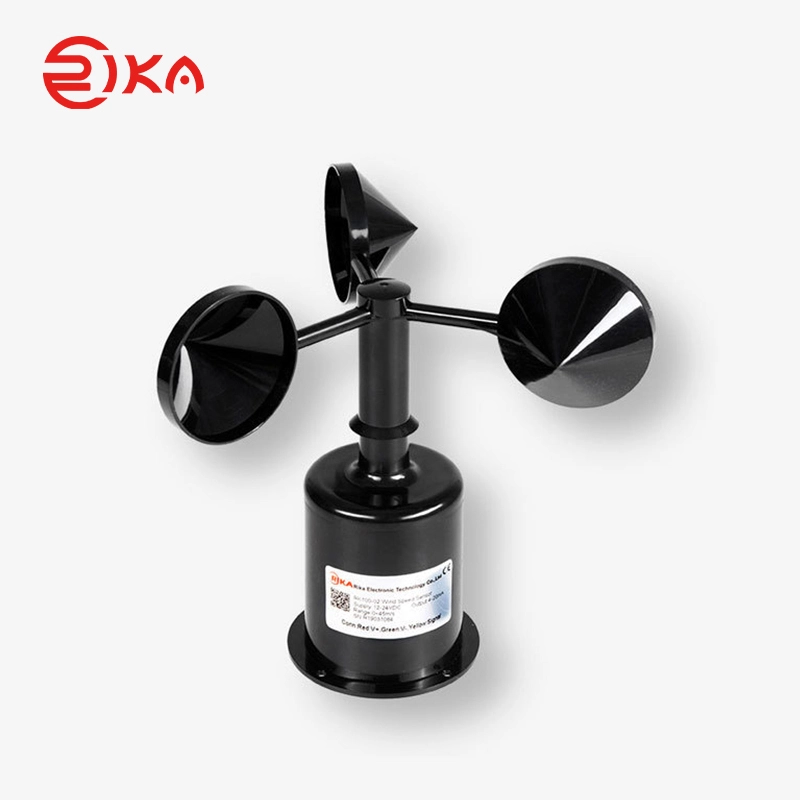

RK100-02 Customized Wind Speed Sensor

    oops...!

    no product data.

    Go to homepage
    PDF Download

    PRODUCT DESCRIPTION

    The RK100-02 Customized Wind Speed Sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built in the housing shell. It can be widely used in meteorology, marine, environmental

    monitoring, airport, harbor,  laboratory,  industrial and agricultural  areas.

    RK100-02 Customized Wind Speed Sensor 5
    RK100-02 Customized Wind Speed Sensor 6
    Low starting threshold.
    RK100-02 Customized Wind Speed Sensor 7
    Overall carbon fiber material.
    RK100-02 Customized Wind Speed Sensor 8
    Strong corrosion resistant ability.
    RK100-02 Customized Wind Speed Sensor 9
    Light structure.
    RK100-02 Customized Wind Speed Sensor 10
    Various output signals optional.
    RK100-02 Customized Wind Speed Sensor 11
    Easy Installation.

    SPECIFICATIONS

    Output

    Pulses(NPN)

    4-20mA

    0-5V

    RS485

    Supply Voltage

    5V,12V-24V

    5V,12V-24V

    5V,12V-24V

    5V,12V-24V

    Load Capacity

    >1kΩ,default:hi gh level:5V

    <500Ω(typ 250Ω)

    >1kΩ


    Range

    0-45m/s

    0-45m/s

    0-45m/s

    0-45m/s

    Accuracy

    ±3%

    Resolution

    0.1m/s

    Starting Threshold

    <0.5m/s

    Limit w ind speed

    50m/s

    Ingress Protection

    IP65

    Operating Temperature

    -40℃~ +50℃

    Cable Grade

    Nominal voltage:300V ,Temperature grade:80℃

    Weight(unpacked)

    170g

    Dimension

    Cup rotor:ø179mm,Height:160mm

    Main material

    Carbon fiber

    Storage Condition

    10℃-50℃@20%-90%RH


    DIMENSION & MOUNTING

    Rika RK100-02 3-cup anemometer size

    RK100-02 Customized Wind Speed Sensor 12
    Flange mounted:
    fix four screws on the bracket and keep the product horizontal.
    RK100-02 Customized Wind Speed Sensor 13
    Connector dimension:
    ø15mm (recommended reserving ø 25mm for wiring).

    PRODUCT APPLICATION

    RK100-02 Customized Wind Speed Sensor 14
    Agricultural Meteoroiogical Station
    RK100-02 Customized Wind Speed Sensor 16
    Greenhouse Weather Station
    RK100-02 Customized Wind Speed Sensor 17
    Metereological Monitoring For Expressway
    RK100-02 Customized Wind Speed Sensor 18
    Metereological Monitoring For High-altitude Facility
    RK100-02 Customized Wind Speed Sensor 19
    Metereological Monitoring For Seaport
    RK100-02 Customized Wind Speed Sensor 20
    Weather Monitoring For Power Generating
    RK100-02 Customized Wind Speed Sensor 21
    Wind Speed Sensor & Wind Direction Sensor

    CUSTOMER TESTIMONIALS

    RK100-02 Customized Wind Speed Sensor 22
    RK100-02 Customized Wind Speed Sensor 23

    CERTIFICATE

    RK100-02 Customized Wind Speed Sensor 24
    CE-Wind Speed Sensor
    RK100-02 Customized Wind Speed Sensor 25
    EMC-Wind Speed Sensor
    RK100-02 Customized Wind Speed Sensor 26
    ISO9001
    RK100-02 Customized Wind Speed Sensor 27
    TUV Certificate
