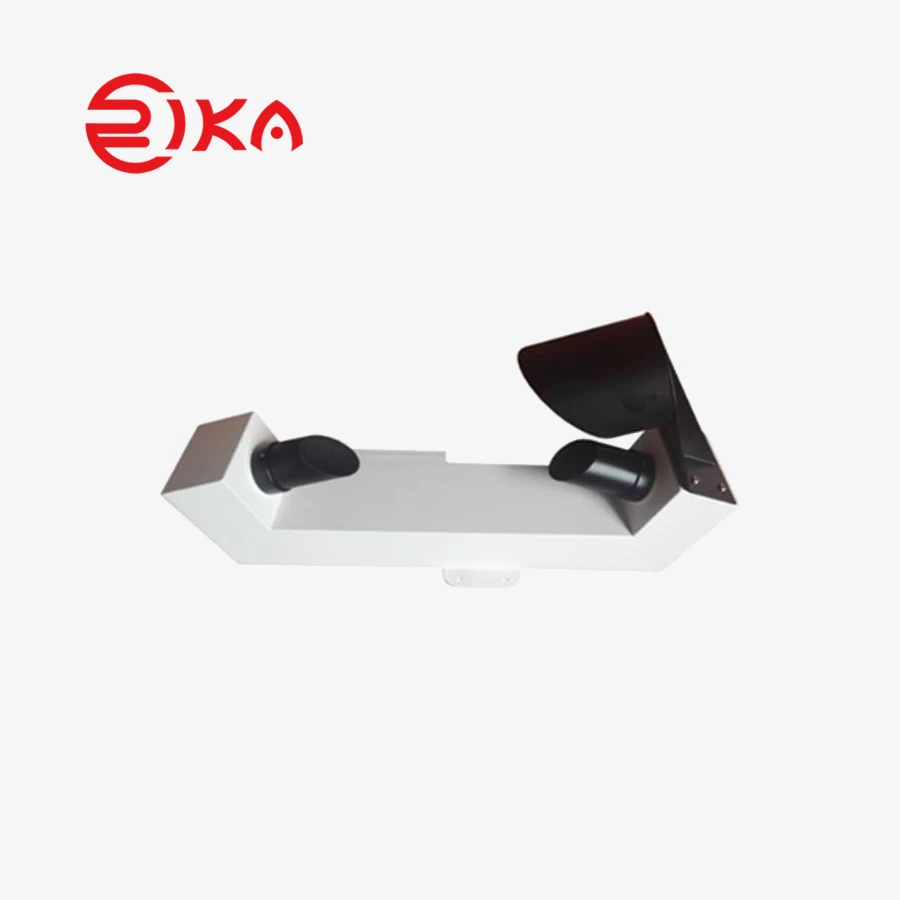

RK300-10S Visibility sensor 1
RK300-10S Visibility sensor 1

RK300-10S Visibility sensor

    oops...!

    no product data.

    Go to homepage
    PDF Download

    PRODUCT DESCRIPTION

    The forward scatter measurement principle and unique design ensure the output accurate and reliable in all weather conditions and will not be influenced by local lights sources, even the flash. With a measurement range of 10m to 10km (Can be extended to 75km), the sensor is constructed from robust aluminum,suitable for use in road and aviation constructed from robust aluminum. Finished with a high quality powder coat, the sensor will provide years of reliable service. Heating of the optical windows and sensor hoods is provided as standard allowing use in the harshest of conditions. Both optical windows are monitored for contamination and the visibility output is automatically compensated to reduce maintenance requirement.

    RK300-10S Visibility sensor 2
    RK300-10S Visibility sensor 3
    LCD display Optional.
    RK300-10S Visibility sensor 4
    Temperature Compensation.
    RK300-10S Visibility sensor 5
    Fast response.
    RK300-10S Visibility sensor 6
    Multiple signal output options.
    RK300-10S Visibility sensor 7
    Excellent stability.
    RK300-10S Visibility sensor 8
    High sensitivity.

    SPECIFICATIONS


    Item

    Technical Specification

    Measurement Range

    5m-10km (Typ.), 5m-30km, 5m-50km (Opt.)

    Measurement Principle

    Forward scatter

    Resolution

    1m

    Accuracy

    ±50m when visibility ≤ 600m, ±10% when visibility > 600m

    Data update rate

    1s (default)

    Supply

    12-24VDC

    Output

    RS485, RS232

    Power Consumption

    Approx.1W, (heating: 6W MAX.)

    Dimension

    646*328*176mm

    Installation

    Hoop installation

    Lifetime

    >10 Years

    Operating Temperature

    -40-+50@0-100%RH (no condensation)

    Weight

    20kg

    Shell Material

    Stainless steel
