RK320-01 Laser Ceilometer

这里可以自定义设置

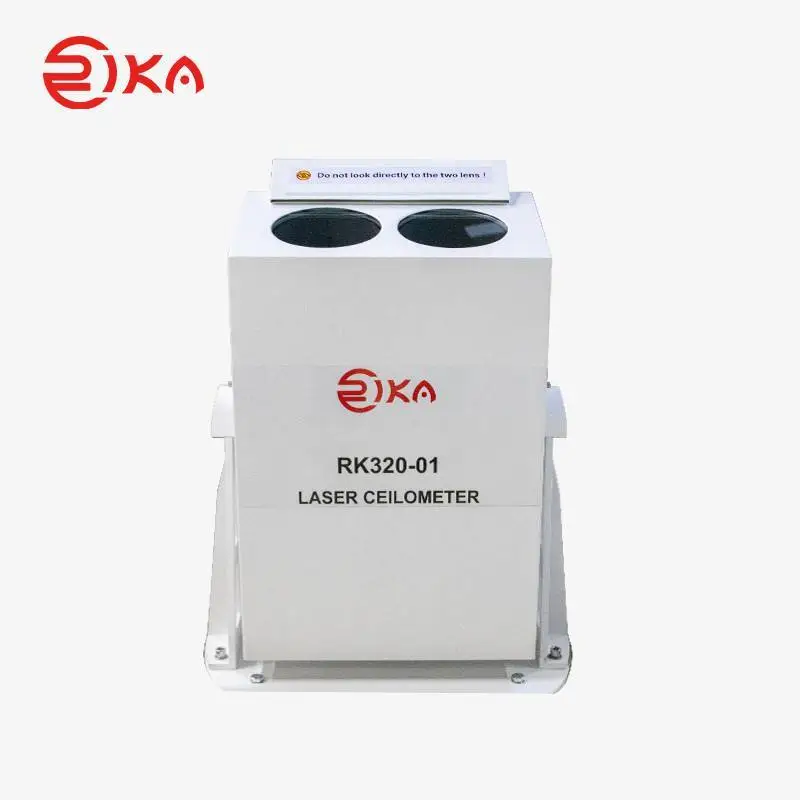

RK320-01 Laser Ceilometer
RK320-01
RK320-01-2
RK320-01-5
RK320-01-3
  • RK320-01 Laser Ceilometer
  • RK320-01
  • RK320-01-2
  • RK320-01-5
  • RK320-01-3
RK320-01 Laser Ceilometer
B站不支持收货地址
B站不支持库存规格
Model:
RK320-01
MOQ:
1PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

B站不支持产品保障
暂无分享
这里可以自定义设置
PRODUCT DESCRIPTION
The RK320-01 laser ceilometer is mainly used to measure the height of the cloud base, the penetration
thickness of the cloud layer, and count the cloud amount, and output the vertical visibility when the sky is
blurred. It is mainly used in airports, ships, and other transportation departments and weather stations. The
laser ceilometer has the advantages of simple structure, good working stability, high reliability, low energy
consumption, and convenient use and maintenance.
  1.     - Laser Technology: The laser ceilometer employs advanced laser technology to emit pulses of light towards the sky and measure the time it takes for the light to be reflected back from cloud layers, enabling accurate determination of cloud height and vertical visibility.
  2.     - High Measurement Accuracy: With high-resolution data collection capabilities, this cloud ceilometer delivers precise measurements of cloud base height, cloud cover, and atmospheric visibility, allowing users to monitor weather conditions and atmospheric phenomena with confidence.
  3.     - Wide Measurement Range: The ceilometer offers a wide measurement range that enables detection of clouds at varying altitudes, from low-level fog and stratus clouds to high-altitude cirrus clouds, providing comprehensive insights into vertical atmospheric structure.
  4.     - Real-Time Data Collection: Real-time data acquisition and processing capabilities allow users to monitor changes in cloud height and visibility continuously, facilitating timely decision-making in weather forecasting, aviation operations, and environmental monitoring.

SPECIFICATIONS


Item

Technical Specification

Range

30-10000m

Measurable cloud

number

Up to 3 layers of clouds

Measurement error of hard objects

±15m

Accuracy(horizontal visibility>2km)

5VDC, 12-24VDC

Resolution

4-20mA,0-5V,0-10V,RS485(MODBUS),IIC,SDI-12

The sampling period

30 seconds to 300 seconds can be set continuously

Supply

198VAC~242VAC

 Power

When not heating ≤100W; When heating ≤700W

Communication

Interface Type:RS232/RS485

Maximum wired transmission distance: not less than 300m

Storage environment

Ambient temperature: -55℃~60℃;

Relative humidity: 95%RH (35℃)

Reliability and maintainability

Mean time between failures: MTBF≥500h

Average repair time: MTTR≤0.5h

Install

FEATURES

An installation plan should be made before starting the installation of the ceilometer so that the installation can go smoothly.

1) Wiring planning: Determine the wiring planning and cable type of power lines, grounding lines and communication lines;

2) Foundation: prepare the foundation for installation;

3) Connecting cables: Connect the power line, communication line and grounding line of the site to the power port, communication port and grounding port of the equipment respectively, and connect the communication line to the serial port of the background computer.



Positioning and Orientation

Install the ceilometer on the working foundation, place it horizontally when measuring hard objects, and place it vertically when measuring cloud layers. When fixing the foundation, make sure that the sun cannot directly shine on the lens of the ceilometer, so as not to burn the equipment parts. For this reason, the placement position of the ceilometer should be consistent with: the northern hemisphere window is placed north, and the southern hemisphere window is placed south (this placement is only valid for north or south latitudes above 30°). Figure 3 shows the orientation of the ceilometer in the northern hemisphere. Adjust the placement direction in time with seasonal changes to avoid direct sunlight.

product-Rika Sensors-img-4

PRODUCT APPLICATION

CUSTOMER TESTIMONIALS

If you are looking for high quality cloud ceilometer, such as cloud cover sensor, cloud height sensor, etc, welcome to contact Rika Sensors.
