RK330-01 Customized Atmospheric Temperature & Humidity Sensor
PRODUCT DESCRIPTION

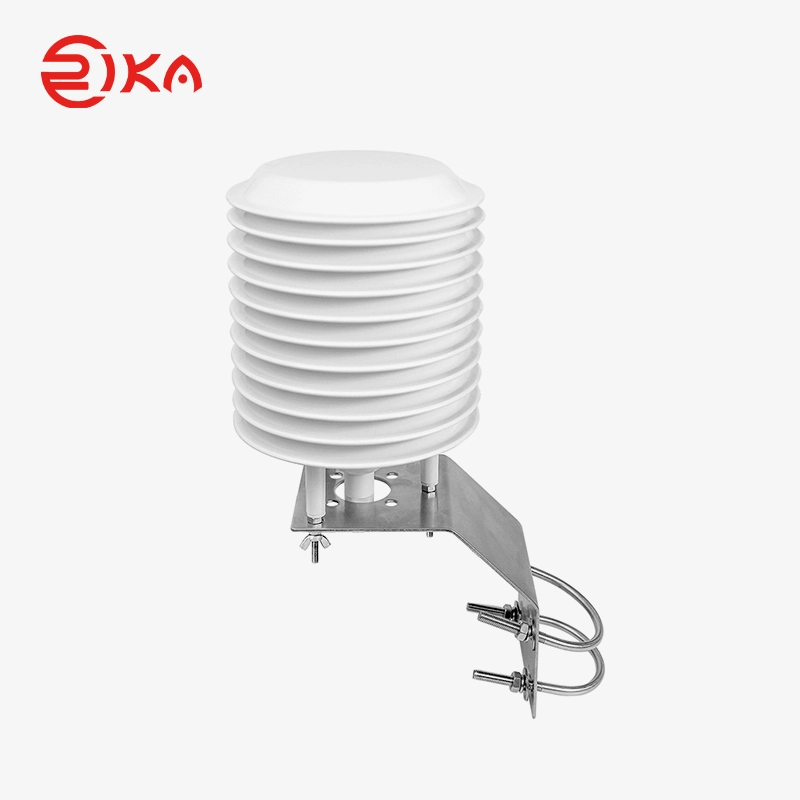

RK330-01 Customized Atmospheric Temperature, Humidity & Pressure Sensor is a professional measurement of air temperature, relative humidity & barometric pressure. Sensors are built-in the water-proof and anti-UV shelter. It is widely used in agriculture, forestry, meteorology as well as a climate chamber, warehousing and other places.This model also can be equipped with 11 plates radiation shield(RK95-01) to protect the sensors from solar radiation and rain.
SPECIFICATIONS
Item | Technical Specification | ||
Temperature | Humidity | / | |
Range | -40~+80℃ | 0-100%RH | / |
Resolution | 0.1 ℃ | 0.5%RH | / |
Accuracy | ±0.5℃ | ±3%RH | / |
Supply | 12VDC | ||
Output Signal | SDI-12 | ||
Current Consumption | ≤5mA | ||
Operating Temperature | -40℃-+80℃ | ||
Ingress Protection | IP65 | ||
Storage | 10-60℃@20%-90%RH | ||
Response time | ≤20 | ||
Probe material | ABS | ||
Radiation Shield(optional) | RK95-01,11 plates, U-bolt for dia 25.4mm tube. | ||
①Analog output only is proper for one or two measurement parameters.
DIMENSION & MOUNTING
1. Install the product in stable environment area, avoid direct sunlight, away from windows air-conditioning, heating and other equipment. Otherwise it will cause measurement inaccuracies.
2. Fixing rail is optional.
3. If you use indoor, recommends clamp to install, as shown on the right picture.
