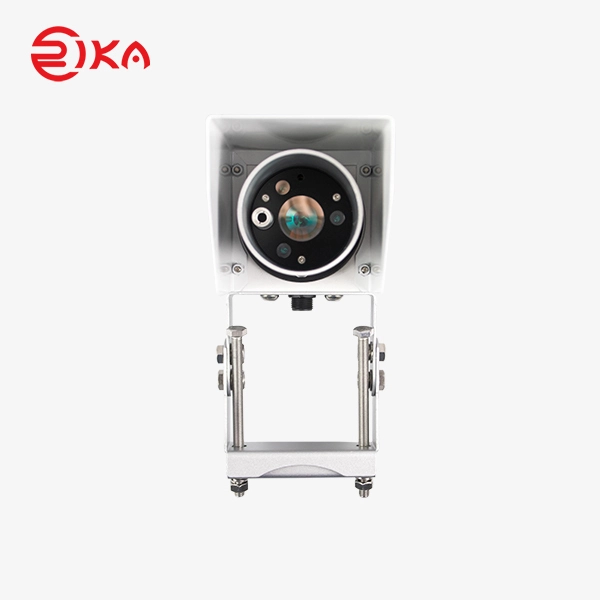

RK500-55 Non contact road condition sensor 1
RK500-55 Non contact road condition sensor 2
RK500-55 Non contact road condition sensor 3
RK500-55 Non contact road condition sensor 4
RK500-55 Non contact road condition sensor 5
RK500-55 Non contact road condition sensor 6
RK500-55 Non contact road condition sensor 1
RK500-55 Non contact road condition sensor 2
RK500-55 Non contact road condition sensor 3
RK500-55 Non contact road condition sensor 4
RK500-55 Non contact road condition sensor 5
RK500-55 Non contact road condition sensor 6

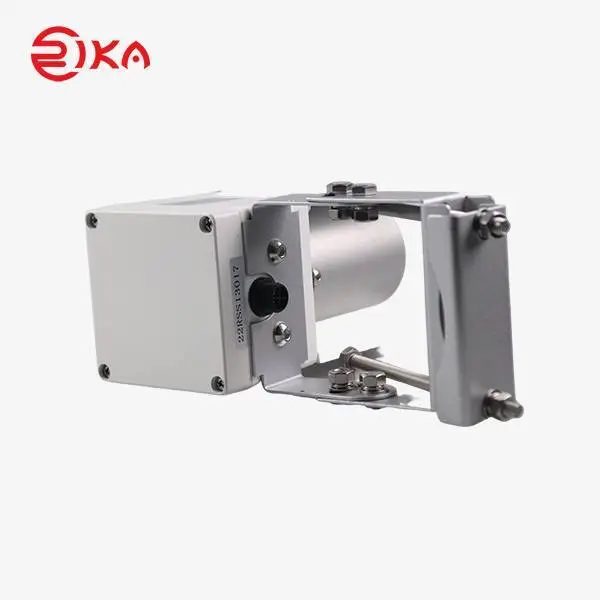

RK500-55 Non contact road condition sensor

    oops...!

    no product data.

    Go to homepage
    PDF Download

    PRODUCT DESCRIPTION

    Road surface sensors or road sensors, are designed to monitor and assess crucial factors impacting driving conditions. With their advanced technology and sophisticated algorithms, road condition sensors can accurately detect a wide range of parameters such as temperature, moisture levels, precipitation intensity, and even tire grip on the pavement. RK500-55 is a non-contact road surface state detector, thanks to remote sensing technology it’s taken, it can not only avoid damage to the road, but also traffic interference during its installation. Multispectral measurement technology enables accurate detection of thickness of ice,snow,water on surface of the road.

    RK500-55 detector is ideal choice for road conditions where installation of embedded pavement sensor is inconvenient or inapplicable. Remote installation, means that there is no need to slot-cut surface or shut down the road, its installation is safe and convenient. It’s almost free of maintenance and ideal choice for road meteorological systems. This road sensor can be installed on existing weather stations or on other buildings which has unobstructed view to pavement.

    The RK500-55 detector is installed in a robust durable housing to ensure its stable working and providing accurate data during bad weather. By continuously collecting data from various points along the roadway network, this intelligent road condition sensor provide real-time information about potentially hazardous situations like black ice patches or hydroplaning risks. By providing accurate road state information, RK500-55 can alarm road management department to take appropriate remedial action. before weather elements has created a hazardous driving surface.

    RK500-55 Non contact road condition sensor 7

    SPECIFICATIONS

    Parameters of the Road Condition Sensor


    Item

    Technical Specification

    Measuring distance

    2-15m

    Measuring radius

    25.4 cm

    Angle

     30-90°

    Power Supply

    220VAC,24VDC

    Power Consumption

    4W

    Operating Temperature

    -40 ºC to +70 ºC

    Operating Humidity

    0 to 100%

    Measuring Range

    Water:0.00—10mm


    Ice:0.00—10mm


    Snow:0.00—10mm


    Level of Grip:0.00—1


    Road surface temperature:-40ºC to +60ºC (optional)

    Accuracy

    0.01mm

    Lens Contamination Detection

    Automatic lens contamination level detection and compensation

    Road Surface

    Concrete,asphalt pavement

    Communication Interface

    RS485,RS232

    MTTF

    1.5 x 1000000 hours

    Safety

    Infrared measuring technology, no radiation
