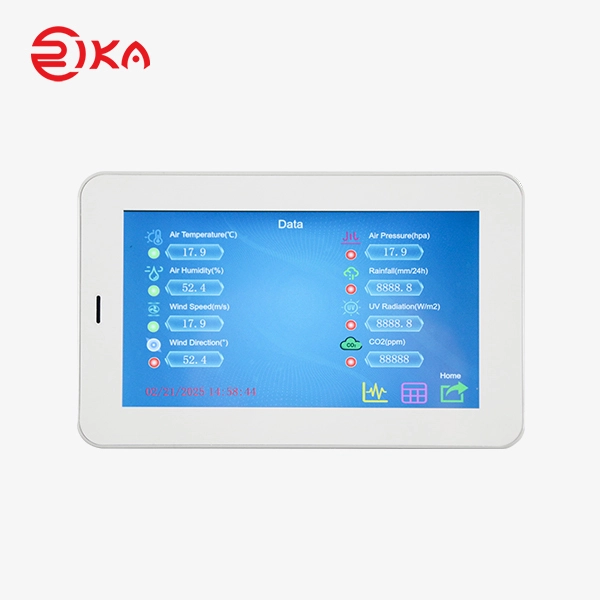

RK600-07C Data Logger of Automatic Weather Station

Payment:

T/T, L/C or Paypal

MOQ:

1PCS

Model:

RK600-07C

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Write a Review

PDF Download

PRODUCT DESCRIPTION

RK600-07 Data Logger with data acquisition, storage, transmission and management, and other functions, is the core component of automatic weather station, which can connect 32 parameters at the same time, has the settings and color LCD display, can communication with sever or cloud via cable or wireless connection, provide communication protocol, convenient for secondary development.

RK600-07C Data Logger of Automatic Weather Station 6

RK600-07C Data Logger of Automatic Weather Station 7

Real-time display

RK600-07C Data Logger of Automatic Weather Station 8

Solar power supply optional

RK600-07C Data Logger of Automatic Weather Station 9

Large storage

RK600-07C Data Logger of Automatic Weather Station 10

Wireless optional

RK600-07C Data Logger of Automatic Weather Station 11

Multiple sensor Interface

RK600-07C Data Logger of Automatic Weather Station 12

Self-contained clock chip

SPECIFICATIONS

Parameter of the weather data logger

Item	Details
Display	7” color touch screen with backlight
resolving power	1024*600
Touch type	Resistive type
Screen sleep	Support
Backlight adjustable	Support
Communication status indication	Support
Internal storage	4GB+512M
Communication interface	COM1:RS232/COM2:RS485/COM3:RS485
network	Ethernet (standard), 4G, WIFI ,,LoRaWan(optional)
Communication protocol	Modbus-Rtu、Modbus-TCP、HTTP、MQTT
Supply	DC12-24V, AC100-240V（adapter）
Measurement parameters	32 max
Recording interval	1-240min settable
U_disk download	Support
Relay output	customized
Average consumption	<7W
CPU	Quad core A7 processor
Power protection	Equipped with surge protection and anti reverse protection
Withstanding voltage	500VAC
Insulation impedance	Exceeding 50M Ω @ 500VDC
working temperature	-10-+60℃
Storage environment	-20 ~70℃
CE	EN55022 & EN55024
Shell	400500200mm, Support solar power supply

SYSTEM DIAGRAM

RK600-07C Data Logger of Automatic Weather Station 13

PART LIST

Item	RK600-07C
Data logger	√
Protection box	√
Waterproof connector(to sensors)	√
Power connection terminal	√
USB-RS485 converter	√
Power adapter(AC100-240V@12VDC)	√
Solar charging controller	Optional
Solar panel	Optional
Lead acid battery①	Optional
Ethernet module	√
GPRS/2G/3G/4G	Optional
Lora module	Optional
Relay module	Optional
Other parts	Customizable
①Since air transportation is not available, it is recommended that users purchase locally.
