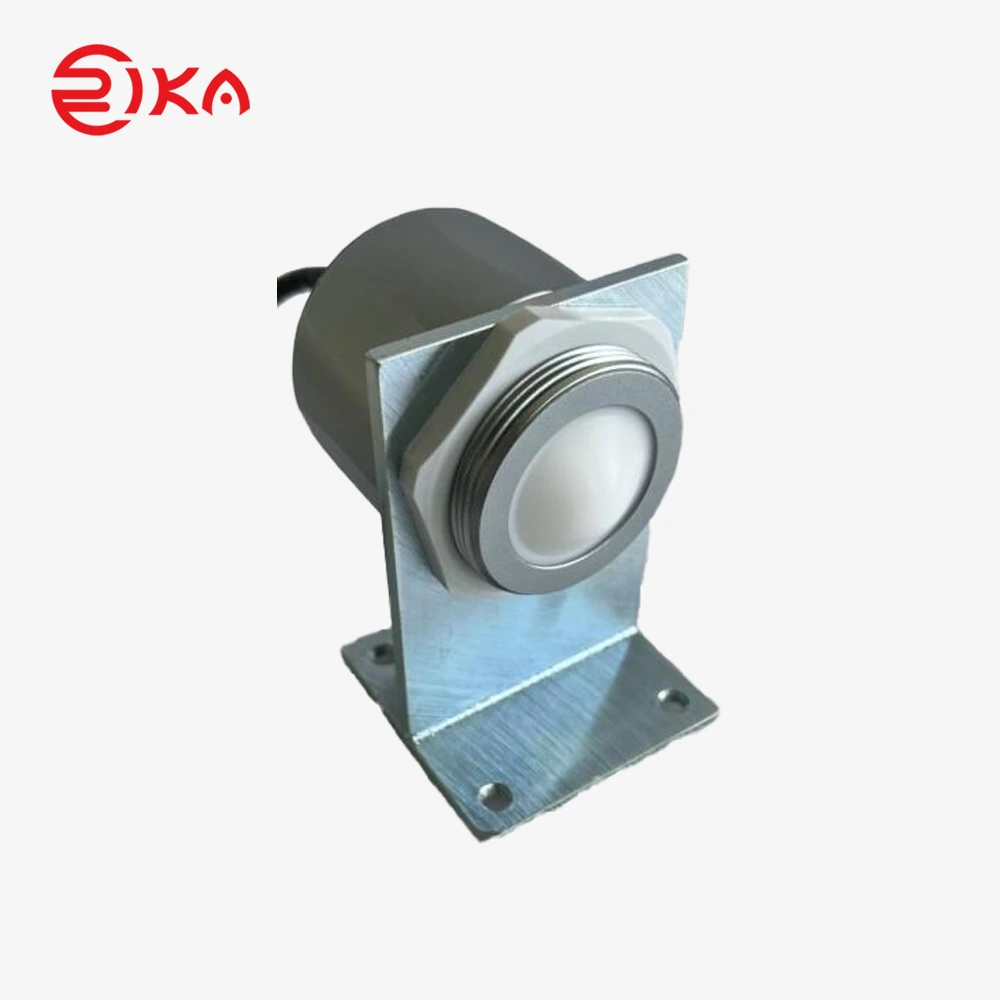

RKL-02 Customized 80G Radar Liquid Level Transmitter
PRODUCT DESCRIPTION
The radar water level gauge series products refer to frequency modulated continuous wave (FMCW) radar products that operate at 76-81GHz. The maximum quantity of the product can reach 65m, with a blind spot of 10cm. The radar water level gauge series products have higher working frequency, wider bandwidth, and higher measurement accuracy.The product provides the fixing method of the bracket, without the need for field wiring, making the installation convenient and simple. durability.
SPECIFICATIONS
|
Item |
Technical specifications |
|
Range |
0.1-65m |
|
Output |
SDI-12 |
|
Supply Voltage |
12-24VDC |
|
Working frequency |
76-81GHz |
|
Accuracy |
±1mm |
|
Ingress Protection |
IP68 |
|
Antenna Type |
Lens Antenna |
|
Operating Temperature |
-30°C~+75°℃ |
|
Housing material |
Stainless Steel |
|
Recommended Cable |
0.5mm² |
|
Installation Method |
Bracket/Thread |
|
Cable Entry |
PG9 |
MOUNTING
Two points to pay attention to during installation: (1) Ensure that the instrument is perpendicular to the water surface; (2) Prevent the transmitting beam from illuminating interfering objects and generating false echoes.See the following points for typical working conditions:
Ensure that the water level gauge is installed perpendicular to the water surface. Inclination will
weaken the amplitude of the received signal and affect the normal ranging.
Ensure that there are no interfering objects within the beam range, such as the riverbank.
The instrument shall be installed at least 2ocm away from the side wall, and the underground pipe network shall be installed as close to the center of the well as possible, otherwise the well wall is prone to generate interference signals, affecting the measurement and judgment.
