top rated level transmitter factory for detecting liquid level

top rated level transmitter factory for detecting liquid level
  • top rated level transmitter factory for detecting liquid level

top rated level transmitter factory for detecting liquid level

The demands for this product have been increasing amongst the customers.
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Comparison
environmental monitoring is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable.Compared with other products in the industry, environmental monitoring has more obvious advantages which are reflected in the following aspects.

PRODUCT DESCRIPTION

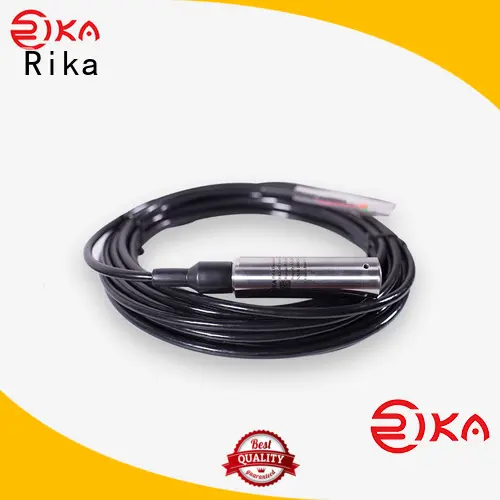

RKL-01 Submersible Liquid Level Transmitter  is with stainless steel isolation diaphragm diffusion silicon pressure core body, the pressure core body adopts the process of laser trimming resistor for a wide temperature range of zero and sensitivity temperature compensation. Special cable for air-venting conduit and waterproof technology ensures water tightness, and ventilation between inside and outside, so as to acquire accurate and stable measuring data.

top rated level transmitter factory for detecting liquid level-1

SPECIFICATIONS

Item

Technical specifications

Range

0 ~ 0.5m…200mH2O or 0 ~ 5KPa…2MPa

Output

4-20mA,0-5V,0-10V,RS485

Supply Voltage

10-30VDC,24V typ.

Over Pressure

2×FS

Measuring Medium

The liquid(not sticky ) compatible with 316 stainless steel

Total Accuracy

0.1%FS,0.3%FS(0.25%FS),0.5%FS

Long-term Stability

0.1%FS/year typ.,0.2%FS/year max.

Ingress Protection

IP68

Operating Temperature

-40℃~ +80℃

Compensating Temperature

-10℃~ 70℃

Temperature Drifting

0.03%FS/℃ typ.,0.05%FS/℃

Cycle Life

1*10^8 @25℃

Main Material

Sensor:316L,housing:304SS(316L is optional)

Cable

Outer material:PUR,Atmospheric pressure compensation cable,
     Polymer waterproof plug at cable end

Power Consumption

Current output:(U*0.02)W, Voltage output:(U*0.008)W, Digital output:(U*0.015)W

Load Capacity

Current output:≤(U-7)/0.02Ω, Voltage output:≥100kΩ

Weight(probe unpacked)

Approx. 230g

Storage Condition

10℃-50℃@20%-90%RH

DIMENSION & FIXED BRACKET(OPTIONAL)

MOUNTING

As shown in picture 1,when the sensor is installed in static water such as in poos,water towers,probe is immersed into the bottom and should be as far as possible away from the pump or valves.The terminal box should keep above water surface and prevent water penetrating into cables.Please make sure the airway not be blocked.
As shown in picture 2,when the sensor is installed in dynamic water such as dams or rivers,probe should be inserted into a steel pipe(inner dia is around 45mm),burrowing several holes at different height on the pipe side wall which is opposite to the water flow direction.The terminal box should keep above water surface and prevent water penetrating into cables.Please make sure the airway not be blocked.

top rated level transmitter factory for detecting liquid level-10
top rated level transmitter factory for detecting liquid level-11

PRODUCT DETAILS

top rated level transmitter factory for detecting liquid level-12

top rated level transmitter factory for detecting liquid level-13Product inner part

top rated level transmitter factory for detecting liquid level-14

top rated level transmitter factory for detecting liquid level-15 Product accuracy and material

top rated level transmitter factory for detecting liquid level-16

top rated level transmitter factory for detecting liquid level-17PUR cable

top rated level transmitter factory for detecting liquid level-18

top rated level transmitter factory for detecting liquid level-19IP68 waterproof design

PRODUCT APPLICATION



The radar level sensor manufactured by us with advanced design concepts not only strives for excellence in workmanship, scientific and reasonable design, but also has stable performance and durability, which can meet customers' needs for high-quality products.
level transmitter In the whole production process, there are personnel to inspect, not only that, Hunan Rika Electronic Tech Co.,Ltd also has a testing department, which conducts re-inspection of various performance indicators before level transmitter leaves the factory to ensure that level transmitter meets the needs and expectations of customers.
We have a complete procurement chain and quality control system, insist on selecting high-quality raw materials to produce level transmitter, and strictly control every link of level transmitter production, and comprehensively control product quality, so that all level transmitter have superior quality quality.
Hunan Rika Electronic Tech Co.,Ltd Not only selected high-quality raw materials, but also adhered to the introduction of advanced production technology to produce liquid level sensor, and carried out layer-by-layer checks and monitoring on each production link to ensure that all liquid level sensor that leave the factory are qualified products, for customers Provide reliable quality assurance.
Hunan Rika Electronic Tech Co.,Ltd Actively study and introduce world-class management theories, establish a comprehensive quality management system, and implement the concept of product quality control throughout the entire process of product design, production, inspection, and use, and carry out quality control with full participation, It is better to ensure that the radar level sensor produced is always of consistent quality and excellent quality.
There is no negative feedback about the product quality and usability.
