PRODUCT DESCRIPTION

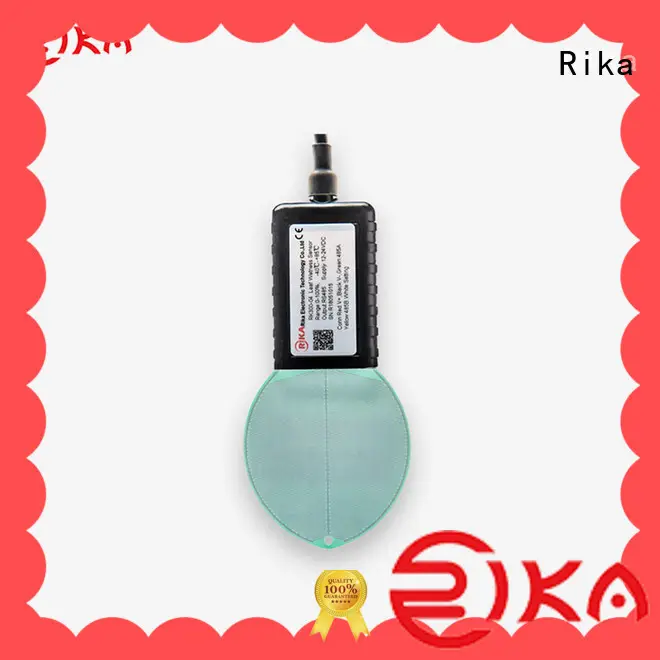

RK300-04 Leaf Wetness Sensor is an important tool for observing and studying leaf wetness, preventing pests and diseases, and spraying sprinkler control. The accurate measurement of the moisture content of the leaf surface can be used to monitor the trace moisture or ice crystal residue. The shape of the sensor is simulated by the blade, which can simulate the characteristics of the leaf surface, so that it can reflect the situation of the leaf surface more accurately. By measuring the variation of the dielectric constant of the upper surface of the blade, the mist, water vapor and ice can be measured.

top rated noise sensor supplier for air pressure monitoring-1

top rated noise sensor supplier for air pressure monitoring-2

High sensitivity.

top rated noise sensor supplier for air pressure monitoring-3

LCD display optional.

top rated noise sensor supplier for air pressure monitoring-4

Temperature compensation.

top rated noise sensor supplier for air pressure monitoring-5

Fast response.

top rated noise sensor supplier for air pressure monitoring-6

Multiple signal output options.

top rated noise sensor supplier for air pressure monitoring-7

Excellent stability.

SPECIFICATIONS

Item	Technical Specification
Range	Wetness: 0-100% Temperature: -40-+80℃
Accuracy	Wetness: ±3%(0-50%),±5%(>50%) Temperature: ±0.5℃
Repeatability	<±3%fs
Temperature Drift	≤0.2%FS/℃
Supply	5VDC,12-24VDC
Output	4-20mA,0-5V,0-2V,RS485
IP Rating	IP65
Operating Temperature	-40℃-+80℃
Dimension	6513145mm
Storage	-40-70℃@20%-90%RH

DIMENSION & MOUNTING

top rated noise sensor supplier for air pressure monitoring-8

When installing the sensor to simulate the face of the grid part of the face, roughly the same angle with the surrounding surface and the ground. Such as foliar fertilization spray testing, can be installed in the plant height of different height, to ensure that the plant close to the ground effect of foliar fertilization.

PRODUCT DETAILS

top rated noise sensor supplier for air pressure monitoring-9

top rated noise sensor supplier for air pressure monitoring-10 Product Principle

top rated noise sensor supplier for air pressure monitoring-11

top rated noise sensor supplier for air pressure monitoring-12 Multiple Output Optional

top rated noise sensor supplier for air pressure monitoring-13

top rated noise sensor supplier for air pressure monitoring-14 RS485 Or RS232 Output

top rated noise sensor supplier for air pressure monitoring-15

top rated noise sensor supplier for air pressure monitoring-16 Product Features

PRODUCT APPLICATION

top rated noise sensor supplier for air pressure monitoring-17

Leaf wetness monitoring

top rated noise sensor supplier for air pressure monitoring-18

Agriculture irrigation
